Parts List
Key:
Instock.
Nilstock.
Contact MRE.

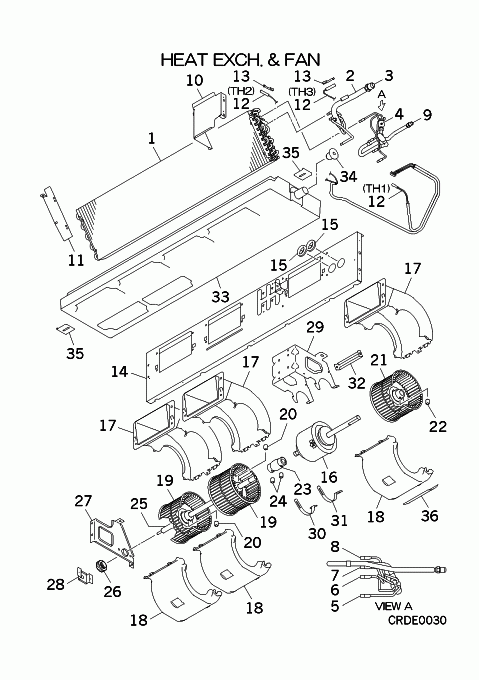

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Contact
PJH311A001C
HEAT EXCH(AIR)
Contact
[1-13]
Contact
RJJ301A002A
HEAT EXCH ASSY(AIR
Contact
[2-3]
Contact
RJJ315D001A
HEADER ASSY,GAS
Contact
[3]
In Stock
SSA323F088B
UNION(SLD)
[4]
Contact
RSA315A004
DISTRIBUTOR
Contact
[4-9]
Contact
RJJ315A001A
DISTRIBUTOR ASSY
Contact
[5]
Contact
RJJ315B001
CAPILLARY
Contact
[6]
Contact
RJJ315B002
CAPILLARY
Contact
[7]
Contact
RJJ315B003
CAPILLARY
Contact
[8]
Contact
RJJ315B004
CAPILLARY
Contact
[9]
In Stock
SSA323F088A
UNION(SLD)
[10]
Contact
PJH141A003
PLATE,BAFFLE(R)
Contact
[11]
Contact
PJH141A004
PLATE,BAFFLE(L)
Contact
[12]
In Stock
SSA551A212B

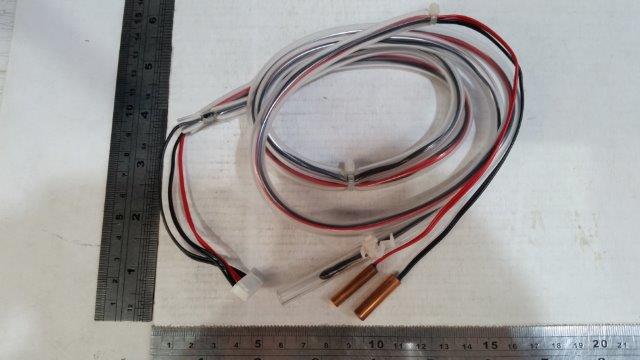

SENSOR ASSY
Notes: TH1,TH2,TH3, Includes 1x Return air sensor & 2x heat exchanger coil/refrigerant sensors Show Image
[13]
In Stock
RKJ941F001
SPRING LEAF
[14-15]
Contact
PJH141A001A
PLATE ASSY,BAFFLE
Contact
[15]
In Stock
S751W25X
GROMMET
[16]
In Stock
SSA512T143C
MOTOR DC
[17]
In Stock
PJH433B001
CASING(U)
[18]
In Stock
PJH433B003
CASING ASSY(L)
[19-20]
In Stock
SSA431D095A
IMPELLER
Notes: Fan Barrel / Fan Scroll
[20]
Contact
SSA912F015
SET,SCREW(SCH-CP)
Contact
[21-22]
In Stock
SSA431D096A
IMPELLER
[22]
Contact
SSA912F015
SET,SCREW(SCH-CP)
Contact
[23-24]
In Stock
PJH272A001
COUPLING
[24]
Contact
SSA912F015
SET,SCREW(SCH-CP)
Contact
[25]
Contact
PJH271A002A
SHAFT
Contact
[26]
In Stock
SSA923C136
BEARING, PLANE
[27]
Contact
PJH116A005
BRACKET(B_B)
Contact
[28]
In Stock
PJH116A006
BRACKET (BEARING)
[29]
In Stock
PJH116A003
BRACKET MOTOR
[30]
In Stock
PJG116A063
BRACKET(MOTOR)
[31]
In Stock
PFA116A207H
BRACKET
[32]
In Stock
PJG119A002
PLATE
[33-34]
Out of Stock
PJH454A001A
DRAIN PAN
[34]
In Stock
SSA326A049
PLUG
[35]
Contact
PJH116A013
BRACKET ASSY(PAN)
Contact
[36]
In Stock
PSA011H046
LABEL,NOTICE
