Parts List
Key:
Instock.
Nilstock.
Contact MRE.

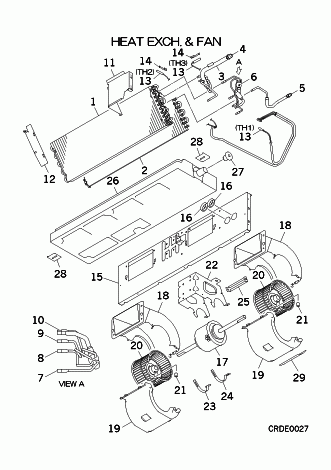

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Contact
PJH311A001B
HEAT EXCH(AIR)
Contact
[1-14]
In Stock
RJJ301A001
HEAT EXCH A
[2]
Contact
RJJ311A001
HEAT EXCH(AIR)
Contact
[3-4]
Contact
RJJ315D001
HEADER ASSY,GAS
Contact
[4]
In Stock
SSA323F088
UNION(SLD)
[5]
In Stock
SSA323F088A
UNION(SLD)
[6]
Contact
RSA315A004
DISTRIBUTOR
Contact
[6-10]
Contact
RJJ315A001
DISTRIBUTOR ASSY
Contact
[7]
Contact
RJJ315B001
CAPILLARY
Contact
[8]
Contact
RJJ315B002
CAPILLARY
Contact
[9]
Contact
RJJ315B003
CAPILLARY
Contact
[10]
Contact
RJJ315B004
CAPILLARY
Contact
[11]
Contact
PJH141A003
PLATE,BAFFLE(R)
Contact
[12]
Contact
PJH141A004
PLATE,BAFFLE(L)
Contact
[13]
In Stock
SSA551A212B
SENSOR ASSY
Notes: TH1,TH2,TH3, Includes 1x Return air sensor & 2x heat exchanger coil/refrigerant sensors Show Image
[14]
In Stock
RKJ941F001
SPRING LEAF
[15-16]
Contact
PJH141A001
PLATE ASSY,BAFFLE
Contact
[16]
In Stock
S751W25X
GROMMET
[17]
In Stock
SSA512T143D
MOTOR DC
[18]
In Stock
PJH433B001
CASING(U)
[19]
In Stock
PJH433B003
CASING ASSY(L)
[20-21]
In Stock
SSA431D096A
IMPELLER
[21]
Contact
SSA912F015
SET,SCREW(SCH-CP)
Contact
[22]
In Stock
PJH116A003
BRACKET MOTOR
[23]
In Stock
PJG116A063
BRACKET(MOTOR)
[24]
In Stock
PFA116A207H
BRACKET
[25]
In Stock
PJG119A002
PLATE
[26-27]
In Stock
PJH454A001
PAN ASSY,DRAIN
[27]
In Stock
SSA326A049
PLUG
[28]
Contact
PJH116A013
BRACKET ASSY(PAN)
Contact
[29]
In Stock
PSA011H046
LABEL,NOTICE
