SRK63ZEA-S PANEL AND FAN ASSY

Name: SRK63ZEA-S PANEL AND FAN ASSY
SKU: SRK63ZEA-S PANEL AND FAN ASSY
Availability: InStock

SRK63ZEA-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

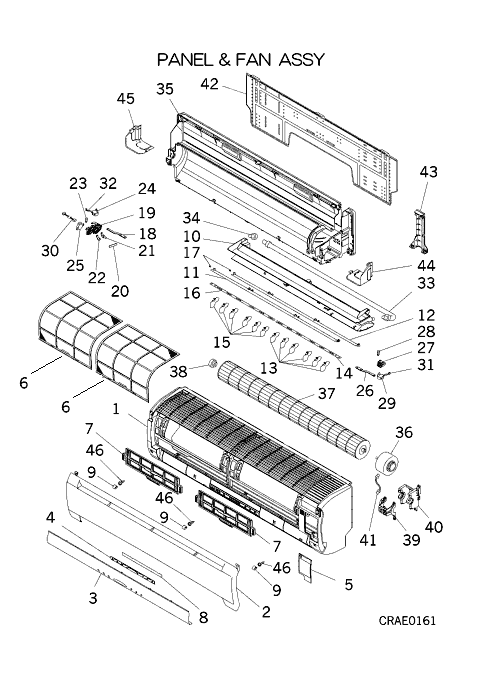

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKW122A200

PANEL, FRONT

[1-9] In Stock

RKW102A200

PANEL ASSY

Notes: FRONT PANEL ASSEMBLY

[2] Out of Stock

RKW435A201

PANEL,AIR I

Substitute: OUT OF PRODUCTION Notes: AIR INLET PANEL / FILTER COVER - PANEL YOU LIFT UP TO ACCESS FILTERS

[3] In Stock

RKW133A200

PLATE,DISPLAY

[4] In Stock

RKW133A201

LENS

Show Image

[5] In Stock

RKW132A203

LID(TERMINA

Show Image

[6] In Stock

RKW437A200

FILTER, AIR

Notes: 1pc ONLY, SOLD INDIVIDUALLY (Model uses 2) Show Image

[7] In Stock

RKW129A213

HOLDER, FILTER

Notes: 1pc ONLY, FILTER HOLDER ONLY - FILTERS FOR FILTER HOLDER IN "HEAT EXCH. AND CONTROL" Show Image

[8] In Stock

RKW133A202

FILM,CONCEA

Show Image

[9] In Stock

RKW129A214

CAP

Show Image

[10] In Stock

RKW435A202AC

GRILLE ASSY, AIR OUT

Notes: DRAIN PAN ASSY, INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS

[10-34] In Stock

RKW435A202AC

GRILLE ASSY, AIR OUT

Notes: DRAIN PAN ASSY, INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS

[11] In Stock

RKW436A200

FLAP(A)

Notes: UPPER, UPPER HORIZONTAL FLAP

[12] In Stock

RKW436A201AA

FLAP(B)

Notes: LOWER, LOWER HORIZONTAL FLAP / LENGTH 100.5CM Show Image

[13] In Stock

RKW436A203

LOUVER

Notes: 1pc ONLY, 1pc ONLY, CONTROLS AIR LEFT TO RIGHT Show Image

[13-14] In Stock

RKW436A202

LOUVER ASSY (R)

Notes: INCLUDES 6x VERTICAL LOUVER BLADES & CONNECTING PLATE - RIGHT SIDE

[14] Out of Stock

RKW129A209

PLATE,CONNECTING

Substitute: OUT OF PRODUCTION Notes: NOT AVAILABLE SEE 'LOUVER ASSY'

[15] In Stock

RKW436A203

LOUVER

Notes: 1pc ONLY, 1pc ONLY, CONTROLS AIR LEFT TO RIGHT Show Image

[15-16] In Stock

RKW436A202A

LOUVER ASSY (L)

Notes: INCLUDES 6x VERTICAL LOUVER BLADES AND A CONNECTING PLATE - LEFT SIDE

[16] Out of Stock

RKW129A209

PLATE,CONNECTING

Substitute: OUT OF PRODUCTION Notes: NOT AVAILABLE SEE 'LOUVER ASSY'

[17] In Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[18] In Stock

RKW129A208

JOINT(L)

Show Image

[18-25] In Stock

RKW144A200

LINK ASSY

[19] In Stock

RKW129A210

BRACKET,MOTOR(A)

Notes: LENGTH 8.5CM Show Image

[20] In Stock

RKW144A201

LINK

Show Image

[21] In Stock

RKW144A202

CRANK(A)

Show Image

[22] In Stock

RKW144A203

CRANK(B)

Notes: LINKAGE BETWEEN FLAP AND UP/DOWN LOUVER MOTOR HOUSING Show Image

[23] In Stock

RKW144A204

CRANK(C)

Show Image

[24] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[25] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR FLAP, Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[26] In Stock

RKW129A207

JOINT(R)

Show Image

[26-29] In Stock

RKW144A205

CRANK ASSY

Notes: includes ,JOINT R, BRACKET, CRANK C, STEPPING MOTOR - right side Show Image

[27] In Stock

RKW129A211

BRACKET

Show Image

[28] In Stock

RKW144A204

CRANK(C)

Show Image

[29] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[30] In Stock

RKS504A100H

HARNESS ASSY

Notes: FOR FLAP MOTOR, HARNESS FOR FLAP MOTOR Show Image

[31] In Stock

RKS504A100C

HARNESS ASSY

Notes: FOR LOUVER MOTOR(RIGHT)

[32] In Stock

RKS504A100J

HARNESS ASSY

Notes: FOR LOUVER MOTOR(LEFT), FOR LOUVER MOTOR (LEFT) - HARNESS FOR LEFT LOUVER MOTOR Show Image

[33] In Stock

SSA423A102A

DRAIN HOSE

[34] In Stock

SSA326A043

PLUG

Notes: LENGTH 3.5CM Show Image

[35] In Stock

RKW111A200

BASE ASSY

[36] In Stock

SSA512T118A

MOTOR, DC

Notes: FOR IMPELLER, COMES WITH HARNESS Show Image

[37] In Stock

SSA431G043A

IMPELLER

Notes: FAN BARREL / FAN SCROLL - INDOOR Show Image

[38] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[39] In Stock

RKW129A201

BRACKET,MOT

Show Image

[40] In Stock

RKW129A202

BRACKET,MOT

[41] In Stock

RKS504A601C

HARNESS ASSY

Notes: FOR FAN MOTOR

[42] In Stock

RKW032A200A

PLATE , INSTALLATION

Notes: BACKING PLATE

[43] In Stock

RKW129A212

COVER(PIPE)

Show Image

[44] In Stock

RKW132A200

LID(R)

Show Image

[45] In Stock

RKW132A201

LID(L)

Show Image

[46] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image
