SRK60ZJX-S1/1 HEAT EXCH. AND CONTROL

Name: SRK60ZJX-S1/1 HEAT EXCH. AND CONTROL
SKU: SRK60ZJX-S1/1 HEAT EXCH. AND CONTROL
Availability: InStock

SRK60ZJX-S1/1 HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKY301A005S

HEAT EXCH ASSY (AIR)

[2-4] Contact

RKY321A001A

PIPE ASSY

Contact

[3] In Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[4] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[5] In Stock

RKY142A001

BOX,CONTROL(R)

Notes: !RIGHT, RIGHT

[6] Contact

RKY142A002

BOX,CONTROL(L)

Contact

Notes: !LEFT, LEFT

[7] In Stock

RKY132A003

LID,CONTROL

Notes: !, LENGTH 22CM Show Image

[8] Contact

RKY129A015

HOLDER,SENSOR

Contact

[9] Contact

RKY129A014

COVER,BEND

Contact

[10] In Stock

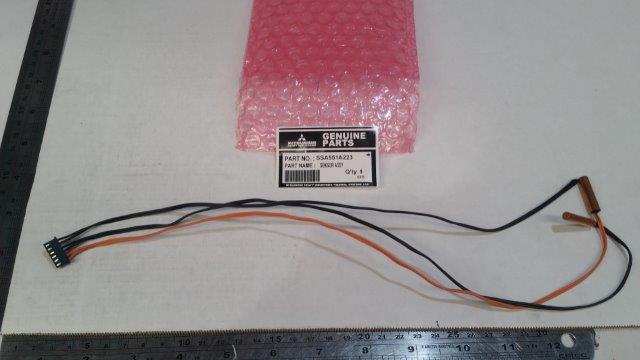

SSA551A223

SENSOR ASSY

Notes: THI-R1,THI-R2,THI-A Show Image

[11] In Stock

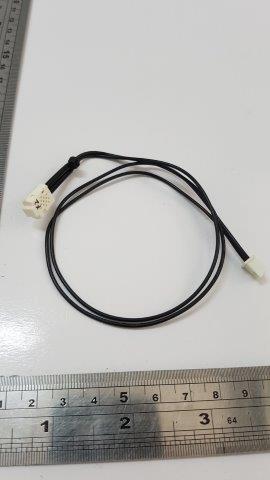

SSA551B017A

SENSOR (HUMIDITY)

Show Image

[12] In Stock

RKY504A001

HARNESS ASSY

Show Image

[13] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T1, T2 Show Image

[14-16] In Stock

RKY505A001DH

PWB ASSY

Notes: Main PWB Show Image

[15] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[16] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F1 3.15A, 3.15A Show Image

[17] In Stock

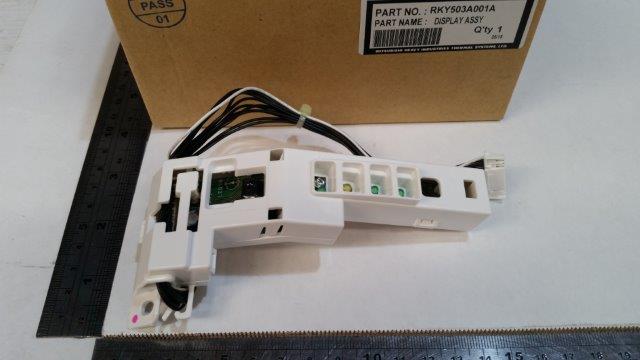

RKY503A001A

DISPLAY ASSY

Notes: RECEIVER/DISPLAY BOARD ASSY Show Image

[18] In Stock

RKY505A003A

PWB, DISPLAY

Show Image

[19] In Stock

PSA941F001

SPRING LEAF

Notes: 1pc ONLY Show Image

[20-23] In Stock

RKY129A032B

DUCT UNIT ASSY

Notes: !, mechanism that opens and shuts the front Air Inlet Panel / Filter Cover Show Image

[21] In Stock

SSA523J031

SWITCH

Notes: LIMIT SWITCH

[22] In Stock

RKY504A005

HARNESS ASSY

[23] In Stock

SSA512T158

MOTOR, STEPPING

Notes: Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[24] Contact

RKY008A004D

PARTS,STANDARD

Contact

Notes: !

[25] In Stock

RKT437A005C

FILTER,LIGHT

Notes: PHOTOCATALYTIC/DEODORIZER - ORANGE COLOR - Photocatalytic washasble Deodorizing Filter Show Image

[26] In Stock

RKT437A801

FILTER (BIO)

Notes: ALLERGEN FILTER - ORANGE WAVEY PATTERN Show Image

[27] In Stock

RKN032A002B

HOLDER

Show Image

[28] Contact

RKY012A006C

MANUAL,INSTRUCTION

Contact

[29] In Stock

RKX502A007C

REMOTE CONTROL

Notes: Holder RKN032A002B

[30] Contact

RWA011F009P

LABEL,MODEL NAME

Contact

Notes: !

SKU: SRK60ZJX-S1/1 HEAT EXCH. AND CONTROL Category: Uncategorised
