SRK56HAA HEAT EXCH. AND CONTROL

Name: SRK56HAA HEAT EXCH. AND CONTROL
SKU: SRK56HAA HEAT EXCH. AND CONTROL
Availability: InStock

SRK56HAA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

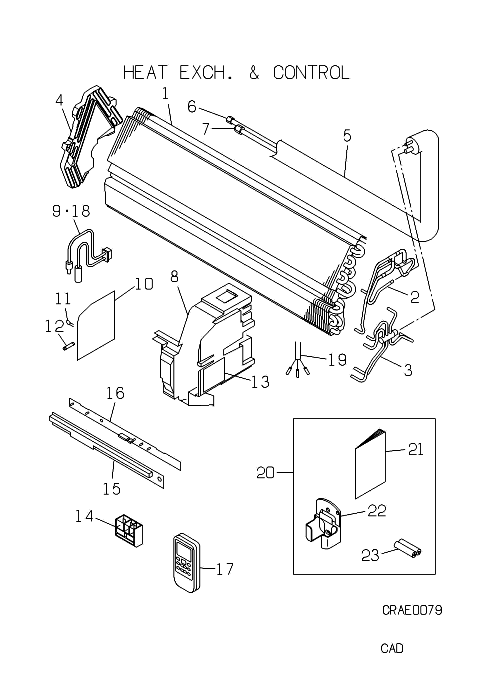

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact

RKS301A801

HEAT EXCH

Contact

[1-7] Contact

RKS301A800

HEAT EXCH

Contact

[2] Contact

RKS321A811

PIPE ASSY

Contact

[3] Contact

RKS315D800

HEADER ASSY

Contact

[4] Contact

RKS129A604

BRACKET

Contact

[5-7] Contact

RKS321A650B

PIPE ASSY

Contact

[6] Contact

SSA323F082

UNION

Contact

Notes: GAS

[7] Contact

SSA323F082B

UNION(SLD)

Contact

Notes: GAS, FOR GAS

[8] Contact

RKT142A001

BOX CONT

Contact

[9] In Stock

SSA551A163F

SENSOR

Notes: INCL SENSOR ROOM TEMP and HEAT EXCH, INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image

[10-12] In Stock

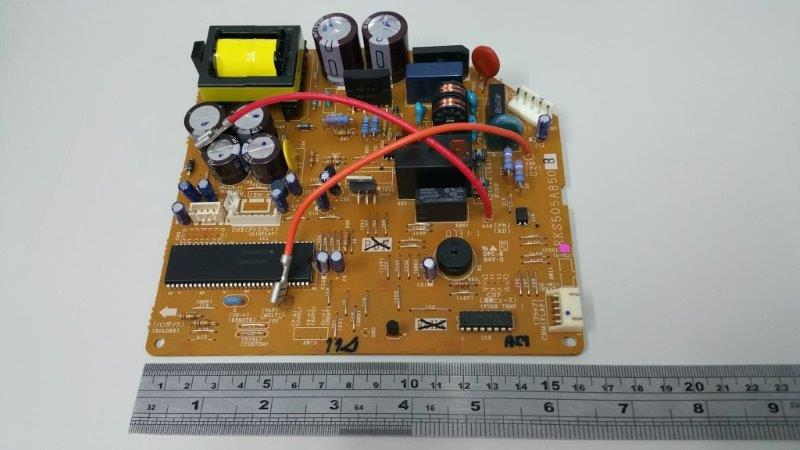

RKS505A850B

PWB ASSY

Show Image

[11] In Stock

SSA555B003A

VARISTOR

Show Image

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] Contact

RKS011G850

LABEL,WIRING

Contact

[14] In Stock

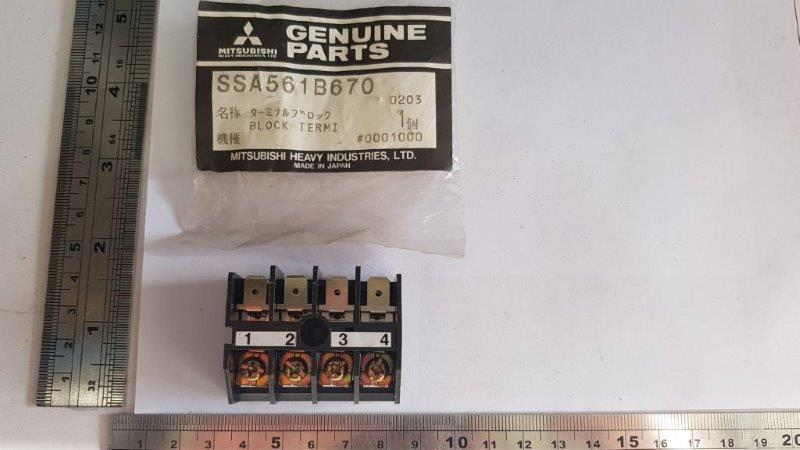

SSA561B670

BLOCK,TERMI

Notes: T2 Show Image

[15] Out of Stock

RKS129A901A

FRAME

Substitute: RKS503A950B

[15-16] Out of Stock

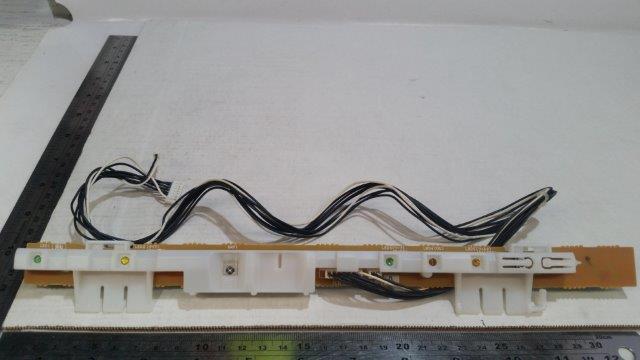

RKS503A950B

DISPLAY

Substitute: RKS505A951A Show Image

[16] Out of Stock

RKS505A951A

PWB DISPLAY

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[17] Out of Stock

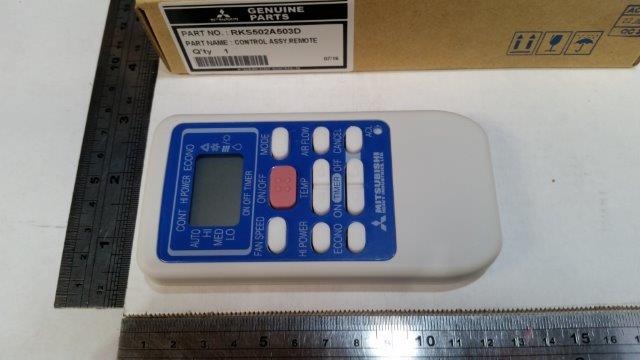

RKS502A503D

REMOCON

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION Show Image

[18] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[19] Contact

RKS504A019

HARNESS

Contact

[20] Contact

RWA008A055

PARTS STAND

Contact

[22] In Stock

RKN032A002B

HOLDER

Show Image

[23] Contact

RSA549A005

BUTTERY

Contact

Substitute: RKH549A500B Notes: RSA549A001 ALSO SUB

[24] Contact

RSA011F375B

LABEL,MODEL NAME

Contact

SKU: SRK56HAA HEAT EXCH. AND CONTROL Category: Uncategorised
