Parts List
Key:
Instock.
Nilstock.
Contact MRE.

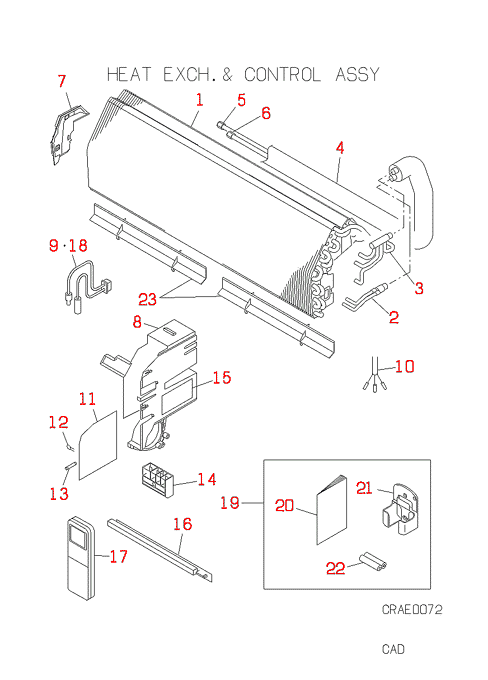

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-3]
Contact
RKS301A207
HEAT EXCH
Contact
[1-6]
Contact
RKS301A404B
HEAT EXCH
Contact
[2]
Contact
RKS321A201
PIPE ASSY
Contact
[3]
Contact
RKS315D202
HEADER
Contact
[4-6]
Contact
RKS321A412
PIPE
Contact
[5]
Contact
SSA323F084
UNION
Contact
[6]
Contact
SSA323F084B
UNION
Contact
[7]
Contact
RKS129A203
BRACKET
Contact
[8]
Contact
RKS142A200
CONT BOX
Contact
[9]
In Stock
SSA551A163J
SENSOR
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)/ LENGTH 56CM Show Image
[10]
Contact
RKS504A014
HARNESS
Contact
[11-13]
Out of Stock
RKS505A800C
PWB ASSY
Substitute: OUT OF PRODUCTION
[12]
Contact
SSA555B003B
VARISTOR
Contact
[13]
In Stock
SSA564A132
FUSE(CURRENT)
[14]
Contact
SSA561B670A
BLOCK,TERMINAL
Contact
[15]
Contact
RKS011G800A
LABEL,WIRING
Contact
[16]
Out of Stock
RKS503A400B
DISPLAY
Notes: RECEIVER BOARD WITH WIRING HARNESS Show Image
[17]
In Stock
RKN502A500A

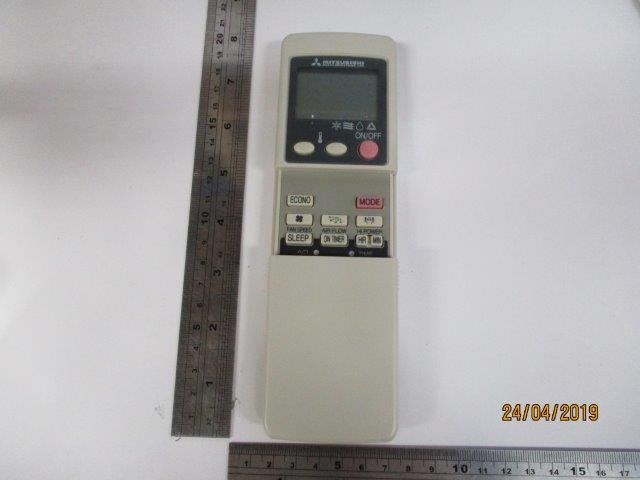

REMOTE CONTROL
[18]
In Stock
RKJ941F001
SPRING LEAF
[19]
Contact
RWA008A047D
PARTS,STANDARD
Contact
[20]
Contact
RWA012A176
MANUAL,INSTRUCTION
Contact
[21]
In Stock
RKN032A002A
PLATE REMOC
[22]
Contact
RSA549A005
BUTTERY
Contact
Substitute: RKH549A500B Notes: RSA549A001 ALSO SUB
[23]
Contact
RKS129A213
PLATE
Contact
[24]
Contact
RSA011F363D
LABEL,MODEL NAME
Contact
