SRK50ZSXA-W/A PANEL AND FAN ASSY

Name: SRK50ZSXA-W/A PANEL AND FAN ASSY
SKU: SRK50ZSXA-W/A PANEL AND FAN ASSY
Availability: InStock

SRK50ZSXA-W/A PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

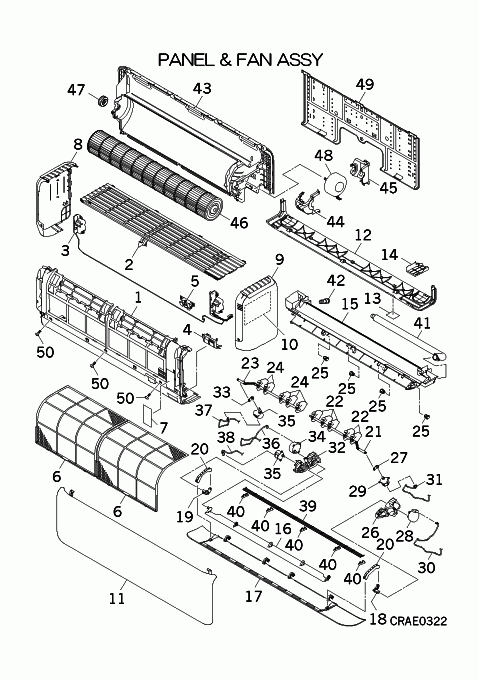

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RLF122A200C

PANEL,FRONT

[1-7] In Stock

RLF102A201Z

PANEL ASSY, FRONT

[2] In Stock

RLF435A203B

GRILLE,AIR IN(TOP)

[3] In Stock

RLF142A203

BOX ASSY,GEAR

Show Image

[4] Contact

RLF133A200C

ORNAMENT ASSY

Contact

[5] Contact

RLF129A213C

SENSOR ASSY

Contact

Notes: Motion Sensor - Infrared Motion detector

[6] In Stock

RLF437A200

FILTER,AIR

Notes: W355XH353( 2), W355”H353(t2) Show Image

[7] Contact

RSA011H056

LABEL,NOTICE

Contact

[8] In Stock

RLF123A202H

PANEL ASSY,SIDE(L)

[9-10] In Stock

RLF123A200M

PANEL ASSY,SIDE(R)

[10] Contact

RLF011G200

LABEL,WIRING

Contact

Notes: !

[11] In Stock

RLF435A202V

PANEL ASSY, AIR IN

Notes: FILTER ACCESS PANEL & COMES WITH INSIDE FLAP

[12-13] In Stock

RLF125A200J

PANEL ASSY, BOTTOM

Notes: LENGTH 92CM

[13] Contact

RSA011H054

LABEL,NOTICE

Contact

[14] Out of Stock

RLA129A023

COVER ASSY(TB)

Show Image

[15] In Stock

RLF435A201

GRILLE,AIR OUTLET

Notes: !, DRAIN PAN ONLY

[15-42] In Stock

RLF435A200H

GRILLE ASSY,AIR OUT

Notes: includes all louvers, all stepping/louver motors & all stepping motor wiring harnesses

[16] In Stock

RLF436A200A

FLAP(U)

Notes: UPPER

[17] In Stock

RLF436A201G

FLAP ASSY(L)

Notes: LOWER

[18] In Stock

RLF144A200A

CRANK,FLAP(R)

Show Image

[19] In Stock

RLF144A201A

CRANK,FLAP(L)

Show Image

[20] In Stock

RLF144A202

LINK(FLAP)

Show Image

[21] In Stock

RLF129A207

PLATE,CONNECTING(R)

Notes: ! Show Image

[21-22] In Stock

RLF436A204

LOUVER ASSY(R)

Notes: Right side Louver assembly - 5 Vertical blades & 1 connecting plate Show Image

[22] In Stock

RLF436A206

LOUVER

Notes: !, Individual Louver Fin - Sold individually Show Image

[23] Contact

RLF129A208

PLATE,CONNECTING(L)

Contact

Notes: !

[23-24] In Stock

RLF436A205

LOUVER ASSY(L)

Notes: Left side Louver assembly - 5 Vertical blades & 1 connecting plate Show Image

[24] In Stock

RLF436A206

LOUVER

Notes: !, Individual Louver Fin - Sold individually Show Image

[25] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[26] In Stock

RLF129A209

BRACKET,MOTOR(R)

Notes: ! Show Image

[26-31] In Stock

RLF129A203

BRACKET ASSY(R)

Show Image

[27] In Stock

RLB144A005

CRANK(C)

Notes: !, LENGTH 2CM Show Image

[28] In Stock

SSA512T103

MOTOR,STEPPING

Notes: FOR FLAP Show Image

[29] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(RIGHT), Louver/Flap/Stepping motor Show Image

[30] In Stock

RLF504A200

HARNESS ASSY

Notes: FOR FLAP MOTOR, FOR FLAP MOTOR/ LENGTH 35CM - yellow/orange plug Show Image

[31] In Stock

RLF504A200A

HARNESS ASSY

Notes: FOR LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR(RIGHT)/ LENGTH 32.5CM - red plug Show Image

[32] In Stock

RLF129A210

BRACKET,MOTOR(L)

Notes: ! Show Image

[32-38] In Stock

RLF129A204

BRACKET ASSY(L)

[33] In Stock

RLB144A005

CRANK(C)

Notes: !, LENGTH 2CM Show Image

[34] In Stock

SSA512T103

MOTOR,STEPPING

Notes: FOR FLAP Show Image

[35] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT),FLAP, Louver/Flap/Stepping motor Show Image

[36] In Stock

RLF504A200B

HARNESS ASSY

Notes: FOR FLAP MOTOR, FOR FLAP MOTOR/ LENGTH 118.5CM - green plug Show Image

[37] In Stock

RLF504A200C

HARNESS ASSY

Notes: FOR LOUVER MOTOR(LEFT), FOR LOUVER MOTOR(LEFT)/ LENGTH 113.5CM - black plug Show Image

[38] In Stock

RLF504A200D

HARNESS ASSY

Notes: FOR FLAP MOTOR, FOR FLAP MOTOR/ LENGTH 100.5CM - blue plug Show Image

[39] In Stock

RLF131A200

GUARD,FAN

[40] In Stock

RLF129A205

MOUNT(GUARD,FAN)

Show Image

[41] In Stock

SSA423A114

HOSE,DRAIN

[42] In Stock

SSA326A047

PLUG

Notes: !, Plug for condensate/drain tray.

[43] In Stock

RLF111A200F

BASE ASSY

[44] In Stock

RLF129A118

CASE ASSY(U)

Notes: Upper Fan motor housing Show Image

[45] In Stock

RLF129A102

CASE ASSY(L)

Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing

[46] In Stock

SSA431G054

IMPELLER

Notes: FAN BARREL

[47] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[48] In Stock

SSA512T126A

MOTOR DC

Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image

[49] In Stock

RLF032A200

PLATE,INSTALLATION

Notes: MOUNTING BRACKET / INSTALLATION PLATE

[50] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image
