SRK50ZS-S/E PANEL AND FAN ASSY

Name: SRK50ZS-S/E PANEL AND FAN ASSY
SKU: SRK50ZS-S/E PANEL AND FAN ASSY
Availability: InStock

SRK50ZS-S/E PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

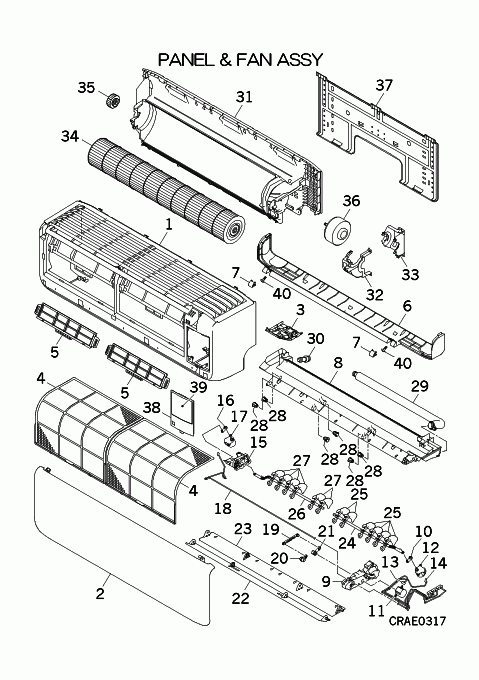

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLF122A102F

PANEL ASSY, FRONT

Notes: !

[1-5] In Stock

RLF102A100D

PANEL ASSY, FRONT

Notes: includes parts 1,2,3,4,5

[2] In Stock

RLF435A101C

PANEL ASSY,AIR IN

Notes: AIR INLET PANEL / FILTER COVER for HINGE/CLIPS: Left = RLF129A109 / Right = RLF129A108

[3] In Stock

RLF133A100C

PLATE ASSY, ORNAMENT

Notes: MANUAL ON / OFF BUTTON WITH GREY & WHITE PIECES OF PLASTIC Show Image

[4] In Stock

RLF437A100

FILTER,AIR

Notes: W342.5XH346.5( 2), 1pc only. LARGER/DUST FILTER. Sold Individually./ LENGTH 40CM

[5] In Stock

RKX129A014

HOLDER,FILTER

Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY

[6] In Stock

RLF129A100A

PANEL, BOTTOM

Notes: LENGTH 85.5CM

[6-7] In Stock

RLF102A101H

PANEL ASSY, BOTTOM

[7] In Stock

RLF129A110B

CAP

Notes: LENGTH 2.1CM Show Image

[8-30] In Stock

RLF435A104B

GRILLE OUT, ASSY

Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS

[9] In Stock

RLF129A113

BRACKET,MOTOR(R)

Notes: ! Show Image

[9-14] In Stock

RLF129A111

BRACKET ASSY(R)

Show Image

[10] In Stock

RKW144A204

CRANK(C)

Notes: ! Show Image

[11] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP, Louver/Flap/Stepping motor Show Image

[12] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(RIGHT), Louver/Flap/Stepping motor Show Image

[13] In Stock

RSA504A031D

HARNESS ASSY

Notes: FOR FLAP MOTOR, UP/DOWN FLAP WIRING HARNESS Show Image

[14] In Stock

RSA504A031F

HARNESS ASSY

Notes: FOR LOUVER MOTOR(RIGHT), RIGHT SIDE LOUVER MOTOR WIRING HARNESS Show Image

[15] In Stock

RLF129A114

BRACKET,MOTOR(L)

Notes: ! Show Image

[15-18] In Stock

RLF129A112

BRACKET ASSY(L)

Show Image

[16] In Stock

RKW144A204

CRANK(C)

Notes: ! Show Image

[17] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT), Louver/Flap/Stepping motor Show Image

[18] In Stock

RSA504A031G

HARNESS ASSY

Notes: FOR LOUVER MOTOR(LEFT), LEFT SIDE WIRING HARNESS FOR LOUVER MOTOR Show Image

[19] In Stock

RLF144A101

LINK

Notes: !, LENGTH 6.5CM Show Image

[19-21] In Stock

RLF144A100

LINK ASSY

Notes: LENGTH 9.7CM Show Image

[20] In Stock

RLF144A102

CRANK U

Notes: ! Show Image

[21] In Stock

RLF144A103

CRANK L

Notes: !, LENGTH 3CM Show Image

[22] In Stock

RLF436A100A

FLAP(U)

Notes: UPPER, UPPER HORIZONTAL FLAP / LENGTH 66CM

[23] In Stock

RLF436A101A

FLAP(L)

Notes: LOWER, LOWER HORIZONTAL FLAP

[24] Contact

RLF129A115

PLATE,CONNECTING(R)

Contact

Notes: !

[24-25] In Stock

RLF436A102

LOUVER ASSY (RIGHT)

Notes: Includes 6 louver blades/fins and connecting rod - RIGHT side only Show Image

[25] In Stock

RLF436A104

LOUVER

Notes: ! Show Image

[26] Contact

RLF129A116

PLATE,CONNECTING(L)

Contact

Notes: !

[26-27] In Stock

RLF436A103

LOUVER ASSY (LEFT)

Notes: Includes 6 louver blades/fins and connecting rod - LEFT side only Show Image

[27] In Stock

RLF436A104

LOUVER

Notes: ! Show Image

[28] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[29] In Stock

SSA423A114

HOSE,DRAIN

[30] In Stock

SSA326A047

PLUG

Notes: !, Plug for condensate/drain tray.

[31] In Stock

RLF111A100C

BASE ASSY

[32] In Stock

RLF129A118

CASE ASSY(U)

Notes: Upper Fan motor housing Show Image

[33] In Stock

RLF129A102

CASE ASSY(L)

Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing

[34] In Stock

SSA431G053

IMPELLER

Notes: BARRELL FAN Show Image

[35] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[36] In Stock

SSA512T127B

MOTOR,DC

Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image

[37] In Stock

RLF032A100

PLATE,INSTALLATION

Notes: MOUNTING/INSTALLATION/BACKING PLATE

[38-39] In Stock

RLF132A101

LID ASSY(TERMINAL)

Notes: LENGTH 16.5CM. PART IS COLOUR BLACK. Show Image

[39] Contact

RSA011H047

LABEL,NOTICE

Contact

[40] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image
