SRK501CENF-A HEAT EXCH. AND CONTROL

SRK501CENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

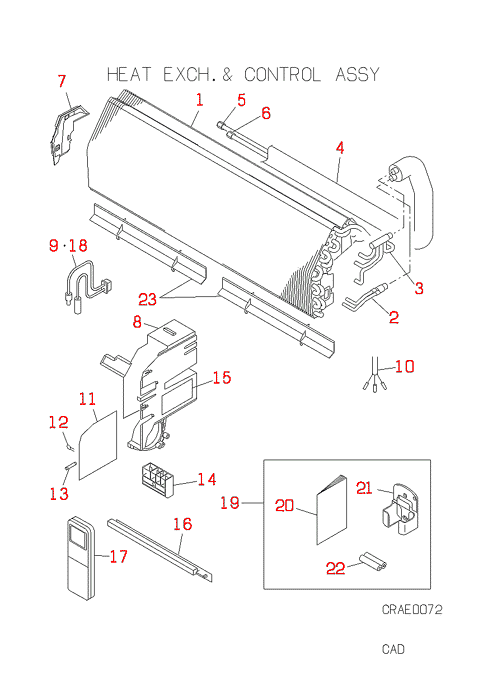

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
RKS301A207
HEAT EXCH
Contact
Substitute: RKS301A206
[1-6] Contact
RKS301A404B
HEAT EXCH
Contact
[2] Contact
RKS321A201
PIPE ASSY
Contact
[3] Contact
RKS315D202
HEADER
Contact
[4-6] Contact
RKS321A412
PIPE
Contact
[5] Contact
SSA323F084
UNION
Contact
Notes: LIQ.
[6] Contact
SSA323F084B
UNION
Contact
Notes: GAS
[7] Contact
RKS129A203
BRACKET
Contact
[8] Contact
RKS142A200
CONT BOX
Contact
[9] In Stock
SSA551A163J
SENSOR
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)/ LENGTH 56CM Show Image
SSA551A163J
[10] Contact
RKS504A014
HARNESS
Contact
[11-13] In Stock

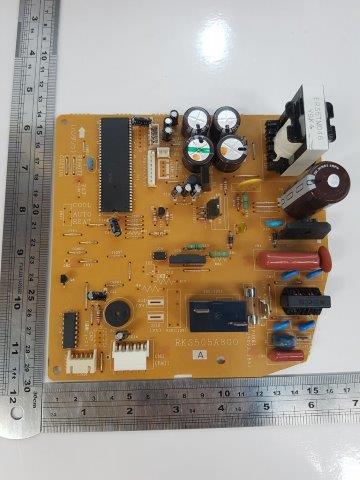

RKS505A800A
PWB ASSY
Show Image
RKS505A800A
[12] Contact
SSA555B003B
VARISTOR
Contact
Notes: Z
[13] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[14] Contact
SSA561B670A
BLOCK,TERMINAL
Contact
[15] Contact
RKS011G800A
LABEL,WIRING
Contact
[16] Out of Stock
RKS503A400B
DISPLAY
Notes: RECEIVER BOARD WITH WIRING HARNESS Show Image
RKS503A400B
[17] In Stock
RKN502A500A
REMOTE CONTROL
Show Image
RKN502A500A
[18] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[19] Contact
RWA008A047D
PARTS,STANDARD
Contact
[20] Contact
RWA012A176
MANUAL,INSTRUCTION
Contact
[21] In Stock
RKN032A002A
PLATE REMOC
Show Image
RKN032A002A
[22] Contact
RSA549A005
BUTTERY
Contact
Substitute: RKH549A500B Notes: RSA549A001 ALSO SUB
[23] Contact
RKS129A213
PLATE
Contact
[24] Contact
RSA011F363B
LABEL,MODEL NAME
Contact
SKU: SRK501CENF-A HEAT EXCH. AND CONTROL Category:
