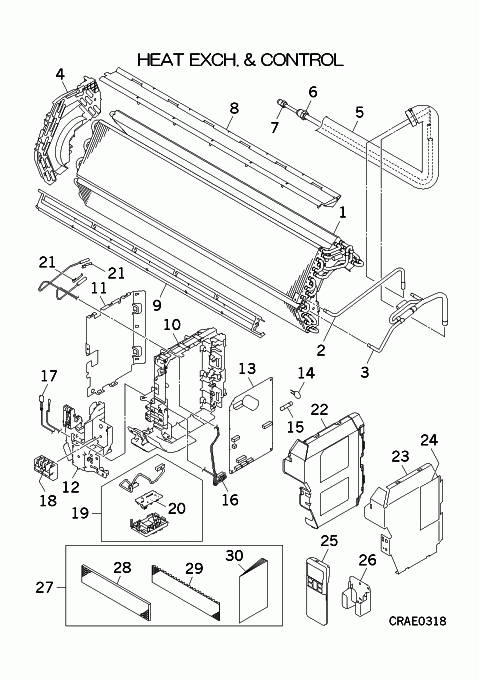

SRK35ZS-S HEAT EXCH. AND CONTROL

SRK35ZS-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] In Stock
RLF301A100S
HEAT EXCH ASSY
Notes: Indoor Heat exchanger coil assembly
[2] Contact
RLF321A008
PIPE
Contact
[3] Contact
RLF321A007
PIPE ASSY
Contact
[4] Contact
RLF129A119
BRACKET ASSY(L)
Contact
[5-7] Contact
RLF321A001
PIPE ASSY
Contact
[6] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[7] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[8] In Stock
RLF129A105
PLATE,BAFFLE
[9] In Stock
RLF129A106
SEAL
[10] Contact
RLF142A101
BOX,CONTROL
Contact
[10-11] In Stock
RLF142A100
BOX ASSY CONTROL
Show Image
RLF142A100
[11] Contact
RLF132A100
COVER,CONTROL
Contact
[12] Contact
RLF129A107
COVER,BEND
Contact
[13-15] Contact
RLF505A102B
PWB ASSY
Contact
[14] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[15] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[16] In Stock
SSA551A223P
SENSOR ASSY
Notes: 1x Room temp sensor, 2x Heat Exchanger sensors Show Image
SSA551A223P
[17] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[18] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[19] In Stock
RLF503A100
PWB, DISPLAY ASSY
Notes: COMES WITH HARNESS AND CASING Show Image
RLF503A100
[20] In Stock
RLF505A101
PWB, DISPLAY
Notes: BOARD ONLY - DOES NOT INCLUDE HARNESS - FOR HARNESS AND RECEVER = RLF503A100 Show Image
RLF505A101
[21] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[22] Contact
RLF132A104
LID,CONTROL
Contact
[22-24] Contact
RLF142A103
LID ASSY,CONTROL
Contact
[23] Contact
RLF142A105
LID,CONTROL
Contact
[24] Contact
RLF011G100A
LABEL,WIRING
Contact
[25] In Stock
RLA502A720
REMOTE CONTROL
Notes: REMOTE CONTROL HOLDER IS PART NUMBER RLA032A700. Does not come with holder.
[26] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: REMOTE CONTROL HOLDER/CRADLE Show Image
RLA032A700
[27] Contact
RLF008A100
PARTS,STANDARD
Contact
[28] In Stock
RKT437A005
FILTER,CLEAN
Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[29] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image
RKT437A801D
[30] Contact
RLF012A102
MANUAL,INSTRUCTION
Contact
[31] Contact
RLF011F101B
LABEL,MODEL NAME
Contact
