SRK35ZJX-S/C PANEL AND FAN ASSY

Name: SRK35ZJX-S/C PANEL AND FAN ASSY
SKU: SRK35ZJX-S/C PANEL AND FAN ASSY
Availability: InStock

SRK35ZJX-S/C PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

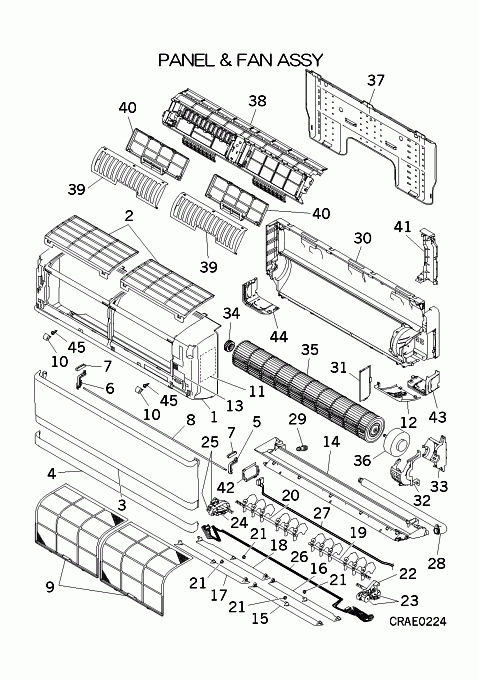

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKY122A002F

PANEL ASSY FRONT

[1-13] In Stock

RKY102A001F

PANEL ASSY

Notes: FRONT COVER ASSEMBLY

[2] In Stock

RKY435A003B

GRILLE, AIR IN (TOP)

[3-8] In Stock

RKY435A004F

PANEL ASSY, AIR IN

Notes: AIR INTLET PANEL ASSY / FILTER COVER

[4] In Stock

RKY435A007F

PANEL, ORNAMENT

[5] In Stock

RKY144A005

LINK A(R)

Notes: RIGHT Show Image

[6] In Stock

RKY144A006

LINK A(L)

Notes: LEFT

[7] In Stock

RKY144A007

LINK A

Show Image

[8] In Stock

RKY144A008

SHAFT

[9] In Stock

RKY437A001

FILTER

Notes: W348.5XH339(T2), RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY Show Image

[10] In Stock

RKY129A012

COVER

Show Image

[11] Contact

RKY011G001B

LABEL,WIRING

Contact

Notes: !

[12] In Stock

RKY133A008M

PLATE ASSY, ORNAMENT

Notes: PANEL WITH RUN,TIME,HI POWER,3D AUTO & ON / OFF MARKERS & ON/OFF PUSH BUTTOM. Show Image

[13] Contact

RSA011H026

LABEL

Contact

[14] Contact

RKY435A002

GRILLE,AIR OUT

Contact

Notes: NOT FOR SALE-GO TO GRILLE,AIR OUT ''ASSY''

[14-29] In Stock

RKY435A001B

GRILLE ASSY,AIR OUT

Notes: INCLUDES DRIP/CONDENSATE TRAY - LOUVERS, LOUVER HARNESSES AND LOUVER MOTORS

[15] In Stock

RKY436A001

LOUVER

Notes: FLAP ASSY(A) - WIDER/UPPER FLAP

[16] In Stock

RKY436A003

LOUVER

Notes: FLAP ASSY(B) - THINNER/LOWER FLAP

[17] Out of Stock

RKY436A005

LOUVER

Notes: WIDER/UPPER FLAP

[18] In Stock

RKY436A007

LOUVER

Notes: THINNER/LOWER FLAP Show Image

[19] In Stock

RKY436A009

LOUVER ASSY

Notes: CONNECTIING PLATE & 6 LOUVER BLADES - RIGHT SIDE Show Image

[20] In Stock

RKY436A009A

LOUVER ASSY

Notes: CONNECTIING PLATE & 6 LOUVER BLADES - LEFT SIDE Show Image

[21] In Stock

RKW935C200

COLLAR

Notes: ***SOLD INDIVIDUALLY***

[22-23] In Stock

RKY144A010

LINK ASSY(R)

Notes: RIGHT Show Image

[23] In Stock

SSA512T158

MOTOR STEPPING

Notes: Louver/Flap/Stepping motor Show Image

[24-25] In Stock

RKY144A011

LINK ASSY(L)

Notes: LEFT Show Image

[25] In Stock

SSA512T158

MOTOR STEPPING

Notes: Louver/Flap/Stepping motor Show Image

[26] In Stock

RKY504A003A

HARNESS ASSY

Notes: FOR FLAP & LOUVER

[27] In Stock

RKY504A004A

HARNESS ASSY

Show Image

[28] In Stock

SSA423A114

HOSE,DRAIN

[29] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray.

[30] In Stock

RKY111A001

BASE ASSY

[31] Contact

RKY129A002

PLATE,BASE

Contact

[32] In Stock

RKY129A003

BRACKET,MOTOR(U)

Notes: FRONT Show Image

[33] In Stock

RKY129A004

BRACKET,MOTOR(L)

Notes: REAR Show Image

[34] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[35] In Stock

SSA431G050A

IMPELLER

Notes: INDOOR FAN BARREL

[36] In Stock

SSA512T127D

MOTOR DC

Notes: FOR IMPELLER

[37] In Stock

RKY032A001

PLATE,INSTALLATION

[38] In Stock

RKY129A036

HOLDER,FILTER

[38-40] In Stock

RKY129A023B

FILTER UNIT ASSY

[39] In Stock

RKY129A025

HOLDER,FILTER(R)

Notes: !

[40] In Stock

RKY129A028

HOLDER,FILTER

Notes: ! Show Image

[41] Contact

RKY129A034

COVER ASSY(PIPE)

Contact

[42] In Stock

RKY129A030

COVER,CONNECTOR

Show Image

[43] In Stock

RKY132A001A

LID

[44] In Stock

RKY132A002

LID(L)

[45] In Stock

SSA913A007

SCREW

Notes: 4X14, 1pc ONLY Show Image

SKU: SRK35ZJX-S/C PANEL AND FAN ASSY Category: Uncategorised
