SRK13YJ-S PANEL AND FAN ASSY

Name: SRK13YJ-S PANEL AND FAN ASSY
SKU: SRK13YJ-S PANEL AND FAN ASSY
Availability: InStock

SRK13YJ-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

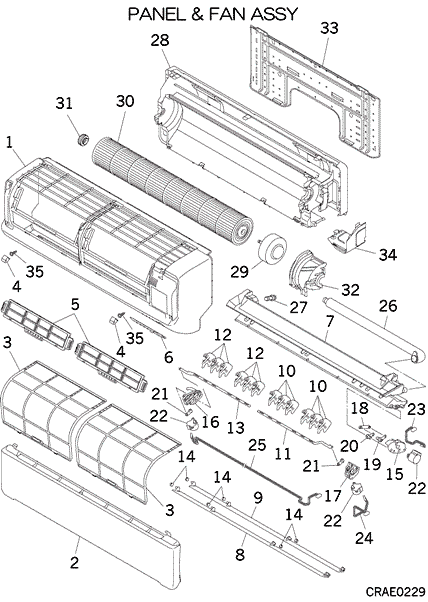

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKX122A300N

PANEL, FRONT

[1-6] In Stock

RMA102A100M

PANEL ASSY, FRONT

[2] In Stock

RMA435A100H

PANEL AIR INLET

[3] In Stock

RKX437A300

FILTER, AIR

Notes: 1pc ONLY, RETURN AIR FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY Show Image

[4] In Stock

RKX129A013

CAP

Show Image

[5] In Stock

RKX129A014

HOLDER,FILTER

Notes: 1pc ONLY, FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY

[6] Contact

RKX133A300

PLATE,ORNAMENT

Contact

[7] In Stock

RKX435A303

GRILLE, AIR OUTLET

[7-27] In Stock

RKX435A302M

GRILLE ASSY, AIR OUT

Notes: Includes Condensate/Drip tray + all louvers/ louver motors/louver wiring harness & drain hose

[8] In Stock

RKX436A001C

FLAP (A)

Notes: UPPER, Upper

[9] In Stock

RKX436A002C

FLAP(B)

Notes: LOWER, LOWER HORIZONTAL FLAP/ LENGTH 69.5CM

[10] In Stock

RKX436A005B

LOUVER

Notes: SEE LOUVER ASSY, *** ONE LOUVER ONLY *** Show Image

[10-11] In Stock

RKX436A003A

LOUVER ASSY (R)

Notes: 6 LOUVER COLLARS AND CONNECTING ROD - RIGHT SIDE ONLY Show Image

[11] In Stock

RKX129A008A

PLATE,CONNECTING(R)

Show Image

[12] In Stock

RKX436A005B

LOUVER

Notes: SEE LOUVER ASSY, *** ONE LOUVER ONLY *** Show Image

[12-13] In Stock

RKX436A004B

LOUVER ASSY (L)

Notes: *****REPLACEMENT PART COLOUR IS BLACK***** 6 LOUVER COLLARS AND CONNECTING ROD - LEFT SIDE ONLY - Show Image

[13] Contact

RKX129A009

PLATE,CONNECTING(L)

Contact

Notes: !

[14] In Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[15] In Stock

RKX129A010

BRACKET,MOTOR(A)

Show Image

[16] In Stock

RKX129A011

BRACKET,MOTOR(B)

[17] In Stock

RKX129A012

BRACKET,MOTOR(C)

Show Image

[18] In Stock

RKX144A001

LINK

Show Image

[19] In Stock

RKX144A002

CRANK(A)

Show Image

[20] In Stock

RKX144A003

CRANK(B)

Show Image

[21] In Stock

RKW144A204

CRANK(C)

Show Image

[22] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT/RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[23] In Stock

RKS504A100G

HARNESS

Notes: FOR FLAP MOTOR, WIRING HARNESS FOR FLAP - UP & DOWN

[24] In Stock

RKS504A100

HARNESS

Notes: FOR RIGHT LOUVER MOTOR, WIRING HARNESS FOR FOR RIGHT LOUVER SET Show Image

[25] In Stock

RKS504A100L

HARNESS

Notes: FOR LEFT LOUVER MOTOR, WIRING HARNESS FOR LEFT LOUVER MOTOR

[26] In Stock

SSA423A114

HOSE,DRAIN

[27] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray

[28] In Stock

RKX111A001

BASE ASSY

Show Image

[29] In Stock

SSA512T127

MOTOR, DC

Notes: FOR IMPELLER Show Image

[30] In Stock

SSA431G046A

IMPELLER

Notes: FAN BARREL

[31] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[32] In Stock

RKX129A005

COVER(MOTOR)

Show Image

[33] In Stock

RKX032A001

PLATE,INSTALLATION

Notes: MOUNTING PLATE

[34] In Stock

RKX132A001A

LID

Notes: RIGHT HAND SIDE LID. (COVERS PIPING) Show Image

[35] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image

SKU: SRK13YJ-S PANEL AND FAN ASSY Category: Uncategorised
