SRF35ZJX-S PANEL ASSY

SRF35ZJX-S PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

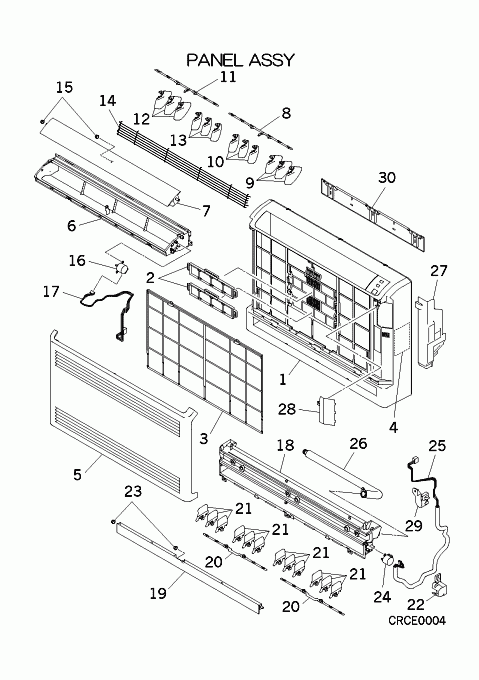

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RFB102A002
PANEL ASSY,FRONT
[1-4] In Stock
RFB102A001B
PANEL ASSY,FRONT
[2] In Stock
RFB129A011
HOLDER,FILTER
Notes: Holder only Show Image
RFB129A011
[3] In Stock
RFB437A001
FILTER,AIR
Notes: 1pc ONLY, W699XH413(T2)
[4] Contact
RFB011G001
LABEL,WIRING
Contact
[5] In Stock
RFB435A005D
PANEL ASSY,AIR IN
[6] In Stock
RFB435A007
GRILLE ASSY,OUT(U)
[7] In Stock
RFB436A001A
FLAP(UPPER)
[8] In Stock
RFB129A006
PLATE,CONNECTING(U
[8-10] In Stock
RFB436A003
LOUVER ASSY(R)
Notes: RIGHT
[9] In Stock
RFB436A006
LOUVER(UPPER,A)
Notes: 1pc ONLY Show Image
RFB436A006
[10] In Stock
RFB436A007
LOUVER(UPPER,B)
Notes: 1pc ONLY
[11] In Stock
RFB129A006
PLATE,CONNECTING(U
[11-13] In Stock
RFB436A004
LOUVER ASSY(L)
Notes: LEFT Show Image
RFB436A004
[12] In Stock
RFB436A006
LOUVER(UPPER,A)
Notes: 1pc ONLY Show Image
RFB436A006
[13] In Stock
RFB436A007
LOUVER(UPPER,B)
Notes: 1pc ONLY
[14] In Stock
RFB131A001
GUARD,FAN
[15] In Stock
RKW935C200
COLLAR
Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[16] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP, Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image
SSA512T158
[17] In Stock
RFB504A001
HARNESS ASSY
Notes: FOR MOTOR,FLAP(UPPER) Show Image
RFB504A001
[18] In Stock
RFB435A008
GRILLE ASSY,OUT(L)
[19] In Stock
RFB436A002
FLAP(LOWER)
[20] Contact
RFB129A007
PLATE,CONNECTING(L
Contact
[20-21] In Stock
RFB436A005
LOUVER ASSY(LOWER)
Notes: 6 LOUVER FINS AND CONNECTING ROD Show Image
RFB436A005
[21] Contact
RFB436A008
LOUVER(LOWER)
Contact
Notes: 1pc ONLY
[22] Contact
RFB129A008
COVER,MOTOR(B)
Contact
[23] In Stock
RKW935C200
COLLAR
Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[24] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT/RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image
SSA512T158
[25] In Stock
RFB504A001A
HARNESS ASSY
Notes: FOR MOTOR,FLAP(LOWER) Show Image
RFB504A001A
[26] In Stock
SSA423A114
HOSE,DRAIN
[27] Contact
RFB129A005
COVER(PIPE)
Contact
Substitute: RFB129A005B
[28] In Stock
RFB132A002A
LID (TERMINAL)
Notes: LENGTH 13.5CM Show Image
RFB132A002A
[29] Contact
RFB937A001
CLAMP
Contact
[30] In Stock
RFB032A002
PLATE,INST(B)
