SRC80ZMA-S PANEL AND FAN ASSY

Name: SRC80ZMA-S PANEL AND FAN ASSY
SKU: SRC80ZMA-S PANEL AND FAN ASSY
Availability: InStock

SRC80ZMA-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

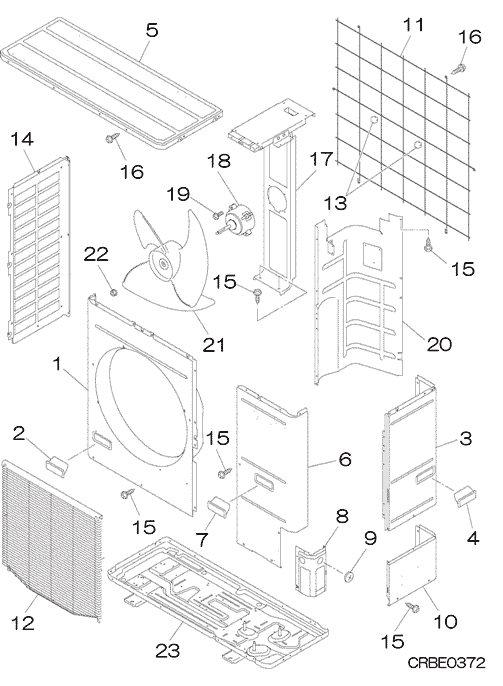

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] In Stock

PCA122A075C

PANEL ASSY,FRONT

[2] In Stock

SSA944B031A

HANDLE

Show Image

[3-4] In Stock

RCR125A100

PANEL ASSY,REAR

[4] In Stock

SSA944B031A

HANDLE

Show Image

[5] In Stock

RCR124A100

PANEL ASSY,TOP

[6] In Stock

PCA122A046B

PANEL,SERVICE

[6-7] In Stock

RCR122A100

PANEL ASSY,SERVICE

[7] In Stock

SSA944B031A

HANDLE

Show Image

[8-9] In Stock

PCA142A065F

COVER,FRONT

Notes: SMALL CORNER PANEL, BOTTOM FRONT/RIGHT SIDE Show Image

[9] Contact

S75W25X

GROMMET

Contact

[10] In Stock

PCA142A184B

COVER,SIDE

[11] In Stock

PCA131A033

GUARD,FIN

[12] In Stock

PCA131A039

GUARD,FAN

Notes: 1pc ONLY

[13] In Stock

PCA941G004

CUSHION RUB

Show Image

[14] In Stock

PCA123A023

PANEL,SIDE(L)

[15] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY, INCLUDES WASHER Show Image

[16] In Stock

SSA913D020A

SCREW,TAP & WASHER

Notes: M5X14, 1pc ONLY Show Image

[17] In Stock

PCA116A092S

BASE MOTOR

Notes: FAN BRACKET

[18] In Stock

SSA512T076BH

MOTOR DC

[19] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[20] In Stock

RCR141A206

PLATE ASSY, BAFFLE

[21] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[22] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[23] In Stock

RCR111A101

BASE ASSY

SKU: SRC80ZMA-S PANEL AND FAN ASSY Category: Uncategorised
