SRC71ZK-S/A PANEL AND FAN ASSY

Name: SRC71ZK-S/A PANEL AND FAN ASSY
SKU: SRC71ZK-S/A PANEL AND FAN ASSY
Availability: InStock

SRC71ZK-S/A PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

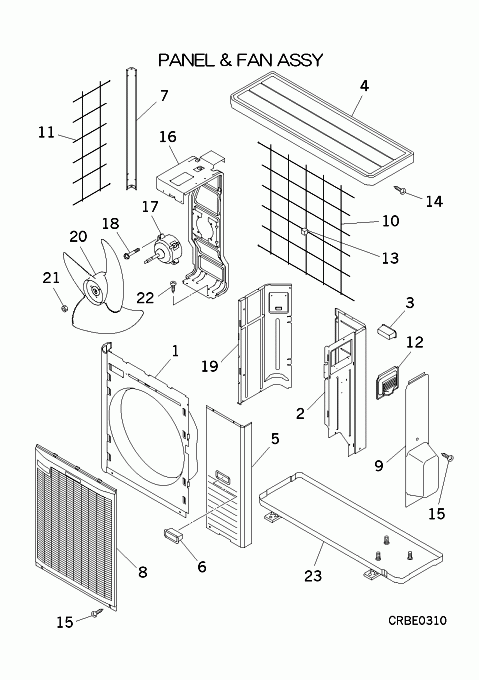

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR122A001

PANEL ASSY, FRONT

[2-3] In Stock

RCR125A002C

PANEL ASSY,REAR

[3] In Stock

SSA944B031A

HANDLE

Show Image

[4] In Stock

RCR124A002

PANEL ASSY, TOP

Notes: TOP PANEL

[5] In Stock

RCR122A006B

PANEL,SERVICE

[5-6] In Stock

RCR122A004A

PANEL ASSY,SERVICE

Notes: METAL / FRONT SERVICE PANEL - Label / Logo not included

[6] In Stock

SSA944B031A

HANDLE

Show Image

[7] In Stock

RCR115A002A

SUPPORT,CORNER

[8] In Stock

RCR435A001

GRILLE,AIR

Notes: AIR OUTLET GRILLE / FAN GUARD

[9] In Stock

RCR132A004

COVER ASSY

Notes: RIGHT SIDE PLASTIC SERVICE COVER

[10] In Stock

RCR131A001

GUARD,FIN(A)

[11] In Stock

RCR131A002

GUARD,FIN(B)

[12] In Stock

RCR132A002

COVER,TERMINAL

Show Image

[13] In Stock

RCR941G001

CUSHION,RUBBER

Notes: ! Show Image

[14] Out of Stock

SSA913A034F

SCREW,TAP

Substitute: SSA913A034K Notes: 4X8, 1pc ONLY, 4X8 Show Image

[15] In Stock

SSA913A034L

SCREW,TAP

Notes: 4X12, 1pc ONLY

[16] In Stock

RCR116A001

BRACKET,MOTOR

[17] In Stock

SSA512T076BC

MOTOR, DC

[18] In Stock

SSA913B038

SCREW,TAP

Notes: 1pc ONLY - FOR FAN MOTOR Show Image

[19] In Stock

RCR141A001

PLATE,BAFFLE

[20] In Stock

SSA431B256

FAN, PROPELLER

Notes: FAN BLADE

[21] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[22] In Stock

W011D04X008

TAP SCREW

Notes: 4X8, 1pc ONLY Show Image

[23] In Stock

RCR111A003D

BASE ASSY

SKU: SRC71ZK-S/A PANEL AND FAN ASSY Category: Uncategorised
