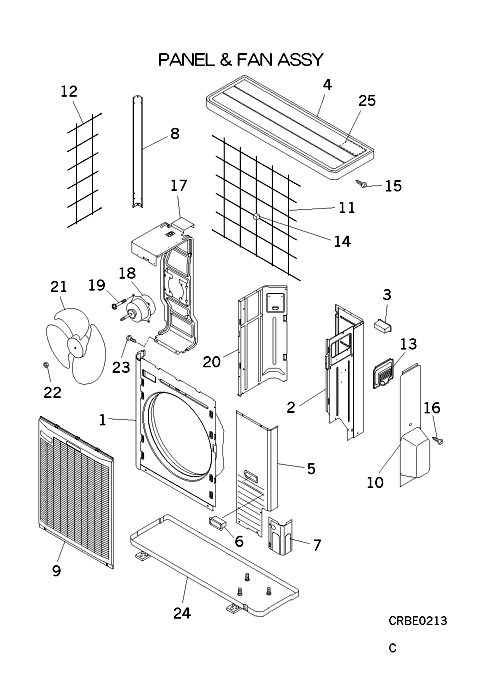

SRC71ZE-S1 PANEL AND FAN ASSY

SRC71ZE-S1 PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCR122A001
PANEL ASSY, FRONT
[2-3] In Stock
RCR125A002C
PANEL ASSY,REAR
[3] In Stock
SSA944B031A
HANDLE
Show Image
SSA944B031A
[4] In Stock
RCR124A002
PANEL ASSY, TOP
Notes: TOP PANEL
[5] In Stock
RCR122A006B
PANEL,SERVICE
[5-6] In Stock
RCR122A004A
PANEL ASSY,SERVICE
Notes: METAL / FRONT SERVICE PANEL
[6] In Stock
SSA944B031A
HANDLE
Show Image
SSA944B031A
[7] In Stock
RCR132A001
COVER,FRONT
Notes: SMALL, BOTTOM-RIGHT, FRONT COVER
[8] In Stock
RCR115A002A
SUPPORT,CORNER
[9] In Stock
RCR435A001
GRILLE,AIR
Notes: AIR OUTLET GRILLE / FAN GUARD
[10] In Stock
RCR132A004
COVER ASSY
Notes: RIGHT SIDE PLASTIC SERVICE COVER
[11] In Stock
RCR131A001
GUARD,FIN(A)
[12] In Stock
RCR131A002
GUARD,FIN(B)
[13] In Stock
RCR132A002
COVER,TERMINAL
Show Image
RCR132A002
[14] In Stock
RCR941G001
CUSHION,RUBBER
Notes: ! Show Image
RCR941G001
[15] In Stock
SSA913A034B
SCREW
Notes: 4X8, 1pc ONLY
[16] In Stock
SSA913A034C
SCREW
Notes: 4X12, 1pc ONLY
[17] In Stock
RCR116A001
BRACKET,MOTOR
[18] In Stock
SSA512T076BB
MOTOR DC
Notes: ***THE PCB THIS PLUGS INTO IS NO LONGER AVAILABLE(EXCLUDES SCM80ZF-S) ***Replaced SSA512T076A & SSA512T076H
[19] In Stock
SSA913C031A
SCREW TAP
Notes: 1pc ONLY Show Image
SSA913C031A
[20] In Stock
RCR141A001
PLATE,BAFFLE
[21] In Stock
SSA431B247A
FAN
Notes: OUTDOOR FAN BLADE
[22] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[23] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[24] In Stock
RCR111A001B
BASE ASSY
Show Image
RCR111A001B
[25] Contact
RCR011G001
LABEL,WIRING
Contact
Notes: !
