SCM60ZJ-S HEAT EXCH. AND CONTROL

Name: SCM60ZJ-S HEAT EXCH. AND CONTROL
SKU: SCM60ZJ-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM60ZJ-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

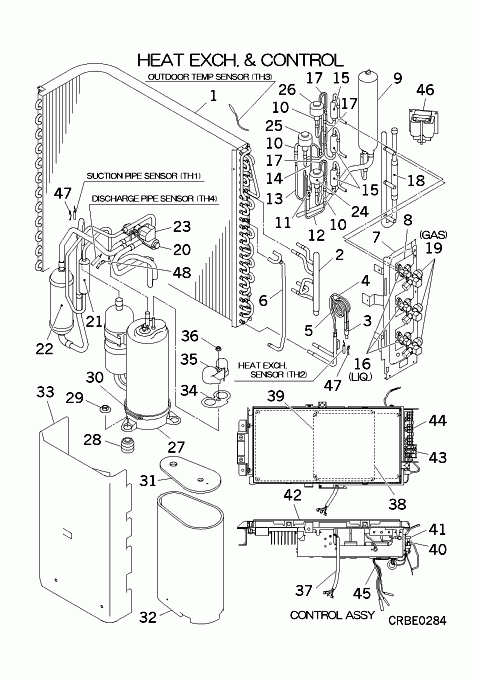

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RPC504A916

HARNESS

Notes: MAIN PWB - SUB PWB (CNMAIN - CNSUB)

[1-6] In Stock

RPC301A858

HEAT EXCH ASSY(AIR

[2] Contact

RPC315D863

HEADER ASSY,GAS

Contact

[3-5] Contact

RPC321B047A

PIPE ASSY

Contact

[4] Contact

RPC315B870

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B871

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] Contact

RPC116A870

BRACKET ASSY(VALVE

Contact

[8] Contact

RPC116A871

BRACKET ASSY(VALVE

Contact

[9] Contact

RPC352D860

RECEIVER ASSY

Contact

[10] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[10-17] Contact

RPC304A924

PIPING ASSY(EXPAN)

Contact

[11] In Stock

SSA315A252B

DISTRIBUTOR

Show Image

[11-14] In Stock

RPC315A850

DISTRIBUTOR ASSY

Show Image

[12] Contact

RPC315B856

CAPILLARY,SUB(A)

Contact

Notes: !D2.6XD4.0 L300

[13] Contact

RPC315B857

CAPILLARY,SUB(B)

Contact

Notes: !D2.6XD4.0 L300

[14] Contact

RPC315B858

CAPILLARY,SUB(C)

Contact

Notes: !D2.6XD4.0 L300

[15] In Stock

SSA357A005A

STRAINER

Show Image

[16] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[17] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[18] Contact

RCK325A501A

MUFFLER

Contact

[19] In Stock

RPC381A854

VALVE,SERVICE (3/8")

Notes: GAS Show Image

[20] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[21] Contact

SSA325A001CA

PIPE,SHELL

Contact

[22] In Stock

AHT351A001

ACCUMULATOR

Show Image

[23] In Stock

RPC382F802

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S‚ / LENGTH 31CM Show Image

[24] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[25] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[26] In Stock

SSA382F210BC

COIL,SOLENOID

Notes: FOR EEVC, FOR EEVC‚ (BLUE PLUG)

[27] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[28] Out of Stock

SSA941C346

CUSHION,RUBBER

[29] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[30] Contact

RPC541B001F

HEATER ASSY(CRANK)

Contact

[31] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[32] In Stock

RPC154D904

INSULATION,COMP

Notes: COMP BODY

[33] Contact

RPC154D851A

INSULATION

Contact

Notes: OUTSIDE

[34] In Stock

RSA932C004

GASKET

Show Image

[35] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[36] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[37] In Stock

RPC504A912

WIRING ASSY

Notes: FOR COMP. Show Image

[38] In Stock

RCT505A005JC

PWB ASSY (MAIN)

Notes: PWB1, TOP BOARD Show Image

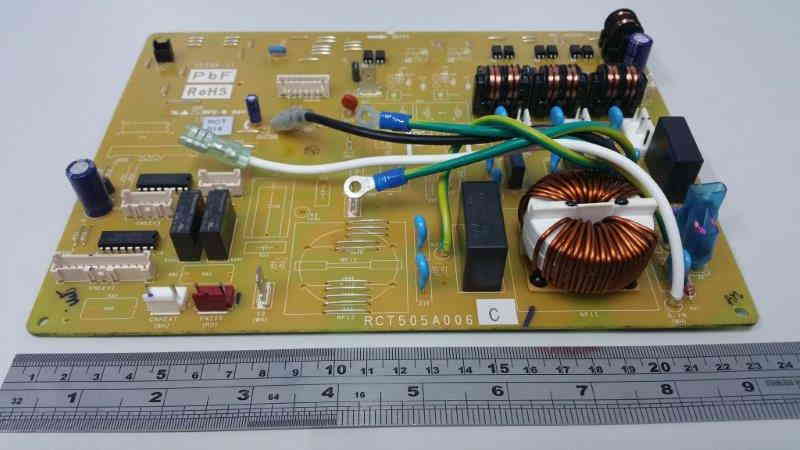

[39] In Stock

RCT505A006C

PWB ASSY(SUB)

Notes: PWB2 Show Image

[41] In Stock

SSA564B088

FUSE HOLDER

Show Image

[42] In Stock

RPC142A906

LID ASSY,CONTROL

[43] In Stock

SSA561B665

BLOCK,TERMINAL

Notes: T1 Show Image

[44] In Stock

SSA561B699

BLOCK TERMI

Notes: T2

[45] In Stock

SSA551A232D

SENSOR ASSY

Notes: TH1,2,3,4 Show Image

[46] In Stock

SSA554B113

REACTOR

Show Image

[47] In Stock

RKJ941F001

SPRING LEAF

Show Image

[48] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[49] Contact

RWC011F017D

LABEL,MODEL NAME

Contact
