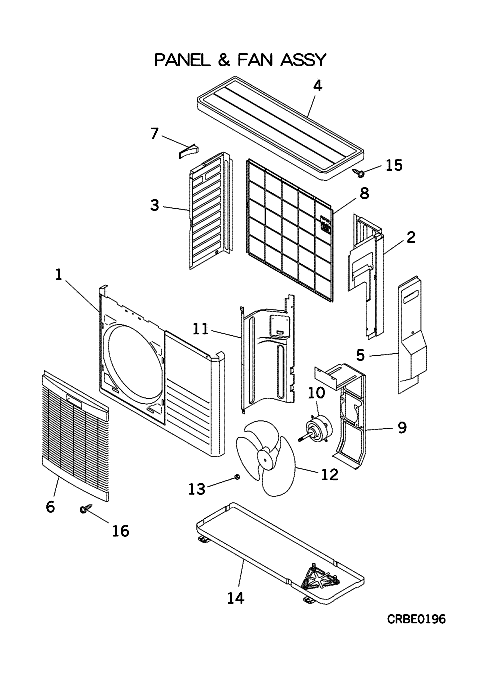

SCM60ZD-S PANEL AND FAN ASSY

SCM60ZD-S PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RWC122A004A
PANEL ASSY, FRONT
[2] In Stock
RWC123A005B
PANEL SIDE
RWC123A005B
[3] In Stock
RWC123A008
PANEL,SIDE(L)
[4] In Stock
RWC124A003B
PANEL,TOP
[5] In Stock
RWC132A006
LID CONTROL
[6] In Stock
RWC435A002
GRILLE AIR OUTLET
[7] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[8] In Stock
RWC131A004
GUARD ASSY
[9] In Stock
RWC116A041A
BRACKET
Notes: For Fan Motor
[10] In Stock
SSA511B817
MOTOR,AC
[11] In Stock
RPC141A851
PLATE,BAFFLE
[13] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[14] Contact
RWC111A003F
BASE ASSY
Contact
Substitute: RWC111A005N
[15] In Stock
SSA913A034B
SCREW
Notes: 4X8, 1pc ONLY
[16] In Stock
SSA913A034C
SCREW
Notes: 4X12, 1pc ONLY
