FDUM60VH/A CONTROL AND PARTS SET

FDUM60VH/A CONTROL AND PARTS SET

FDUM60VH/A CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

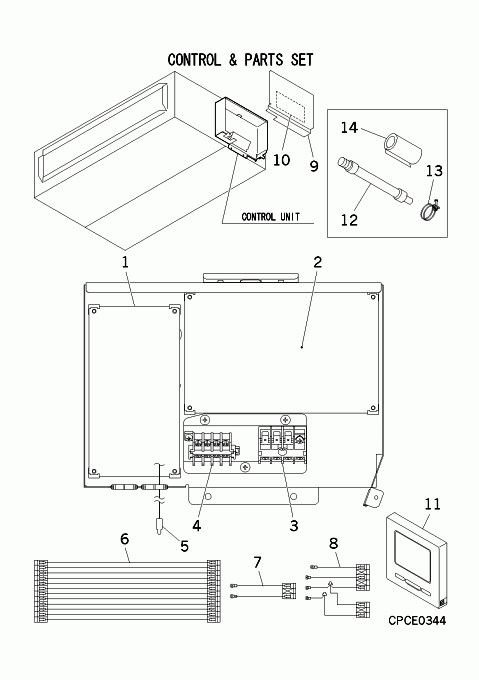

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A228NJ
PWB ASSY CO
Notes: ONLY FOR SUPPLY PARTS, CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image
PJA505A228NJ
[1-8] Contact
PJG501A024FJ
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PJA505A331AG
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLY PARTS
[3] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[6] In Stock
PJG504A001
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1
[7] Out of Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[8] Contact
PJG504A002
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB, CONT E,TB1 1,TB1 2,TB1 3- CNW0,CNW3
[9] Contact
PJG142A003
LID ASSY,CONTROL B
Contact
[10] Contact
PJG011G022A
LABEL,WIRING
Contact
Notes: !
[11] Contact
PJZ502A031GC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EXZ3A, ECO TOUCH - SALES ITEM
[12] In Stock
SSA423A101C
HOSE,DRAIN
Notes: LENGTH 26CM Show Image
SSA423A101C
[12-14] In Stock
PJF008A001AW
PARTS SET
Notes: Includes Drain Hose, Hose Clamp & Insulation
[13] In Stock
V300Y42
HOSE CLAMP
Show Image
V300Y42
[14] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[15] In Stock
PJG006A005A
INSTALLATION SET
Notes: FOR ZONE CONTROL, WIRING HARNESS FOR ZONE CONTROLLER
[16] Contact
PJG011F073AF
LABEL,MODEL NAME
Contact
Notes: !
