FDUA280KXZE1/B HEAT EXCH AND FAN

Name: FDUA280KXZE1/B HEAT EXCH AND FAN
SKU: FDUA280KXZE1/B HEAT EXCH AND FAN
Availability: InStock

FDUA280KXZE1/B HEAT EXCH AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

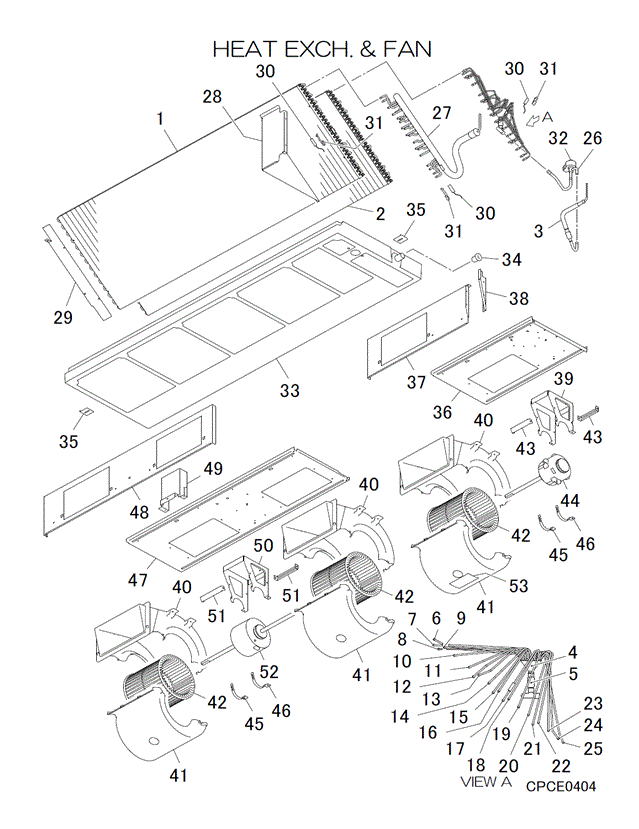

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJG311A005

HEAT EXCH AIR

Contact

[1-32] In Stock

PJG301A009A

HEAT EXCH ASSY(AIR)

Notes: Indoor Heat Exchanger Coil assembly. PACKED IN LARGE CRATE-MAYBE EXPENSIVE FREIGHT

[2] Contact

PJG311A005A

HEAT EXCH AIR

Contact

[3] In Stock

PJG304A007

PIPING ASSY

[4] Contact

SSA315A306Y

DISTRIBUTOR

Contact

[4-25] Contact

PJG315A017

DISTRIBUTOR ASSY

Contact

[5] In Stock

SSA357A051

STRAINER

Show Image

[6] Contact

PJG315B007

CAPILLARY

Contact

Notes: D3.0xD4.0 L360

[7] Contact

PJG315B007A

CAPILLARY

Contact

Notes: D3.0xD4.0 L340

[8] Contact

PJG315B007B

CAPILLARY

Contact

Notes: D3.0xD4.0 L320

[9] Contact

PJG315B007C

CAPILLARY

Contact

Notes: D3.0xD4.0 L280

[10] Contact

PJG315B007D

CAPILLARY

Contact

Notes: D3.0xD4.0 L260

[11] Contact

PJG315B007F

CAPILLARY

Contact

Notes: D2.6xD4.0 L240

[12] Contact

PJG315B007G

CAPILLARY

Contact

Notes: D2.0xD4.0 L240

[13] Contact

PJG315B007H

CAPILLARY

Contact

Notes: D2.6xD4.0 L220

[14] Contact

PJG315B007J

CAPILLARY

Contact

Notes: D3.0xD4.0 L220

[15] Contact

PJG315B007K

CAPILLARY

Contact

Notes: D2.4xD4.0 L220

[16] Contact

PJG315B007L

CAPILLARY

Contact

Notes: D2.2xD4.0 L220

[17] Contact

PJG315B007M

CAPILLARY

Contact

Notes: D2.0xD4.0 L240

[18] Contact

PJG315B007N

CAPILLARY

Contact

Notes: D2.2xD4.0 L240

[19] Contact

PJG315B007P

CAPILLARY

Contact

Notes: D2.8xD4.0 L240

[20] Contact

PJG315B007R

CAPILLARY

Contact

Notes: D2.6xD4.0 L260

[21] Contact

PJG315B007S

CAPILLARY

Contact

Notes: D2.2xD4.0 L300

[22] Contact

PJG315B007T

CAPILLARY

Contact

Notes: D2.2xD4.0 L300

[23] Contact

PJG315B007V

CAPILLARY

Contact

Notes: D2.4xD4.0 L320

[24] Contact

PJG315B007W

CAPILLARY

Contact

Notes: D2.0xD4.0 L360

[25] Contact

PJG315B007Y

CAPILLARY

Contact

Notes: D1.8xD4.0 L360

[26] In Stock

SSA387F049

VALVE,BODY(EXP)

Notes: SM Show Image

[27] Contact

PJG315D020B

HEADER ASSY, GAS

Contact

[28] Contact

PJG141A009

PLATE,BAFFLE(R)

Contact

[29] Contact

PJG141A011

PLATE ASSY,BAFFLE

Contact

[30] In Stock

PJF551A002H

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3, THI-R1,2,3 - LENGTH 68.5CM Show Image

[31] In Stock

PSA941F001

SPRING LEAF

Notes: FOR THI-R, 1pc ONLY Show Image

[32] In Stock

SSA382F229AL

COIL,SOLENOID

Notes: FOR SM Show Image

[33-34] In Stock

PJG454A007A

PAN ASSY, DRAIN

Notes: ***INCLUDES DRAIN PLUG SSA326A049***

[34] In Stock

SSA326A049

PLUG

Show Image

[35] In Stock

PJG116A009

BRACKET

Show Image

[36] Contact

PJG119A062

PLATE(BASE,FAN)

Contact

Notes: RIGHT

[37] Contact

PJG119A063

PLATE,FAN

Contact

Notes: RIGHT

[38] In Stock

PJG119A020

PLATE(FAN)

Notes: RIGHT Show Image

[39] In Stock

PJG116A012A

BRACKET(MOTOR)

Notes: RIGHT

[40] In Stock

PJG433B006

CASING(U)

[41] In Stock

PJG433B004

CASING(L)

[42] In Stock

SSA431D094

IMPELLER

Notes: FAN BARREL

[43] In Stock

PJG119A002

PLATE

Notes: RIGHT Show Image

[44] Contact

PSA512T004

MOTOR, DC (SPARE)

Contact

Notes: RIGHT

[45] In Stock

PFA116A207G

BRACKET

Notes: LEFT Show Image

[46] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[47] Contact

PJG119A062A

PLATE(BASE,FAN)

Contact

Notes: LEFT

[48] Contact

PJG119A063A

PLATE,FAN

Contact

Notes: LEFT

[49] In Stock

PJG142A027

BOX ASSY(DRIVER)

Notes: LEFT

[50] In Stock

PJG116A012

BRACKET(MOTOR)

Notes: LEFT

[51] In Stock

PJG119A002A

PLATE

Notes: LEFT Show Image

[52] In Stock

SSA512T123C

MOTOR DC

Notes: LEFT

[53] Out of Stock

PSA011H046

LABEL,NOTICE
