FDUA280KXZE1/B CABINET

Name: FDUA280KXZE1/B CABINET
SKU: FDUA280KXZE1/B CABINET
Availability: InStock

FDUA280KXZE1/B CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

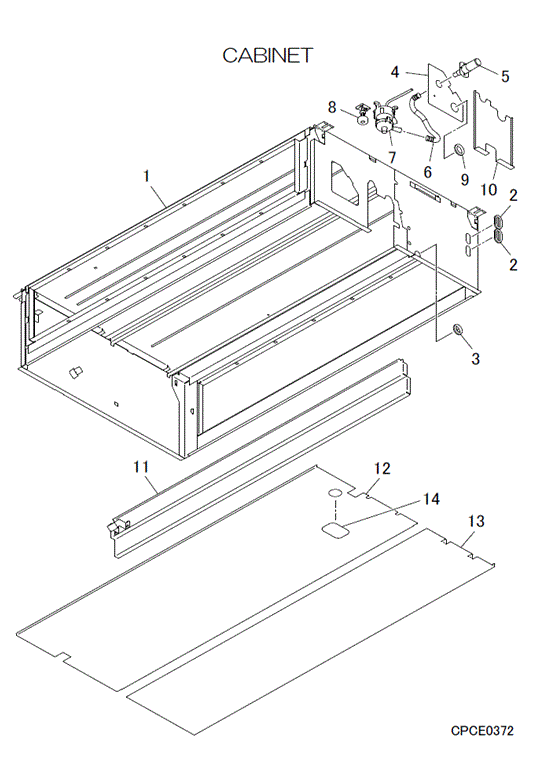

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Out of Stock

PJG100A004A

CABINET ASSY

[2] In Stock

SSA947B120

GROMMET

Notes: LENGTH 5.5CM Show Image

[3] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[4] In Stock

PJG132A016

LID(PUMP)

Show Image

[6] In Stock

SSA423A110

HOSE,DRAIN

Show Image

[7] In Stock

SSA451A012

PUMP, DRAIN

Show Image

[8] In Stock

SSA536A030

FLOAT SWITCH

Notes: FS, LENGTH 107.5CM Show Image

[9] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[10] In Stock

PJG132A017

LID ASSY(SOCKET)

[11] Contact

PJG115A016A

STIFFENER ASSY

Contact

[12] Contact

PJG111A013

PLATE ASSY,BOTTOM(

Contact

[13] Contact

PJG111A015

PLATE ASSY,BOTTOM(

Contact

[14] In Stock

PJG142A006

LID ASSY(DRAIN)

Notes: LENGTH 10CM Show Image

[16] Contact

V300Y32

HOSE CLAMP

Contact

Notes: SEE C: CONTROL & PARTS SET
