FDUA224KXZE1/B CONTROL AND PARTS SET

Awaiting product image

FDUA224KXZE1/B CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A229PJ
PWB ASSY CONTROL
Notes: ONLY FOR SUPPLY PARTS, PWB1 - CONFIRM SERVICE CODE BEFORE ORDERING Show Image
PJA505A229PJ
[1-12] Contact
PJG501A014GS
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2-3] In Stock
PJA505A248AB
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLY PARTS Show Image
PJA505A248AB
[3] In Stock
SSA564A149AG
FUSE(CURRENT)
Notes: F1 2A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image
SSA564A149AG
[4] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[5] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[6] In Stock
SSA564A149AL
FUSE(CURRENT)
Notes: F3 10A, F1 10A Show Image
SSA564A149AL
[7] In Stock
SSA564B076
HOLDER,FUSE
Show Image
SSA564B076
[8] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[9] Contact
PJG504A017A
HARNESS ASSY
Contact
Notes: TB1 L,TB1 N- FH,T2,CNU
[10] Out of Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[12] Contact
PJF504A010J
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[13] In Stock
PJG142A031
LID,CONTROL BOX

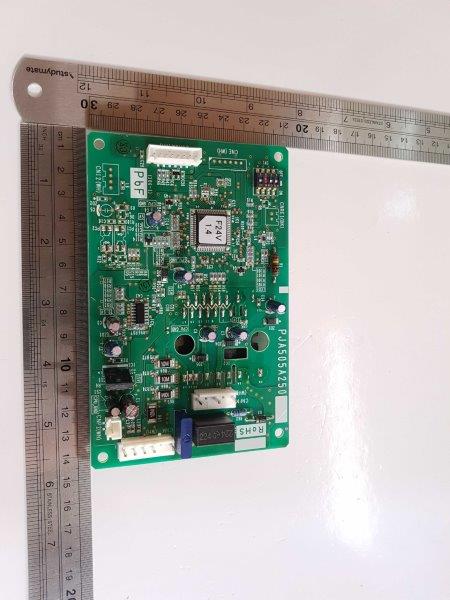

[14] In Stock
PJA505A251A
PWB ASSY(MOTOR)
Notes: ONLY FOR SUPPLY PARTS
[14-17] Contact
PJG501A015A
CONTROL UNIT (DRIVER)
Contact
[15] Contact
PJG504A015A
WIRING (CNM)
Contact
Notes: CNM1 PWB- CNM PWB
[16] Out of Stock
PJG504A016
WIRING(FM)
Notes: CNFM2- CNFM PWB
[17] In Stock
PJG142A034A
LID ASSY(DRIVER)
[18] In Stock
SSA554B115
REACTOR
[19] Contact
PJG011G027C
LABEL, WIRING
Contact
[20] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[22] Contact
V300Y32
HOSE CLAMP
Contact
[23] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
SKU: FDUA224KXZE1/B CONTROL AND PARTS SET Category:
