FDUA160VH/A CONTROL AND PARTS SET

Name: FDUA160VH/A CONTROL AND PARTS SET
SKU: FDUA160VH/A CONTROL AND PARTS SET
Availability: InStock

FDUA160VH/A CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

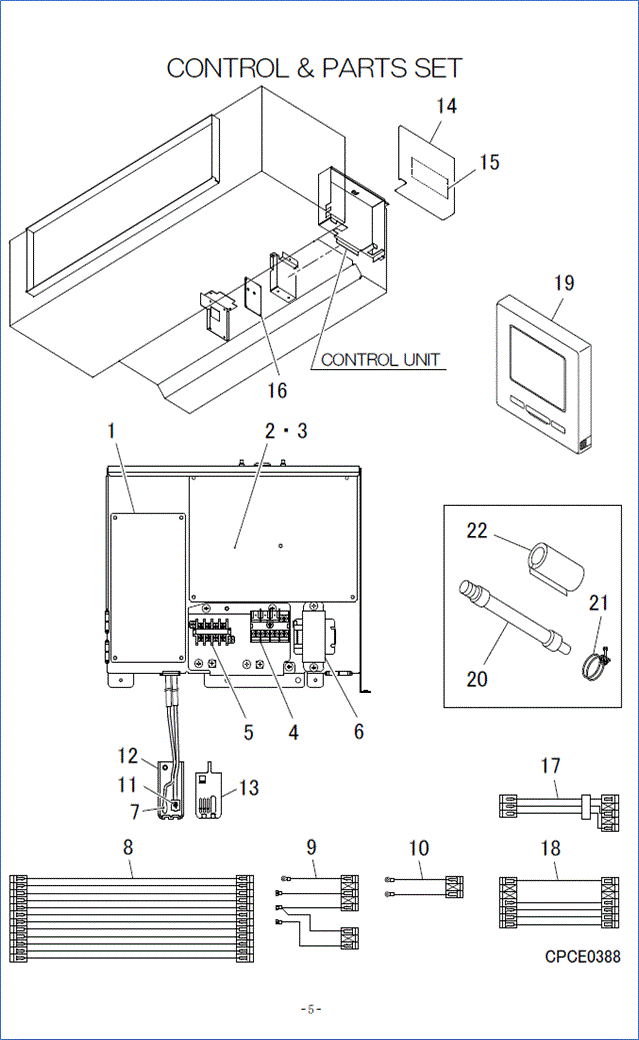

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228DY

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLAY PARTS, CONFIRM SERVICE CODE-MANY PARTS ENDING 228

[2-3] In Stock

PJA505A235L

PWB ASSY POWER

Notes: ONLY FOR SUPPLAY PARTS Show Image

[3] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F1,4 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[4] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[5] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[6] In Stock

SSA554B109

REACTOR

Show Image

[7] In Stock

PSA551A001HA

SENSOR ASSY

Notes: THI-A Show Image

[8] In Stock

PJG504A001B

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB, CNW2 PWB- CNW1 PWB/ LENGTH 16.5CM (12 white wires) Show Image

[9] In Stock

PJF504A036A

WIRING(TB,POWER)

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB Show Image

[10] Out of Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[11] In Stock

SSA551B017H

SENSOR HUMIDITY

Show Image

[12] Contact

PJF129A509

BASE,HOLDER

Contact

[13] Contact

PJF129A510

COVER,HOLDER

Contact

[14] Contact

PJG142A037A

LID,CONTROL BOX

Contact

[15] Contact

PJG011G020B

LABEL,WIRING

Contact

[16] In Stock

PJA505A236A

PWB ASSY MOTOR

Notes: ONLY FOR SUPPLAY PARTS, COMES WITH SSA971F044 (GREASE) INSIDE BOX Show Image

[16-18] Contact

PJG501A026

CONTROL UNIT(DRIVER)

Contact

Notes: NOT AVAILABLE

[17] In Stock

PJG504A008B

WIRING(FM)

Notes: CNFM2- CNFM

[18] In Stock

PJG504A008C

WIRING(FM)

Notes: CNM2- CNM

[19] Contact

PJZ502A031GC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EXZ3A, ECO TOUCH - SALES ITEM

[20] In Stock

SSA423A101C

HOSE,DRAIN

Notes: LENGTH 26CM Show Image

[20-22] In Stock

PJF008A001AW

PARTS SET

Notes: Includes Drain Hose, Hose Clamp & Insulation

[21] In Stock

V300Y42

HOSE CLAMP

Show Image

[22] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[23] In Stock

PJG006A005A

INSTALLATION SET

Notes: FOR ZONE CONTROL, WIRING HARNESS FOR ZONE CONTROLLER
