FDTC25VF CONTROL AND PARTS SET

Name: FDTC25VF CONTROL AND PARTS SET
SKU: FDTC25VF CONTROL AND PARTS SET
Availability: InStock

FDTC25VF CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

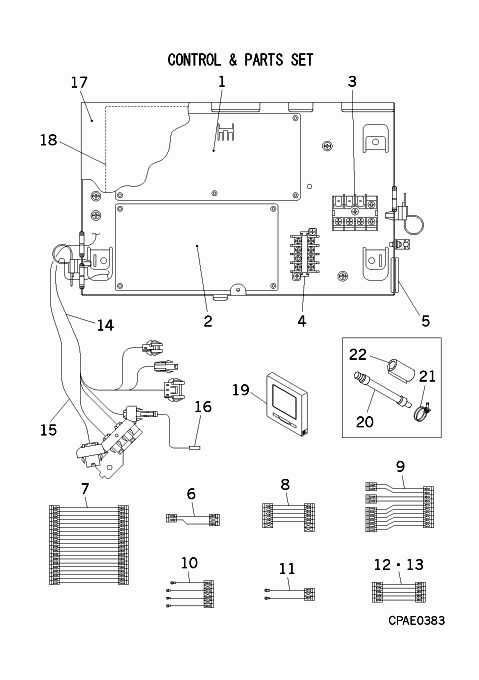

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A200CA

PWB ASSY (POWER)

Notes: POWER BOARD CLOSEST TO TERMINAL BLOCKS (plugs to fan motor & drain pump) Show Image

[1-13] Contact

PJA501A785BB

CONTROL UNIT

Contact

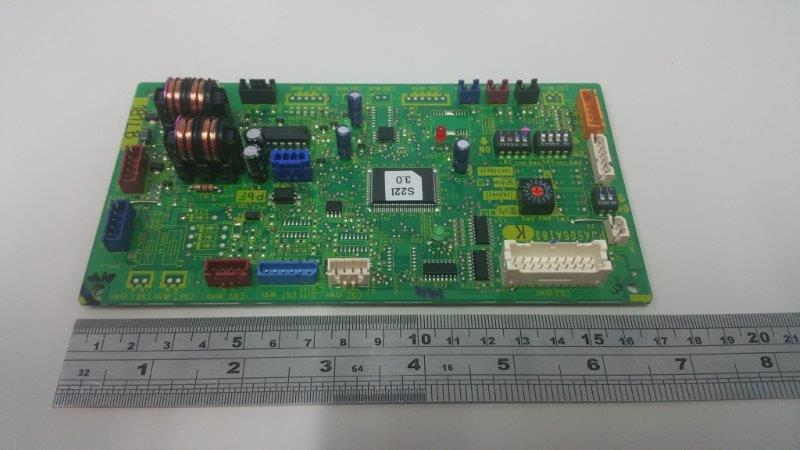

[2] In Stock

PJA505A201LB

PWB ASSY (CONTROL)

Notes: ******CONFIRM SERVICE CODE******* HAS DIP SWITCHES Show Image

[3] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[6] In Stock

PJA504A762A

WIRING(DM)

Notes: CNR2- CNR PWB Show Image

[7] In Stock

PJF504A001A

WIRING(LM)

Notes: CNJ2- CNJ PWB

[8] In Stock

PJA504A763

WIRING(FM)

Notes: CNM3- CNM PWB Show Image

[9] Contact

PJA504A764A

WIRING(V,LOW)

Contact

Notes: CNI PWB,CNH PWB,CNN PWB- CNC

[10] Contact

PJF504A007A

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB

[11] Out of Stock

PJF504A006D

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB. DOES NOT PLUG INTO RECEIVER PWB Show Image

[12] In Stock

PJF504A003B

WIRING(PWB)

Notes: CNW4 PWB- CNW1 PWB Show Image

[13] In Stock

PJF504A003C

WIRING(PWB)

Notes: CNW3 PWB- CNW2 PWB Show Image

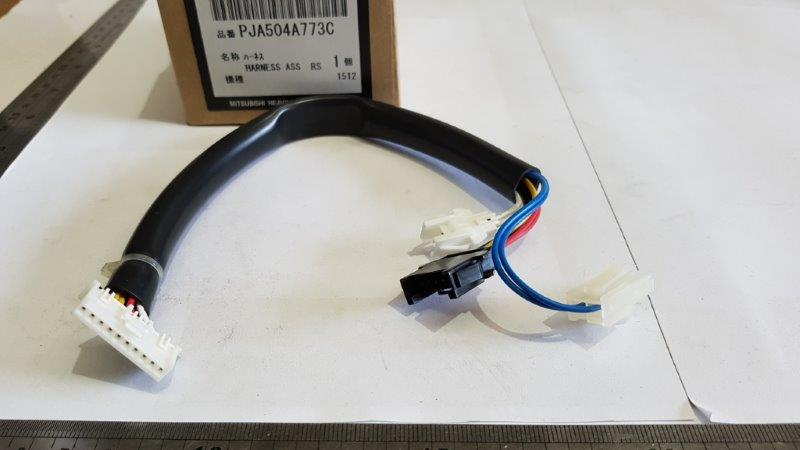

[14] In Stock

PJA504A773C

HARNESS ASSY(V,LOW

Notes: CNC- CNI2 FS,CNH2 THI-A,CNN2 THI-R1 2 3 Show Image

[15] In Stock

PJA504A753A

HARNESS ASSY(MOTOR

Notes: CNM3- CNM4 Show Image

[16] In Stock

PJA551A010Z

SENSOR

Notes: THI-A

[17] Contact

PJA142A781

LID,CONTROL BOX

Contact

Substitute: OUT OF PRODUCTION

[18] Contact

PJA011G783

LABEL,WIRING

Contact

[19] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[20] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[20-22] In Stock

PJF008A001G

PARTS SET

[21] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[22] Contact

PJA153B007

INSULATION,PIPE

Contact

[23] Contact

RWA011F010D

LABEL,MODEL NAME

Contact

SKU: FDTC25VF CONTROL AND PARTS SET Category: Uncategorised
