FDK45KXZE1-W/A PANEL AND FAN ASSY

Name: FDK45KXZE1-W/A PANEL AND FAN ASSY
SKU: FDK45KXZE1-W/A PANEL AND FAN ASSY
Availability: InStock

FDK45KXZE1-W/A PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

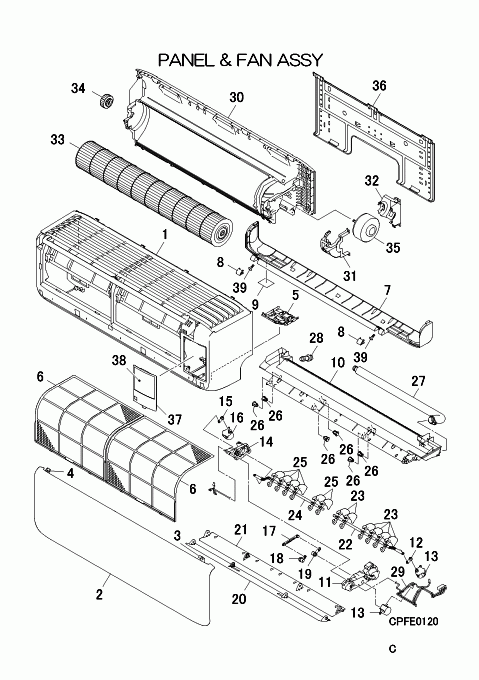

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLF122A102G

PANEL ASSY,FRONT

Notes: ?

[1-4] Contact

PHA102A400D

PANEL ASSY,FRONT

Contact

[2] In Stock

RLF435A101C

PANEL ASSY,AIR IN

Notes: AIR INLET PANEL / FILTER COVER for HINGE/CLIPS: Left = RLF129A109 / Right = RLF129A108

[3] Contact

RLF133A100D

PLATE ASSY,ORNAMEN

Contact

[4] In Stock

RLF437A100

FILTER,AIR

Notes: W342.5xH346.5(t2), 1pc only. LARGER/DUST FILTER. Sold Individually./ LENGTH 40CM

[5] In Stock

RLF129A100A

PANEL, BOTTOM

Notes: LENGTH 85.5CM

[5-7] In Stock

RLF102A101H

PANEL ASSY, BOTTOM

[6] In Stock

RLF129A110B

CAP

Notes: LENGTH 2.1CM Show Image

[7] Contact

RSA011H054

LABEL,NOTICE

Contact

[8] Out of Stock

RLF435A105

GRILLE, AIR OUT

Notes: ?, BASICALLY THE DRAIN PAN AND NOTHING ELSE

[8-27] In Stock

PHA435A400

GRILLE ASSY,AIR OU

[9] In Stock

RLF129A113

BRACKET,MOTOR(R)

Notes: ? Show Image

[9-11] Contact

PHA129A402

BRACKET ASSY(R)

Contact

[10] In Stock

RKW144A204

CRANK(C)

Notes: ? Show Image

[11] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP,LOUVER(RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[12] In Stock

RLF129A114

BRACKET,MOTOR(L)

Notes: ? Show Image

[12-14] Contact

PHA129A403

BRACKET ASSY(L)

Contact

[13] In Stock

RKW144A204

CRANK(C)

Notes: ? Show Image

[14] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[15] In Stock

RLF144A101

LINK

Notes: ?, LENGTH 6.5CM Show Image

[15-17] In Stock

RLF144A100

LINK ASSY

Notes: LENGTH 9.7CM Show Image

[16] In Stock

RLF144A102

CRANK U

Notes: ? Show Image

[17] In Stock

RLF144A103

CRANK L

Notes: ?, LENGTH 3CM Show Image

[18] In Stock

RLF436A100A

FLAP(U)

Notes: UPPER, UPPER HORIZONTAL FLAP / LENGTH 66CM

[19] Out of Stock

RLF436A101A

FLAP(L)

Notes: LOWER, Lower Horizontal Flap

[20] Contact

RLF129A115

PLATE,CONNECTING(R)

Contact

Notes: ?

[20-21] In Stock

RLF436A102

LOUVER ASSY (RIGHT)

Notes: Includes 6 louver blades/fins and connecting rod - RIGHT side only Show Image

[21] In Stock

RLF436A104

LOUVER

Notes: ? Show Image

[22] Contact

RLF129A116

PLATE,CONNECTING(L)

Contact

Notes: ?

[22-23] In Stock

RLF436A103

LOUVER ASSY (LEFT)

Notes: Includes 6 louver blades/fins and connecting rod - LEFT side only Show Image

[23] In Stock

RLF436A104

LOUVER

Notes: ? Show Image

[24] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[25] In Stock

SSA423A114

HOSE,DRAIN

[26] In Stock

SSA326A047

PLUG

Notes: ?, Plug for condensate/drain tray

[27] Contact

PHA504A401C

WIRING ASSY(LOUVER

Contact

Notes: LM1 FLAP,LM2 LOUVER(L),LM3 LOUVER(R)- CNJ1 PWB

[28] Contact

RLF111A100D

BASE ASSY

Contact

[29] In Stock

RLF129A118

CASE ASSY(U)

Notes: Upper Fan motor housing Show Image

[30] In Stock

RLF129A102

CASE ASSY(L)

Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing

[31] In Stock

SSA431G053

IMPELLER

Notes: BARRELL FAN Show Image

[32] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[33] In Stock

SSA512T126F

MOTOR, DC

Notes: FOR IMPELLER

[34] In Stock

RLF032A100

PLATE,INSTALLATION

Notes: MOUNTING/INSTALLATION/BACKING PLATE

[35-36] In Stock

RLF132A101J

LID ASSY(TERMINAL)

Show Image

[36] Contact

RSA011H047D

LABEL,NOTICE

Contact

[37] In Stock

SSA913A007

SCREW

Notes: 4x12, 1pc ONLY Show Image
