FDCVA802HESAR FAN AND COMPRESSOR

Name: FDCVA802HESAR FAN AND COMPRESSOR
SKU: FDCVA802HESAR FAN AND COMPRESSOR
Availability: InStock

FDCVA802HESAR FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

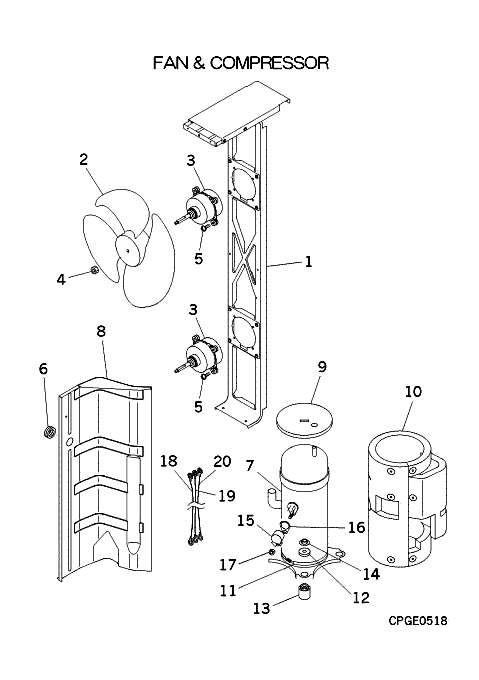

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCA116A109F

BASE,MOTOR

Contact

[2] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[3] In Stock

SSA512T076BA

MOTOR,DC

[4] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[5] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[6] In Stock

S751W30X

GROMMET V14

Notes: D35, ***SOLD INDIVIDUALLY*** Show Image

[7] In Stock

AGT201A728DN

COMPRESSOR

Notes: GT-C5150ND70, ***COMPRESSORS CANNOT BE RETURNED***

[8] Contact

PCA141A080H

PLATE ASSY,BAFFLE

Contact

[9] Contact

PCA151D034A

INSULATO CO

Contact

Notes: UPPER

[10] Contact

PCA151D075A

INSULATION,COMP

Contact

[11] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[12] In Stock

SSA941C289

CUSHION RU

Notes: UPPER Show Image

[13] In Stock

SSA941C285G

CUSHION RUB

Notes: LOWER, LENGTH 6CM Show Image

[14] In Stock

SSA914C033

NUT

Notes: 1pc

[15] In Stock

AGT947K100

COVER TERMINAL

Show Image

[16] In Stock

AGT932C100

GASKET COVER

Show Image

[17] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[18] In Stock

PCA504A247DJ

HARNESS ASSY

Notes: !U Show Image

[19] In Stock

PCA504A247DK

HARNESS ASSY

Notes: !V Show Image

[20] In Stock

PCA504A247DL

HARNESS ASSY

Notes: !W

[21] In Stock

W200G06

WASHER

Notes: FOR FAN MOTOR, 1pc ONLY
