FDCA100VSA-W/A HEAT EXCH. ASSY

FDCA100VSA-W/A HEAT EXCH. ASSY

FDCA100VSA-W/A HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

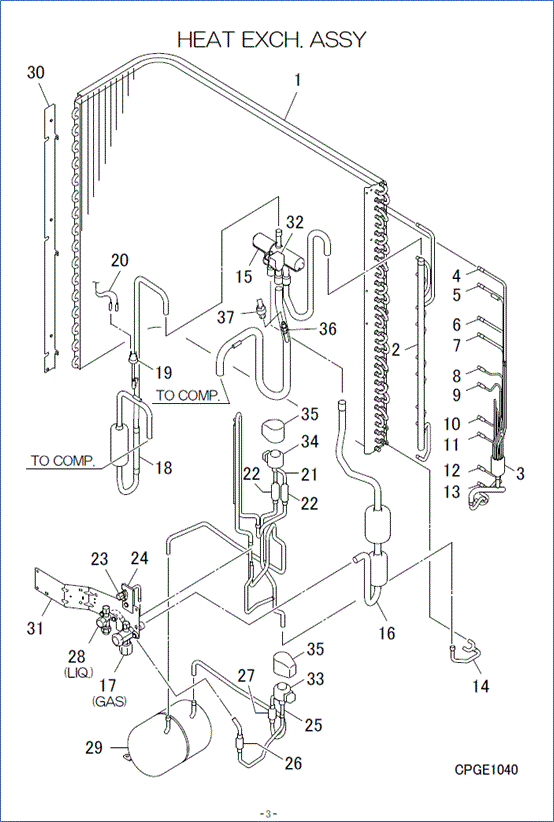

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] In Stock
PCA301A144G
HEAT EXCH AIR
[2] Contact
PCA315D172C
HEADER ASSY,GAS
Contact
[3] Contact
SSA315A037A
DISTRIBUTOR
Contact
[3-13] Contact
PCA315A082B
DISTRIBUTOR ASSY
Contact
[4] Contact
PCA315B795
CAPILLARY ASSY(1)
Contact
Notes: D2.8??4.0 L300, !D2.8XD4.0 L300
[5] Contact
PCA315B796
CAPILLARY ASSY(2)
Contact
Notes: D2.6??4.0 L300, !D2.6XD4.0 L300
[6] Contact
PCA315B797
CAPILLARY ASSY(3)
Contact
Notes: D2.8??4.0 L300, !D2.8XD4.0 L300
[7] Contact
PCA315B798
CAPILLARY ASSY(4)
Contact
Notes: D2.4??4.0 L300, !D2.4XD4.0 L300
[8] Contact
PCA315B955
CAPILLARY(5)
Contact
Notes: D2.8??4.0 L300
[9] Contact
PCA315B800
CAPILLARY(6)
Contact
Notes: D2.6??4.0 L300, !D2.6XD4.0 L300
[10] Contact
PCA315B801
CAPILLARY(7)
Contact
Notes: D2.8??4.0 L300, !D2.8XD4.0 L300
[11] Contact
PCA315B802
CAPILLARY(8)
Contact
Notes: D2.6??4.0 L300, !D2.6XD4.0 L300
[12] Contact
PCA315B803
CAPILLARY(9)
Contact
Notes: D2.8??4.0 L300, !D2.8XD4.0 L300
[13] Contact
PCA315B831
CAPILLARY ASSY(10)
Contact
Notes: D2.6??4.0 L300, !D2.6XD4.0 L300
[14] Contact
PCA321C813A
PIPE ASSY
Contact
[15] In Stock
SSA382C093
VALVE,S(4WAY)
Notes: 20S
[16-17] Contact
PCA381A111
VALVE ASSY,SERVICE
Contact
[17] In Stock
PCA381A112
VALVE,SERVICE(5/8",1"
Notes: GAS
[18] In Stock
SSA385A017
VALVE CHECK
Show Image
SSA385A017
[18-19] Contact
PCA321D338
PIPE(D)
Contact
[19] In Stock
SSA532A083
SWITCH HP
Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image
SSA532A083
[20] Contact
PCA504A313C
WIRING ASSY
Contact
[21] In Stock
SSA387F081
VALVE,BODY(EXP)
Notes: EEVH
[22] Out of Stock
SSA357A059AC
STRAINER
[23] Contact
PCA327B061
VALVE ASSY,SERVICE
Contact
[24] Contact
PCA116A370
BRACKET
Contact
[25] In Stock
SSA387F081
VALVE,BODY(EXP)
Notes: EEVC
[25-28] Contact
PCA387F088
VALVE ASSY,EXP(COO
Contact
[26] In Stock
SSA357A051A
STRAINER
Show Image
SSA357A051A
[27] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[28] In Stock
PCA381A066B
VALVE,SERVICE(3/8")
Notes: LIQ., LIQUID LINE SERVICE VALVE - 3/8" Show Image
PCA381A066B
[29] In Stock
SSA352B045D
RECEIVER
[30] In Stock
PCA141A100
PLATE,BAFFLE(L)
Notes: LENGTH 83.5CM Show Image
PCA141A100
[31] In Stock
RCR116A203A
BRACKET(VALVE)
[32] In Stock
PCB382F107AH
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S/ LENGTH 70.5CM Show Image
PCB382F107AH
[33] In Stock
PCA382F029
COIL,SOLENOID
Notes: FOR EEVC Show Image
PCA382F029
[34] Contact
SSA382F232B
COIL,SOLENOID
Contact
Notes: FOR EEVH
[35] Contact
PCA151C011
COVER
Contact
[36] In Stock
PCA327B056
VALVE ASSY,SERVICE
Show Image
PCA327B056
[37] In Stock
SSA551D022B
SENSOR LP
Notes: HAS 3 WIRES, SHORTER CABLE THAN SUB PART (LOW PRESSURE TRANSDUCER) Show Image
SSA551D022B
