FDC450KXRE6/D CONTROL AND PARTS SET

Name: FDC450KXRE6/D CONTROL AND PARTS SET
SKU: FDC450KXRE6/D CONTROL AND PARTS SET
Availability: InStock

FDC450KXRE6/D CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

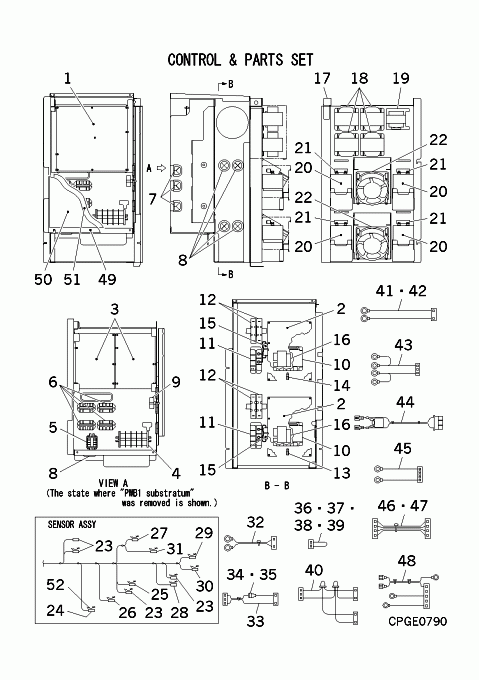

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB505A202GD

PWB ASSY CONTROL

Notes: ONLYFORSUPPLYPARTSPWB1, PWB1 - Control PWB Show Image

[1-48] Contact

PCB501A256G

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCB505A117AB

PWB ASSY(INV.)

Notes: PWB2-1,2, PWB2 - Inverter PWB Show Image

[3] In Stock

PCB505A135H

PWB ASSY(N.F)

Notes: PWB3-1,2, Noise Filter PWB

[4] In Stock

SSA561B712A

BLOCK TERMINAL

Notes: TB1 Show Image

[5] In Stock

SSA561B693W

BLOCK,TERMI

Notes: TB2 Show Image

[6] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2

[7] Contact

SSA947B017

GROMMET

Contact

[8] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[9] In Stock

SSA552D081

FILTER,NOISE

[10] In Stock

PCB008A120A

TRANSISTOR

Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR Show Image

[11] In Stock

PCB008A121A

DIODE STACK

Notes: DM, aka DIODE MODULE Show Image

[12] In Stock

SSA553A379

RESISTOR

Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image

[13] In Stock

SSA551A192W

SENSOR ASSY

Notes: THO-P1

[14] In Stock

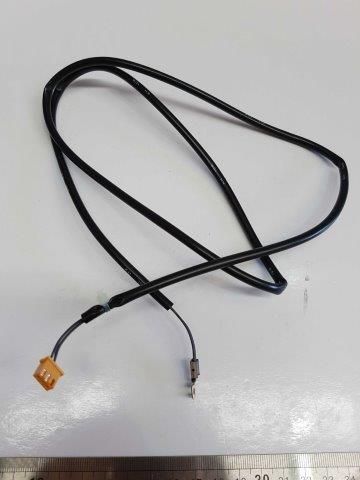

SSA551A192R

SENSOR ASSY

Notes: THO-P2, THO-P2 (POWER TRANSISTOR SENSOR)/ LENGTH 100CM Show Image

[15] In Stock

PCB555B003C

VARISTOR ASSY

Show Image

[16] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[17] Contact

PCB438A043B

DUCT ASSY

Contact

[18] In Stock

SSA554B097

REACTOR

Notes: L1-1,2,L2-1,2

[19] In Stock

SSA554B073

REACTOR

Notes: L3 Show Image

[20] In Stock

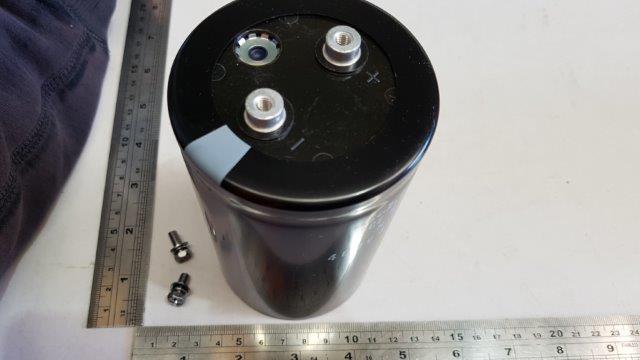

SSA552F427AK

CAPACITOR

Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image

[21] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[22] In Stock

PCB511A006F

MOTOR ASSY,

[23] In Stock

PSA551A016A

SENSOR ASSY

Notes: THO-A,D1,R1,S Show Image

[24] In Stock

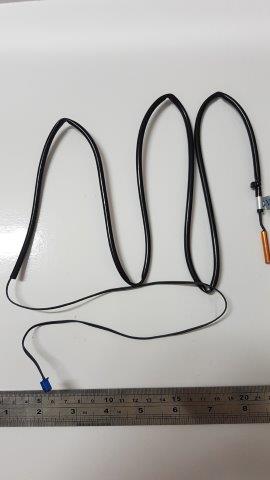

PSA551A015C

SENSOR ASSY

Notes: THO-C1, UNDER-DOME SENSOR Show Image

[25] In Stock

PSA551A015D

SENSOR ASSY

Notes: THO-C2, UNDER-DOME SENSOR Show Image

[26] In Stock

PSA551A015F

SENSOR ASSY

Notes: THO-D2, THO-D2 (DISCHARGE PIPE SENSOR 2) Show Image

[27] In Stock

PSA551A016G

SENSOR ASSY

Notes: THO-H, LENGTH 147.5CM Show Image

[28] In Stock

PSA551A016H

SENSOR ASSY

Notes: THO-R2, LENGTH 218.5CM Show Image

[29] In Stock

PSA551A015J

SENSOR ASSY

Notes: THO-R3, THO-R3/ LENGTH 22.5CM

[30] In Stock

PSA551A015K

SENSOR ASSY

Notes: THO-R4 Show Image

[31] In Stock

PSA551A015L

SENSOR ASSY

Notes: THO-SC, SUB-COOLING THERMISTOR 1 Show Image

[32] Contact

PCB504A308AF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- PWB1 CNX1

[33-35] Contact

PCB504A338

WIRING ASSY

Contact

Notes: PWB1 CNA1- USED BY UNIT ASSYPWB1 CNA3- USED BY UNIT ASSY

[34] In Stock

SSA564A112

FUSE

Notes: 5A, 5 AMP FUSE

[35] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[36] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[37] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[38] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[39] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[40] Contact

PCB504A308AH

WIRING ASSY

Contact

Notes: PWB1 CNN8- FMC1,FMC2

[41] Contact

PCB504A295

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- CNSL1

[42] Contact

PCB504A295B

WIRING ASSY

Contact

Notes: TB2 A2,TB2 B2- CNSL2

[43] Contact

PCB504A308AW

WIRING ASSY

Contact

Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1

[44] In Stock

PCB504A338W

WIRING ASSY

Notes: DM1G,DM1K-PWB2-1CNRDM2G,DM2K-PWB2-2CNR Show Image

[45] Contact

PCB504A338A

WIRING ASSY

Contact

Notes: IPM1 N,IPM1 P- PWB2-1 CANIPM2 N,IPM2 P- PWB2-2 CAN

[46] Contact

PCB504A308H

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2-2 CNI2

[47] Contact

PCB504A308J

WIRING ASSY

Contact

Notes: PWB2-1 CNI3- PWB2-2 CNI3

[48] In Stock

PCB504A308D

WIRING ASSY

Notes: Connects from PWB1 to PWB3 & L3 REACTOR Show Image

[49-51] Contact

PCB142A463A

COVERASSY(CONTROL

Contact

[52] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR ASSY Show Image
