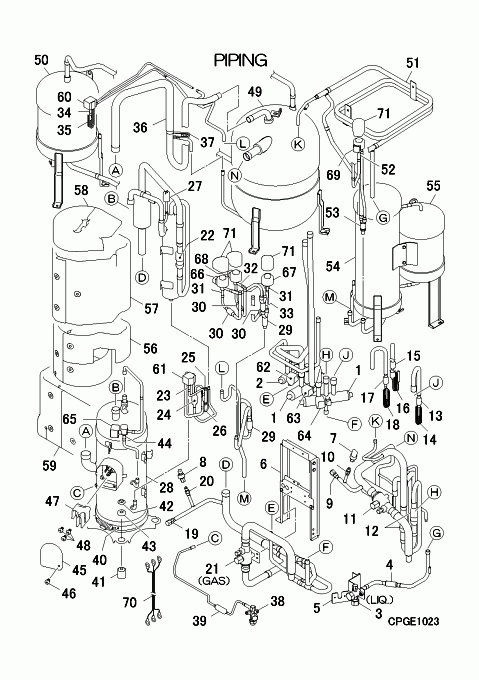

FDC400KXZRE2/1 PIPING

FDC400KXZRE2/1 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S1,20SL, Reversing Valve Body
[2] In Stock
SSA382C101
4 WAY VALVE
Notes: 20S3
[3] Contact
PCB381A077A
VALVE SERVI
Contact
Notes: LIQ.
[4] Contact
SSA357A059D
STRAINER
Contact
[5] Contact
PCB116B197
BRACKET
Contact
[6] Contact
PCB116B192
BRACKET ASSY
Contact
[7] In Stock
SSA551D022V
SENSOR,LP
Notes: PSL
[8] In Stock
SSA551D024A
SENSOR HP
Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[9] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[10] Contact
SSA327B076D
VALVE ASSY,SERVICE
Contact
[11] Contact
SSA381A758
VALVE,SERVICE
Contact
[12] Contact
SSA385A056
VALVE,CHECK
Contact
Substitute: SSA385A059
[13] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[13-14] Contact
PCB321G840
PIPE ASSY
Contact
[14] Contact
PCB315F330
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[15] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[15-16] Contact
PCB321G840A
PIPE ASSY
Contact
[16] Contact
PCB315F330A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[17] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[17-18] Contact
PCB321G840B
PIPE ASSY
Contact
[18] Contact
PCB315F330
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[19] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[20] Contact
SSA327B076D
VALVE ASSY,SERVICE
Contact
[21] Contact
SSA381A758
VALVE,SERVICE
Contact
Notes: GAS
[22] Contact
SSA385A056
VALVE,CHECK
Contact
Substitute: SSA385A059
[22-27] Contact
PCB354A065
SEPARATOR ASSY,OIL
Contact
[23] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[23-26] Contact
PCB382A252
VALVE ASSY
Contact
[24] In Stock
SSA357A053A
STRAINER
Show Image
SSA357A053A
[25] Contact
PCB315F149
CAPILLARY
Contact
Notes: !D1.0XD3.2 L500
[26] Contact
PCB315F214
CAPILLARY
Contact
Notes: !D1.5XD3.2 L200
[27] In Stock
SSA532A085NB
SWITH HP
Notes: 63H1-1 Show Image
SSA532A085NB
[28] In Stock
AGF201A858DV
COMPRESSOR ASSY
Notes: GUC5185ND47B, ***COMPRESSORS CANNOT BE RETURNED***
[29] In Stock
SSA357A054
STRAINER
Show Image
SSA357A054
[30] Out of Stock
SSA357A051A
STRAINER
Show Image
SSA357A051A
[31] In Stock
SSA387F044
EXP VALVE
Notes: EEVH1,2, EEV Body Show Image
SSA387F044
[32] In Stock
SSA387F045
VALVE EXPAN
Notes: EEVH3 Show Image
SSA387F045
[33] In Stock
SSA357A055
STRAINER
Show Image
SSA357A055
[34] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV1, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[34-35] Contact
PCB382A260
VALVE ASSY(2WAY)
Contact
[35] Contact
PCB315F215
CAPILLARY
Contact
Notes: !D1.8XD3.2 L500
[36-37] Contact
PCB321G639
PIPE,SUCTION
Contact
[37] Contact
PCB315F151
CAPILLARY
Contact
Notes: !D2.4XD4.0 L350
[38] Contact
PCB381A092
VALVE,SERVICE
Contact
[39] In Stock
SSA357A059A
STRAINER
Show Image
SSA357A059A
[40] In Stock
PCA541B011AT
HEATER ASSY(CRANK)
Show Image
PCA541B011AT
[41] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[42] In Stock
SSA914C033
NUT
Notes: 1pc
[43] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY Show Image
SSA915H042
[44] Contact
SSA382A257
VALVE(2WAY)
Contact
Notes: 20UF
[45] Contact
AGF947K102
COVER,TERMINAL
Contact
[46] Out of Stock
H051D05X008
SCREW
Notes: 1pc ONLY
[47] Contact
ASA561B005
BLOCK,TERMINAL
Contact
[48] Contact
ASA912A001
SCREW,PAN-CRS
Contact
Notes: M5X8, 1pc ONLY
[49] Contact
SSA351A234S
ACCUMULATOR
Contact
[50] In Stock
SSA351A235C
ACCUMULATOR(SUB)
[51] Contact
PCB303A041A
HEAT EXCH ASSY(LIQ
Contact
[52] In Stock
SSA387F045A
VALVE EXPA
Notes: EEVSC, EEVC
[53] In Stock
SSA357A055
STRAINER
Show Image
SSA357A055
[54] Contact
PCB352A006H
RECEIVER ASSY
Contact
[55] Contact
PCB352A006K
RECEIVER ASSY
Contact
[56] Contact
PCB151D125
INSULATION,COMP
Contact
[57] Contact
PCB151D126
INSULATION,COMP
Contact
[58] Contact
PCB151D127
INSULATION,COMP
Contact
[59] Contact
PCB151D128
INSULATION,COMP
Contact
[60] In Stock
PCB382F119DA
COIL ASSY,SOLENOID
Notes: FOR SV1, LENGTH 137CM Show Image
PCB382F119DA
[61] In Stock
PCB382F119DY
COIL ASSY,SOLENOID
Notes: FOR SV6 Show Image
PCB382F119DY
[62] Contact
PCB382F119DZ
COIL ASSY,SOLENOID
Contact
Notes: FOR 20S3
[63] Contact
PCB382F119FL
COIL ASSY,SOLENOID
Contact
Notes: FOR 20S1
[64] Contact
PCB382F119FP
COIL ASSY,SOLENOID
Contact
Notes: FOR 20SL
[65] In Stock
PCB382F119DV
COIL ASSY,SOLENOID
Notes: FOR 20UF Show Image
PCB382F119DV
[66] In Stock
SSA382F212Z
COIL,SOLENOID
Notes: FOR EEVH1 Show Image
SSA382F212Z
[67] Contact
SSA382F212AM
COIL,SOLENOID
Contact
Notes: FOR EEVH2
[68] Contact
SSA382F212AN
COIL,SOLENOID
Contact
Notes: FOR EEVH3
[69] Contact
SSA382F212AC
COIL,SOLENOID
Contact
Notes: FOR EEVSC
[70] In Stock
PCB504A331V
WIRING ASSY
Notes: FOR COMP. Show Image
PCB504A331V
[71] Contact
PCA151C011
COVER
Contact
