FDC280KXZRE2/1 CONTROL AND PARTS SET

Name: FDC280KXZRE2/1 CONTROL AND PARTS SET
SKU: FDC280KXZRE2/1 CONTROL AND PARTS SET
Availability: InStock

FDC280KXZRE2/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

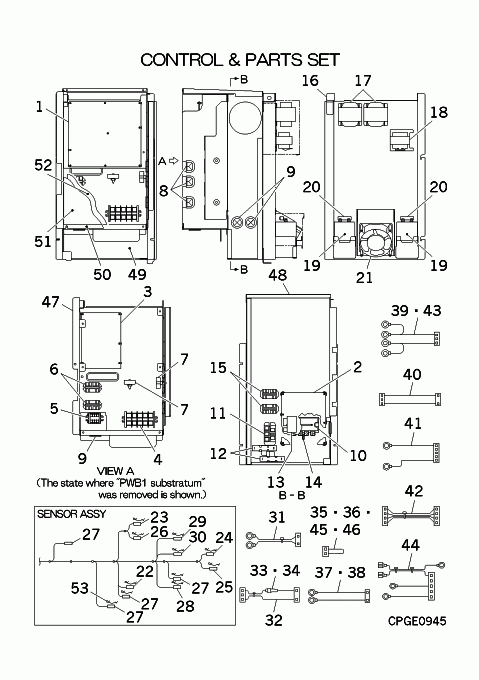

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB505A202TG

PWB ASSY CONTROL

Notes: ONLY FOR SUPPLAY PARTS PWB1

[1-49] Contact

PCB501A274HB

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCB505A267AA

PWB ASSY (INV.)

Notes: ONLY FOR SUPPLAY PARTS PWB2

[3] In Stock

PCB505A268AA

PWB ASSY (N.F)

Notes: ONLY FOR SUPPLAY PARTS PWB3

[4] In Stock

SSA561B712A

BLOCK TERMINAL

Notes: TB1 Show Image

[5] In Stock

SSA561B693W

BLOCK,TERMI

Notes: TB2 Show Image

[6] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,2, 52X1,52X2

[7] In Stock

SSA552D081

FILTER,NOISE

[8] Contact

SSA947B017

GROMMET

Contact

[9] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[10] In Stock

PCB008A213C

TRANSISTOR(POWER)

Notes: ONLY FOR SUPPLAY PARTS TM, IPM, Comes with heat paste and screws Show Image

[11] In Stock

PCB008A212A

DIODE(MODULE)

Notes: ONLY FOR SUPPLAY PARTS DM Show Image

[12] Contact

SSA553A577

RESISTOR

Contact

Notes: R1-1,2

[13] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[14] In Stock

SSA551A192W

SENSOR ASSY

Notes: THO-P1

[15] In Stock

SSA521A727

RELAY

Notes: 52X1-3,4, 52X1/ LENGTH 7CM Show Image

[16] Contact

PCB438A043A

DUCT ASSY

Contact

[17] Out of Stock

SSA554B097A

REACTOR

Substitute: SSA554B146A Notes: L1-1,2, L1 Show Image

[18] In Stock

SSA554B073

REACTOR

Notes: L3 Show Image

[19] In Stock

SSA552F427AK

CAPACITOR

Notes: C1-1,2, 4700 MICRO FARADS Show Image

[20] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[21] In Stock

PCB511A006F

MOTOR ASSY,

[22] In Stock

PSA551A015B

SENSOR ASSY

Notes: THO-C1 Show Image

[23] In Stock

PSA551A016S

SENSOR ASSY

Notes: THO-H Show Image

[24] In Stock

PSA551A015J

SENSOR ASSY

Notes: THO-R3, THO-R3/ LENGTH 22.5CM

[25] In Stock

PSA551A015K

SENSOR ASSY

Notes: THO-R4 Show Image

[26] In Stock

PSA551A015V

SENSOR ASSY

Notes: THO-SC Show Image

[27] Contact

PCB551A034V

SENSOR ASSY

Contact

Substitute: PSA551A016V Notes: THO-A,D1,R2,S

[28] In Stock

PSA551A016T

SENSOR ASSY

Notes: THO-R2 Show Image

[29] In Stock

PSA551A016R

SENSOR ASSY

Notes: THO-R5 Show Image

[30] In Stock

PSA551A015T

SENSOR ASSY

Notes: THO-R6 Show Image

[31] Contact

PCB504A308AF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- PWB1 CNX1

[32-34] In Stock

PCB504A373AG

WIRING ASSY

Notes: PWB1 CNA1-PWB1 CNA3- Show Image

[33] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[34] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[35] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[36] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[37] Contact

PCB504A284BF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- CNSL1

[38] Contact

PCB504A284BG

WIRING ASSY

Contact

Notes: TB2 A2,TB2 B2- CNSL2

[39] Contact

PCB504A308AW

WIRING ASSY

Contact

Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1

[40] Contact

PCB504A308BA

WIRING ASSY

Contact

Notes: PWB1 CNN8- FMC1

[41] Contact

PCB504A331N

WIRING ASSY

Contact

Notes: IPM1 P,IPM1 N- PWB2-1 CNA

[42] In Stock

PCB504A403

WIRING ASSY

Notes: PWB1 CNI1- PWB2-1 CNI2 Show Image

[43] Contact

PCB504A338L

WIRING ASSY

Contact

Notes: 52X1-4 5,52X1-3 5,52X1-3 6,52X1-4 6- PWB2-1 CNR

[44] In Stock

PCB504A308D

WIRING ASSY

Notes: Connects from PWB1 to PWB3 & L3 REACTOR Show Image

[45] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[46] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[47] Contact

PCB142A562A

BOX ASSY(MAIN)

Contact

[48] Contact

PCB142A466DA

BOX ASSY(INV)

Contact

[49] Contact

PCB142A460

COVER

Contact

[50-52] Contact

PCB142A463AD

COVER ASSY(CONTROL

Contact

[51] Contact

PCB011G018AA

LABEL,WIRING

Contact

Notes: !SURFACE ATTACHMENT

[52] Contact

PCB011G018A

LABEL,WIRING

Contact

Notes: !BACK ATTACHMENT

[53] In Stock

PSA941F001

SPRING LEAF

Notes: FOR SENSOR ASSY, 1pc ONLY Show Image

[54] Contact

PSB011F375B

LABEL,MODEL NAME

Contact

Notes: !
