FDC224KXZRE2/A PIPING

FDC224KXZRE2/A PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S1,20SL, Reversing Valve Body
[2] In Stock
SSA382C101
4 WAY VALVE
Notes: 20S3
[3] Contact
PCB381A074
VALVE,SERVICE(3/8"
Contact
Notes: LIQ.
[4] Contact
SSA357A059D
STRAINER
Contact
[5] Contact
PCB116B197
BRACKET
Contact
[6] Contact
PCB116B192
BRACKET ASSY
Contact
[7] In Stock
SSA551D022V
SENSOR,LP
Notes: PSL
[8] In Stock
SSA551D024A
SENSOR HP
Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[9] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV11, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[10] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[11] Contact
SSA327B076D
VALVE ASSY,SERVICE
Contact
[12] Contact
SSA381A758
VALVE,SERVICE
Contact
[13] Contact
SSA385A059
VALVE,CHECK
Contact
[14] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[14-15] Contact
PCB321G840
PIPE ASSY
Contact
[15] Contact
PCB315F330
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[16] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[16-17] Contact
PCB321G840A
PIPE ASSY
Contact
[17] Contact
PCB315F330A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[18] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[18-19] Contact
PCB321G840B
PIPE ASSY
Contact
[19] Contact
PCB315F330
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[20] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[21] Contact
SSA327B076D
VALVE ASSY,SERVICE
Contact
[22] In Stock
SSA357A059T
STRAINER
Show Image
SSA357A059T
[23] Contact
SSA381A758
VALVE,SERVICE
Contact
Notes: GAS
[24] Contact
SSA385A059
VALVE,CHECK
Contact
[24-28] Contact
PCB354A068
OIL SEPARATOR
Contact
[24-29] Contact
PCB354A067
SEPARATOR ASSY,OIL
Contact
[25] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[25-28] Contact
PCB382A255
VALVE ASSY
Contact
[26] Contact
PCB315F153
CAPILLARY
Contact
Notes: !D1.0XD3.2 L500
[27] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[28] In Stock
SSA357A053A
STRAINER
Show Image
SSA357A053A
[29] In Stock
SSA532A085NB
SWITH HP
Notes: 63H1-1 Show Image
SSA532A085NB
[30] In Stock
AGT201C824FV
COMPRESSOR ASSY
Notes: GTC5150NC47BF, ***COMPRESSORS CANNOT BE RETURNED***
[31] In Stock
SSA357A054
STRAINER
Show Image
SSA357A054
[32] Out of Stock
SSA357A051A
STRAINER
Show Image
SSA357A051A
[33] In Stock
SSA387F045
VALVE EXPAN
Notes: EEVH1,2,3 Show Image
SSA387F045
[34] In Stock
SSA357A055
STRAINER
Show Image
SSA357A055
[35] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV1, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[35-36] Contact
PCB382A259
VALVE ASSY(2WAY)
Contact
[36] Contact
PCB315B817
CAPILLARY
Contact
Notes: !D1.3XD3.2 L500
[37-38] Contact
PCB321G133C
PIPE,SUCTION(2)
Contact
[38] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[39] Contact
PCB381A092
VALVE,SERVICE
Contact
[40] In Stock
SSA357A059A
STRAINER
Show Image
SSA357A059A
[41] In Stock
PCA541B031
HEATER ASSY(CRANK)
Show Image
PCA541B031
[42] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[43] In Stock
SSA914C033
NUT
Notes: 1pc
[44] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY Show Image
SSA915H042
[45] In Stock
ASA561B002
BLOCK,TERMINAL
[46] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: M5X8, 1pc ONLY
[47] In Stock
AGT947K101
COVER,TERMINAL
[48] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[49] Contact
AGT151A101
GASKET
Contact
[50] Contact
SSA351A234P
ACCUMULATOR
Contact
[51] Contact
PCB303A041A
HEAT EXCH ASSY(LIQ
Contact
[52] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEVSC, 'BODY' ONLY. Does NOT include coil
[53] In Stock
SSA357A055
STRAINER
Show Image
SSA357A055
[54] Contact
PCB352A006G
RECEIVER ASSY
Contact
[55] In Stock
PCA151D034
INSULATO CO
[56] In Stock
PCB151D088B
INSULATION,COMP
[57] In Stock
PCB151D100A
INSULATION,COMP
[58] Contact
PCB151D117A
INSULATION,COMP
Contact
[59] In Stock
PCB382F119DA
COIL ASSY,SOLENOID
Notes: FOR SV1, LENGTH 137CM Show Image
PCB382F119DA
[60] In Stock
PCB382F119DD
COIL ASSY,SOLENOID
Notes: FOR SV6 Show Image
PCB382F119DD
[61] In Stock
PCB382F119FH
COIL ASSY,SOLENOID
Notes: FOR SV11
[62] Contact
PCB382F119DZ
COIL ASSY,SOLENOID
Contact
Notes: FOR 20S3

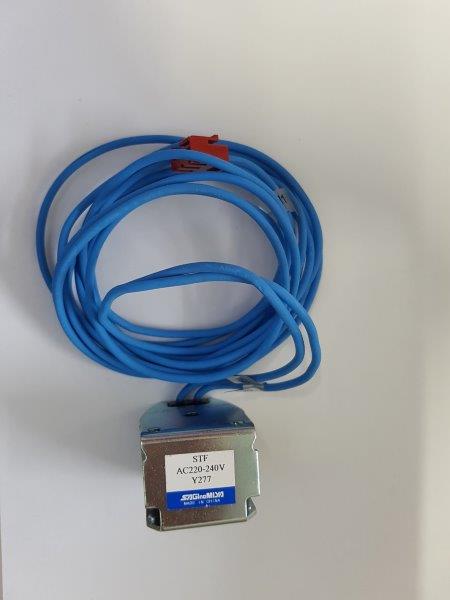

[63] Contact
PCB382F119FL
COIL ASSY,SOLENOID
Contact
Notes: FOR 20S1

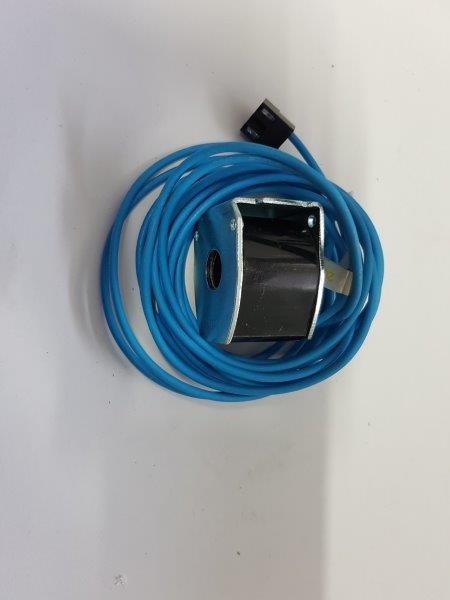

[64] Contact
PCB382F119FP
COIL ASSY,SOLENOID
Contact
Notes: FOR 20SL
[65] In Stock
SSA382F212Z
COIL,SOLENOID
Notes: FOR EEVH1 Show Image
SSA382F212Z
[66] Contact
SSA382F212AM
COIL,SOLENOID
Contact
Notes: FOR EEVH2
[67] Contact
SSA382F212AN
COIL,SOLENOID
Contact
Notes: FOR EEVH3
[68] Contact
SSA382F210BK
COIL,SOLENOID
Contact
Notes: FOR EEVSC
[69] Contact
PCB504A338D
WIRING ASSY
Contact
Notes: FOR COMP.
[70] Contact
PCA151C011
COVER
Contact
SKU: FDC224KXZRE2/A PIPING Category:
