FDC100VS CONTROL AND PARTS SET

Name: FDC100VS CONTROL AND PARTS SET
SKU: FDC100VS CONTROL AND PARTS SET
Availability: InStock

FDC100VS CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

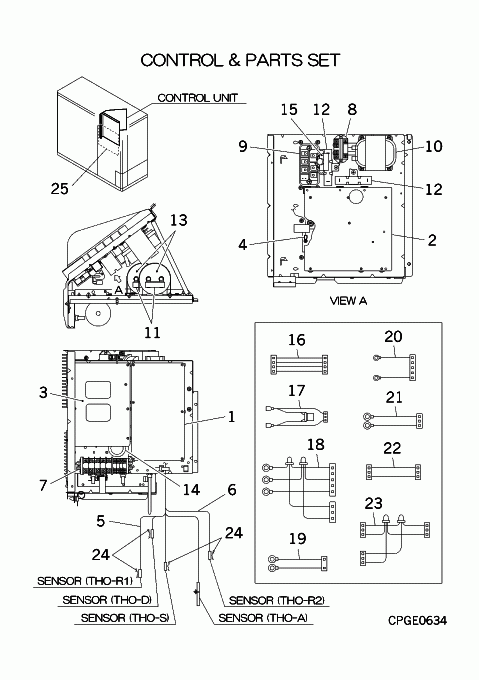

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A323JD

PWB ASSY (CONTROL)

Notes: ONLY SUPPLY PARTS PWB1, PWB1 - CONTROL BOARD - TECHNICIAN TO READ INSTALL INSTRUCTIONS

[1-23] Contact

PCA501A170

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCA505A108DG

PWB ASSY(INV)

Notes: ONLY SUPPLY PARTS PWB2, PWB2 - INVERTER BOARD Show Image

[3] In Stock

PCA505A128YH

PWB ASSY

Notes: PWB3 Show Image

[4] In Stock

SSA551A192K

SENSOR

Notes: THO-IPM, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image

[5] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[6] In Stock

PSA551A013D

SENSOR

Notes: THO-R2 Show Image

[7] In Stock

SSA561B693D

BLOCK,TERMINAL

Notes: TB Show Image

[8] In Stock

SSA521A715

RELAY

Notes: 52C Show Image

[9] In Stock

PCB008A121C

PARTS SET

Notes: DIODE MODULE Show Image

[10] Out of Stock

SSA554B097A

REACTOR

Substitute: SSA554B146A Notes: L1 Show Image

[11] In Stock

SSA553A380

RESISTOR

Notes: R3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[12] In Stock

SSA553A379

RESISTOR

Notes: R1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image

[13] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[14] Contact

S750W30

GROMMET

Contact

Notes: D35

[15] In Stock

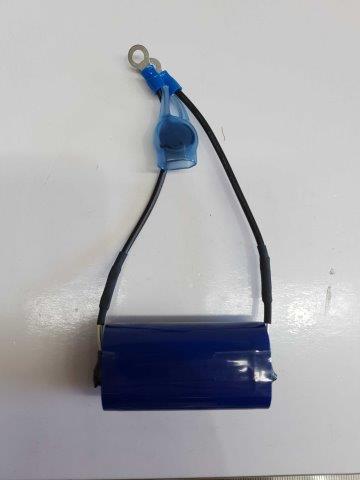

PCA555B002

VARISTOR ASSY

Notes: DM Show Image

[16] In Stock

PCA504A264GA

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2 Show Image

[17] In Stock

PCA504A256AY

WIRING ASSY

Notes: DM G,DM K- PWB2 CNR, DM G,DM K-PWB2 CNR‚ / LENGTH 38.5CM Show Image

[18] Contact

PCA504A264FP

WIRING ASSY

Contact

Notes: PWB3 L1O,PWB3 NO,PWB3 L2O-PWB1 CNW,PWB2 CNW1

[19] Contact

PCA504A264FL

WIRING ASSY

Contact

Notes: 52C 5,52C 6- PWB1 CNM1, 52C 5,52C 6-PWB1 CNM1

[20] Contact

PCA504A256Z

WIRING ASSY

Contact

Notes: C1 +,C1 -- PWB2 CNW2, C1 +,C1 --PWB2 CNW2

[21] Contact

PCA504A264GC

WIRING ASSY

Contact

Notes: TB 2,TB 3- PWB3 CN1

[22] Contact

PCA504A264GF

WIRING ASSY

Contact

Notes: PWB3 CN2-1- PWB1 CNW2

[23] Contact

PCA504A256AK

WIRING ASSY

Contact

Notes: PWB1 CNA2,PWB1 CNA1- PWB2 CN01 1 3

[24] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THO-R1,R2,D,S Show Image

[25] Contact

PSC011G553C

LABEL,WIRING

Contact

Notes: !

[26] Contact

PSB011F034F

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDC100VS CONTROL AND PARTS SET Category: Uncategorised
