FDC100VN CONTROL AND PARTS SET

Name: FDC100VN CONTROL AND PARTS SET
SKU: FDC100VN CONTROL AND PARTS SET
Availability: InStock

FDC100VN CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

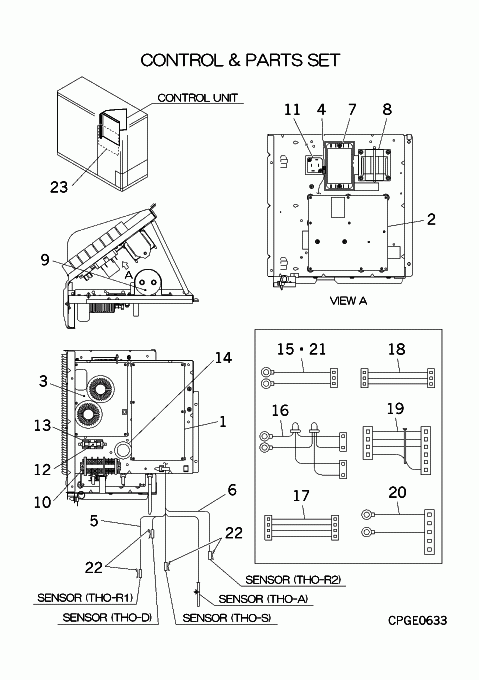

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A323JD

PWB ASSY (CONTROL)

Notes: PWB1 CONTROL, PWB1 - CONTROL BOARD - TECHNICIAN TO READ INSTALL INSTRUCTIONS

[1-21] Contact

PCA501A169

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCA505A194SJ

PWB ASSY (INV.)

Notes: PWB2, INVERTER

[3] In Stock

PCA505A127YB

PWB ASSY (N.F)

Notes: PWB3, PWB3 NOISE FILTER

[4] In Stock

SSA551A192L

SENSOR

Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image

[5] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[6] In Stock

PSA551A013D

SENSOR

Notes: THO-R2 Show Image

[7] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) Show Image

[8] In Stock

SSA554B092

REACTOR

Notes: L1

[9] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[10] In Stock

SSA561B693C

BLOCK TERMINAL

Notes: TB Show Image

[11] In Stock

PCA008A276A

PARTS SET(DIODE)

Notes: DIODE MODULE & HEAT PASTE Show Image

[12] In Stock

PCA504A300

FUSE ASSY

Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)

[13] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[14] Contact

S750W30

GROMMET

Contact

Notes: D35

[15] Out of Stock

PCA504A264FW

WIRING ASSY

Notes: TB 2,TB 3- PWB1 CNW2 Show Image

[16] In Stock

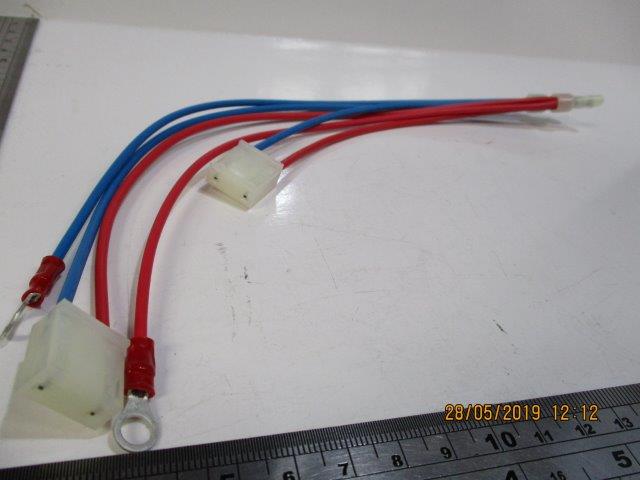

PCA504A242AC

WIRING ASSY

Notes: C1 +1,C1 --PWB1 CNA1,PWB1 CNA2 Show Image

[17] In Stock

PCA504A264GA

WIRING ASSY

Notes: PWB1 CNI1-PWB2 CNI2, PWB1 CNI1- PWB2 CNI2 Show Image

[18] In Stock

PCA504A264GB

WIRING ASSY

Notes: PWB1 CNI3-PWB2 CNI4, PWB1 CNI3- PWB2 CNI4‚ / LENGTH 38CM Show Image

[19] In Stock

PCA504A246BP

WIRING ASSY

Notes: PWB2 CNACT1-LACT CNACT

[20] In Stock

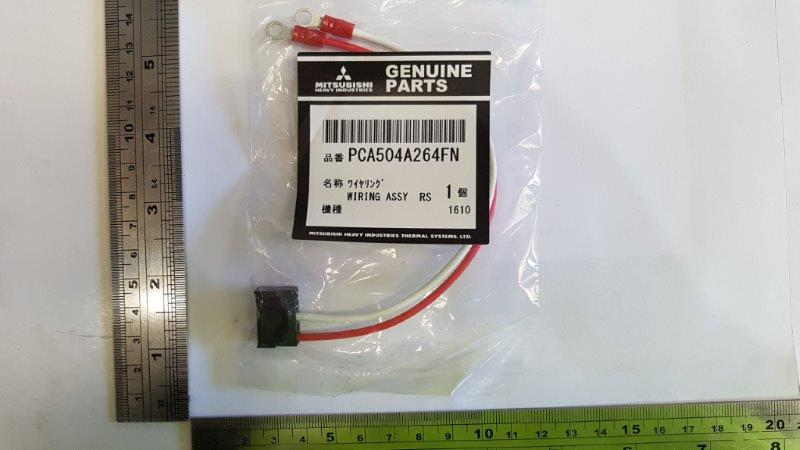

PCA504A264FN

WIRING ASSY

Notes: PWB3 L1O,PWB3 NO-PWB1 CNW Show Image

[21] In Stock

PCA504A246CC

WIRING ASSY

Notes: PWB3 CN1-TB 1,TB 2 Show Image

[22] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[23] Contact

PSC011G553B

LABEL,WIRING

Contact

[24] Contact

PSB011F034B

LABEL,MODEL NAME

Contact
