ESA30EH2-25/1 CONTROL AND PARTS SET

Name: ESA30EH2-25/1 CONTROL AND PARTS SET
SKU: ESA30EH2-25/1 CONTROL AND PARTS SET
Availability: InStock

ESA30EH2-25/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCM505A019BA

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1

[1-57] Contact

PCM501A008

CONTROL UNIT

Contact

Notes: !

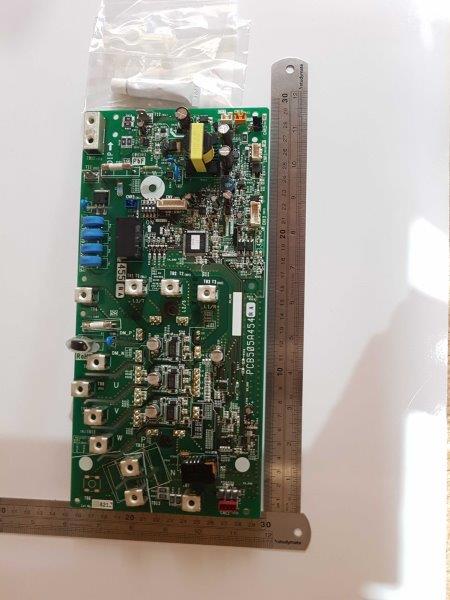

[2] In Stock

PCB505A456BA

PWB ASSY(INV.)

Notes: ONLY FOR SUPPLY PARTS PWB2

[3] In Stock

PCB505A035H

PWB ASSY(N.F)

Notes: PWB3, PWB3‚ - NOISE FILTER Show Image

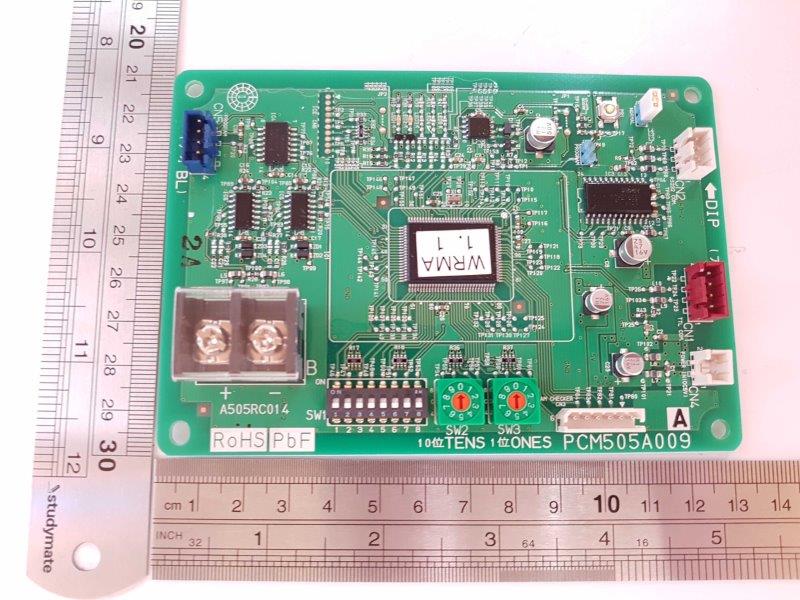

[4] In Stock

PCM505A009A

PWB ASSY(REMOTE)

Notes: ONLY FOR SUPPLY PARTS PWB4

[5] In Stock

PCB505A114B

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS PWB5

[6] In Stock

SSA521A053A

RELAY

Show Image

[7] Out of Stock

SSA561B712D

CLOCK TERMI

Substitute: OUT OF PRODUCTION Notes: TB1 Show Image

[8] Contact

SSA561B693AN

BLOCK,TERMINAL

Contact

Notes: TB2

[9] In Stock

SSA554B073

REACTOR

Show Image

[10] In Stock

SSA553A549

RESISTOR

Show Image

[11] Contact

SSA947B017

GROMMET

Contact

[12] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[13] Contact

SSA947B121

GROMMET

Contact

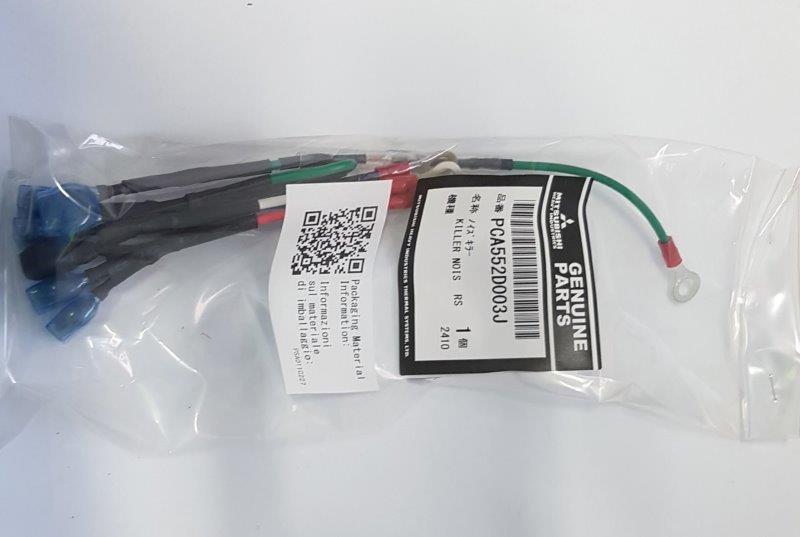

[14] Contact

PCA552D003J

KILLER,NOISE ASSY

Contact

[15] In Stock

SSA552D081

FILTER,NOISE

[16] Contact

SSA554B123

REACTOR

Contact

[17] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[18] In Stock

SSA551A192AA

SENSOR ASSY

Notes: THO-P1

[19] In Stock

SSA521A715A

RELAY

Notes: 52X1-1, 52X1,52X2

[20] Contact

SSA554D244

FILTER,NOISE

Contact

[21] Contact

SSA552F983

CAPACITOR

Contact

Notes: C1-1,1-2

[22] Contact

SSA553A661KP

RESISTOR

Contact

Notes: R1-1,1-2

[23] Contact

SSA551J030A

SENSOR,CURRENT

Contact

[24] In Stock

PCM551A002

SENSOR ASSY

Notes: THO-G1,G3 Show Image

[25] In Stock

PCM551A002A

SENSOR ASSY

Notes: THO-A,R1,R2,R3,R4 Show Image

[26] In Stock

PCM551A002B

SENSOR ASSY

Notes: THO-M1,IN1 Show Image

[27] In Stock

PCM551A002C

SENSOR ASSY

Notes: THO-D1,S1,C1 Show Image

[28] In Stock

PCM551A002D

SENSOR ASSY

Notes: THO-W1,W2 Show Image

[29] In Stock

PCM504A006G

WIRING ASSY

Notes: TB2 1,TB2 B- PWB1 CNX1 Show Image

[30] In Stock

PCM504A006H

WIRING ASSY

Notes: TB2 X,TB2 Y- PWB1 CNB1 Show Image

[31] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[32] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[33] In Stock

PCM504A006L

WIRING ASSY

Notes: PWB5 CN13-2- PWB1 CNDR,PWB1 CN13V Show Image

[34] In Stock

PCM504A006M

WIRING ASSY

Notes: PWB1 CN15V- PWB5 CN15V-2 Show Image

[35] In Stock

PCM504A006N

WIRING ASSY

Notes: PWB1 CN18V- PWB5 CN18V-2 Show Image

[36] In Stock

PCM504A006P

WIRING ASSY

Notes: PWB1 CNTH8- Show Image

[37] In Stock

PCM504A006R

WIRING ASSY

Notes: PWB1 CNL4- Show Image

[38] In Stock

PCM504A006S

WIRING ASSY

Notes: PWB1 CNTH6- Show Image

[39] In Stock

PCM504A006T

WIRING ASSY

Notes: PWB1 CNTH7- Show Image

[40] In Stock

PCM504A006V

WIRING ASSY

Notes: PWB1 CNN8,PWB1 CNN9,PWB1 CNN10,PWB1 CNN11-, LENGTH 31CM Show Image

[41] In Stock

PCM504A018K

WIRING ASSY

Notes: PWB5 CNA1-2- FM1 CNDC1, LENGTH 82CM Show Image

[42] In Stock

PCM504A018L

WIRING ASSY

Notes: PWB5 CNA2-2- FM2 CNDC2 Show Image

[43] In Stock

PCM504A018N

WIRING ASSY

Notes: TB2 1,TB2 2- PWB5 CNW1-2

[44] Contact

PCM504A034K

WIRING ASSY

Contact

Notes: 52X1 5,52X1 6- PWB1 CNM1

[45] Contact

PCM504A034L

WIRING ASSY

Contact

[46] Contact

PCM504A034M

WIRING ASSY

Contact

[47] Contact

PCM504A034G

WIRING ASSY

Contact

Notes: PWB1 CN11V- PWB2 CNR3

[48] Contact

PCM504A034H

WIRING ASSY

Contact

Notes: PWB2 CNC3- CT1

[49] Contact

PCM504A034J

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2 CNI2

[50-52] Contact

PCM504A020C

WIRING ASSY

Contact

Notes: DHX 3,TB2 3,E,TB2 4- HEATER ASSY,PWB1 CNW2,DHX 5

[51] In Stock

SSA564A139V

FUSE(CURRENT)

[52] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[53] In Stock

PCM504A008A

WIRING ASSY

Notes: DHX 7,DHX 8- CNDH, LENGTH 26CM Show Image

[54] Contact

PCM504A032

WIRING ASSY

Contact

[55] Contact

PCM142A011

COVER

Contact

[56] Contact

PCM142A052

BOX ASSY(INV)

Contact

[57] Contact

PCM142A049

BOX ASSY(MAIN)

Contact

[58] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[59] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[60] Contact

PCM504A006AA

WIRING ASSY

Contact

Notes: CNS3

[61] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THO-G1,G3,M1,IN1,D1,S1,C1,R1,R2,R3,R4,W1,W2 Show Image

[62] In Stock

SSA554A526

TRANSFORMER

Show Image

[62-63] Contact

PCM554A001

TRANSFORMER ASSY

Contact

[63] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[64-66] Contact

PCM142A012N

COVER ASSY(CONTROL

Contact

[65] Contact

PCM011G005

LABEL,WIRING

Contact

Notes: !SURFACE ATTACHMENT

[66] Contact

PCM011G005A

LABEL,WIRING

Contact

Notes: !BACK ATTACHMENT

[67] Contact

PCM011F023AB

LABEL,MODEL NAME

Contact

Notes: !
