ESA30E-25/B CONTROL AND PARTS SET

Name: ESA30E-25/B CONTROL AND PARTS SET
SKU: ESA30E-25/B CONTROL AND PARTS SET
Availability: InStock

ESA30E-25/B CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

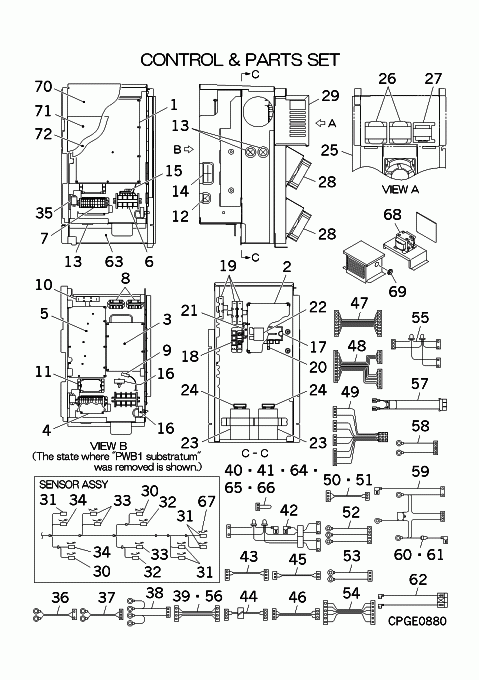

Check the parts position number [ ] matching with the drawing. Login to view prices.

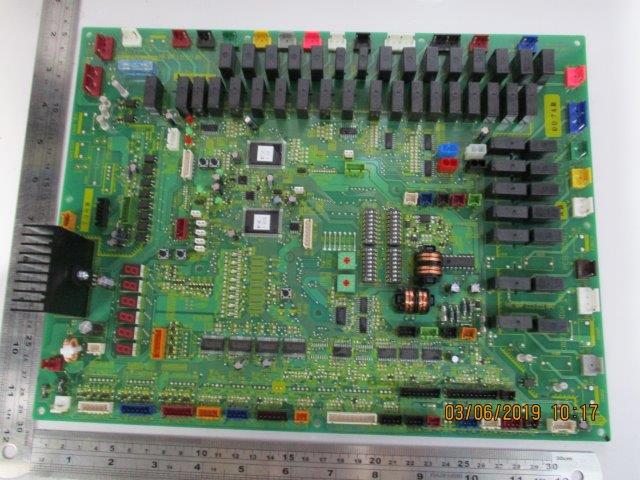

[1] In Stock

PCM505A008

PWB ASSY (CONTROL)

Notes: PWB1, MUST CONFIRM SERVICE CODE - PWB1 - CONTROL PWB Show Image

[1-63] Contact

PCM501A005D

CONTROL UNIT

Contact

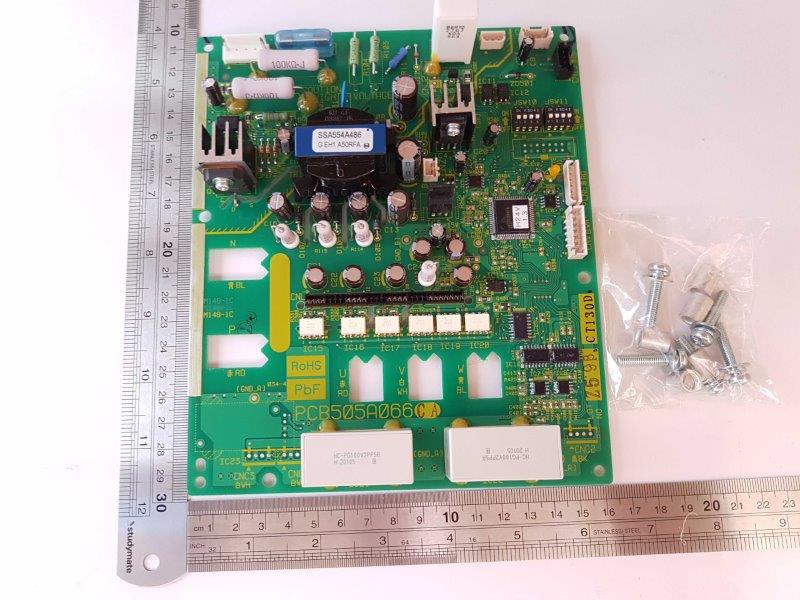

[2] In Stock

PCB505A107CA

PWB ASSY (INV.)

Notes: PWB2, PWB2 - Inverter PCB

[3] In Stock

PCB505A035H

PWB ASSY(N.F)

Notes: PWB3, PWB3‚ - NOISE FILTER Show Image

[4] In Stock

PCM505A006

PWB ASSY(WATER PUMP)

Notes: PWB4, PWB4 - WATER PUMP PWB

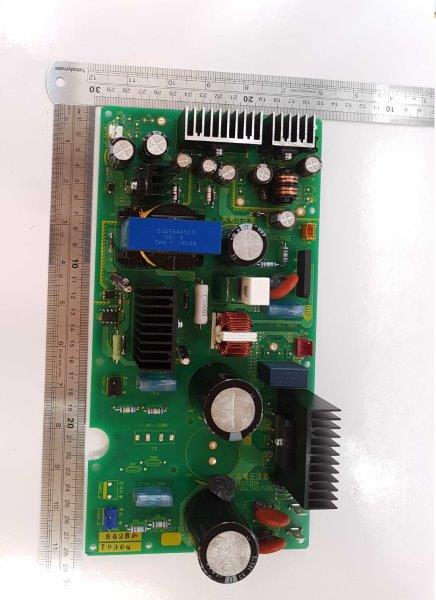

[5] In Stock

PCB505A114

PWB ASSY (POWER)

Notes: PWB5, PWB5 - POWER PWB

[6] Out of Stock

SSA561B712D

CLOCK TERMI

Substitute: OUT OF PRODUCTION Notes: TB1 Show Image

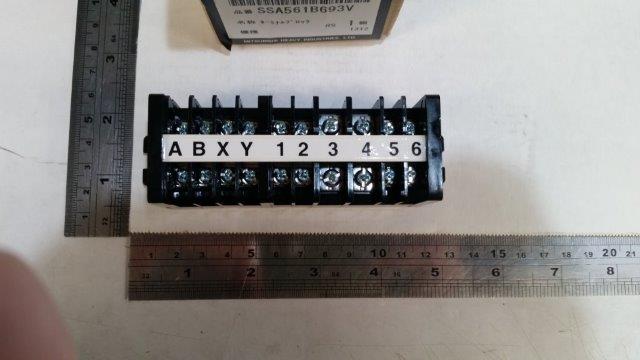

[7] Out of Stock

SSA561B693V

BLOCK,TERMI

Substitute: OUT OF PRODUCTION Notes: TB2 Show Image

[8] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2

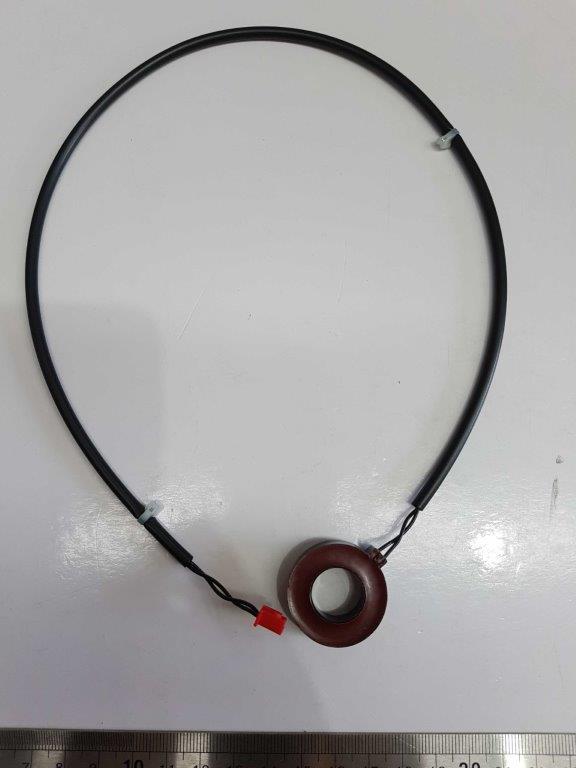

[9] In Stock

PCB554A021

TRANSFORMER ASSY

Notes: LENGTH 54CM Show Image

[10] In Stock

SSA553A549

RESISTOR

Show Image

[11] In Stock

PCM008A032

PART SET

Notes: FILTER,NOISE

[12] Contact

SSA947B017

GROMMET

Contact

[13] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[14] Contact

SSA947B121

GROMMET

Contact

[15] In Stock

PCA552D003C

KILLER,NOISE ASSY

Show Image

[16] In Stock

SSA552D081

FILTER,NOISE

[17] Out of Stock

PCB008A177B

TRANSISTOR POWER

Notes: TM Show Image

[18] In Stock

PCB008A121A

DIODE STACK

Notes: DM, aka DIODE MODULE Show Image

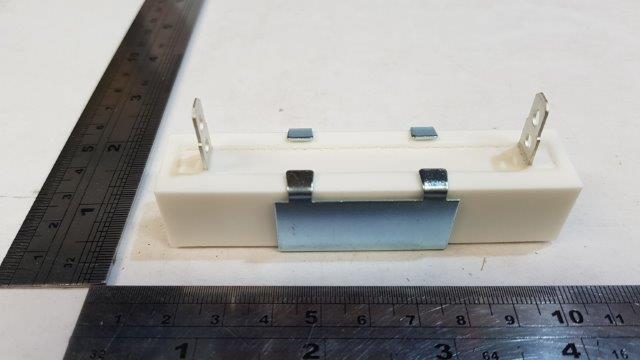

[19] In Stock

SSA553A536

RESISTOR

Notes: R1-1,2,3 Show Image

[20] In Stock

SSA551A192W

SENSOR ASSY

Notes: THO-P1

[21] In Stock

PCB555B003C

VARISTOR ASSY

Show Image

[22] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[23] In Stock

SSA552F427AK

CAPACITOR

Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image

[24] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[25] Contact

PCB438A033G

DUCT ASSY

Contact

[26] In Stock

SSA554B097

REACTOR

Notes: L1-1,2,L2-1,2

[27] In Stock

SSA554B073

REACTOR

Notes: L3 Show Image

[28] In Stock

PCB511A006D

MOTOR FAN

[29] Contact

PCB142A434

COVER

Contact

[30] In Stock

PCM551A002

SENSOR ASSY

Notes: THO-G1,G2 Show Image

[31] In Stock

PCM551A002A

SENSOR ASSY

Notes: THO-A,R1,R2,R3,R4 Show Image

[32] In Stock

PCM551A002B

SENSOR ASSY

Notes: THO-M1,IN1 Show Image

[33] In Stock

PCM551A002C

SENSOR ASSY

Notes: THO-D1,S1,C1 Show Image

[34] In Stock

PCM551A002D

SENSOR ASSY

Notes: THO-W1,W2 Show Image

[35] In Stock

SSA521A053A

RELAY

Show Image

[36] In Stock

PCM504A006G

WIRING ASSY

Notes: TB2 1,TB2 B-PWB1 CNX1 Show Image

[37] In Stock

PCM504A006H

WIRING ASSY

Notes: TB2 X,TB2 Y-PWB1 CNB1 Show Image

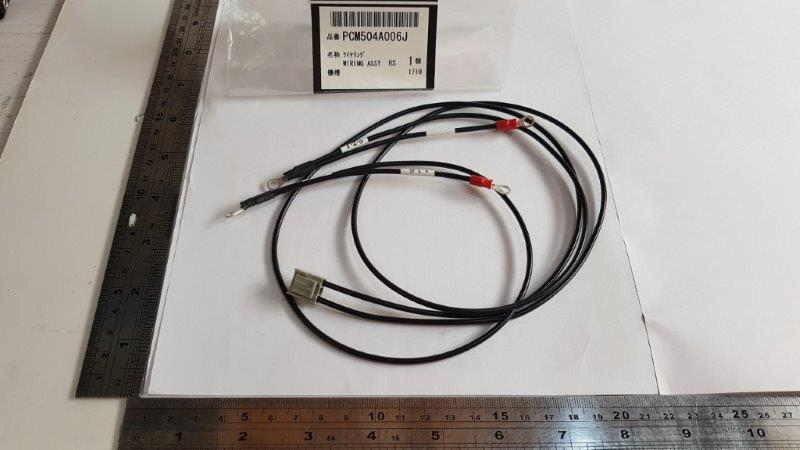

[38] In Stock

PCM504A006J

WIRING ASSY

Notes: 52X1-1 5,52X1-2 5,52X1-2 6,52X1-1 6-PWB1 CNM1 Show Image

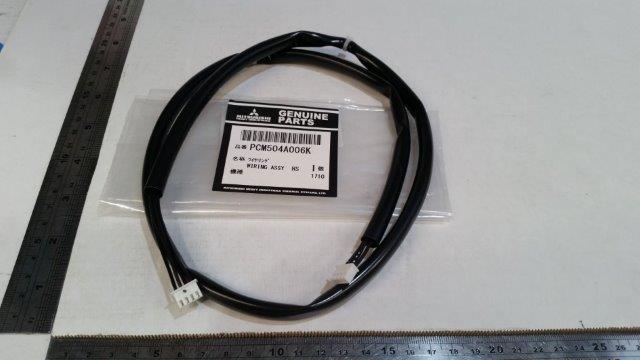

[39] In Stock

PCM504A006K

WIRING ASSY

Notes: PWB1 CNPUM1-PWB4 CN1 Show Image

[40] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[41] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[42] In Stock

PCM504A006L

WIRING ASSY

Notes: PWB5 CN13-2-PWB1 CNDR,PWB1 CN13V Show Image

[43] In Stock

PCM504A006M

WIRING ASSY

Notes: PWB1 CN15V-PWB5 CN15V-2 Show Image

[44] In Stock

PCM504A006N

WIRING ASSY

Notes: PWB1 CN18V-PWB5 CN18V-2 Show Image

[45] In Stock

PCM504A006P

WIRING ASSY

Notes: PWB1 CNTH8- Show Image

[46] In Stock

PCM504A006R

WIRING ASSY

Notes: PWB1 CNL4- Show Image

[47] In Stock

PCM504A006S

WIRING ASSY

Notes: PWB1 CNTH6- Show Image

[48] In Stock

PCM504A006T

WIRING ASSY

Notes: PWB1 CNTH7- Show Image

[49] In Stock

PCM504A006V

WIRING ASSY

Notes: PWB1 CNN8,PWB1 CNN9,PWB1 CNN10,PWB1 CNN11-, LENGTH 31CM Show Image

[50] In Stock

PCM504A018K

WIRING ASSY

Notes: PWB5 CNA1-2- FM1 CNDC1, LENGTH 82CM Show Image

[51] In Stock

PCM504A018L

WIRING ASSY

Notes: PWB5 CNA2-2- FM2 CNDC2 Show Image

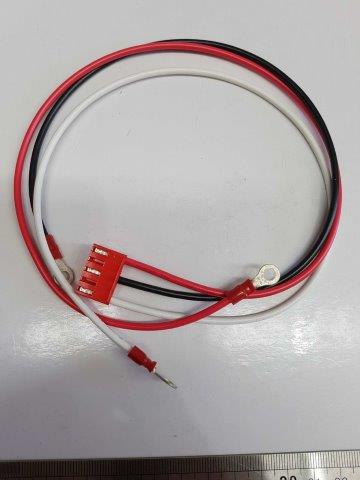

[52] In Stock

PCM504A018M

WIRING ASSY

Notes: PWB3-1 L1 ,PWB3-1 N ,PWB3-1 L2 -PWB1 CNW1, LENGTH 47CM Show Image

[53] In Stock

PCM504A018N

WIRING ASSY

Notes: TB2 1,TB2 2-PWB5 CNW1-2

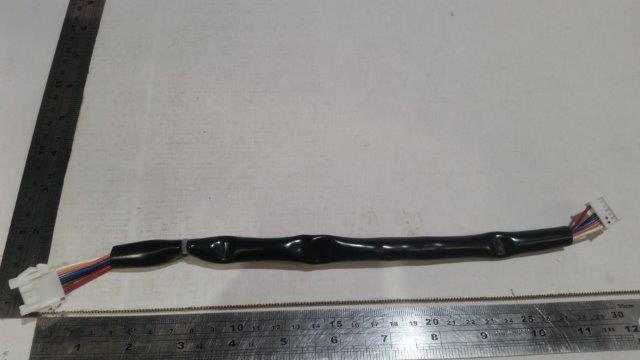

[54] In Stock

PCM504A018S

WIRING ASSY

Notes: PWB4 CN2- WATER PUMP SIDE Show Image

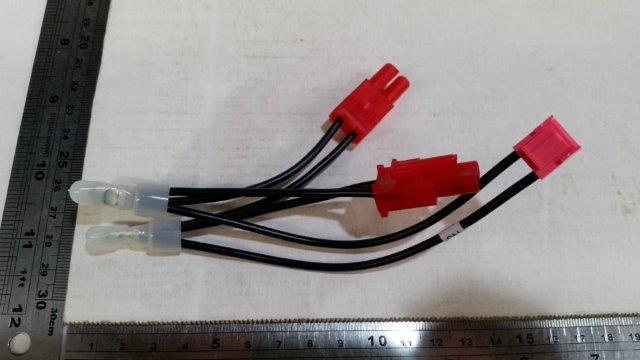

[55] In Stock

PCM504A018C

WIRING ASSY

Notes: PWB1 CNN3- FMC1,FMC2 Show Image

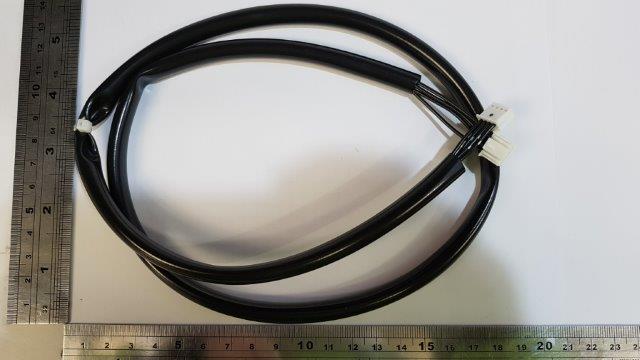

[56] In Stock

PCM504A006Z

WIRING ASSY

Notes: PWB1 CNI1-PWB2-1 CNI2 Show Image

[57] Out of Stock

PCA504A273

WIRING ASSY

Substitute: OUT OF PRODUCTION Notes: DM1 G,DM1 K-PWB2-1 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image

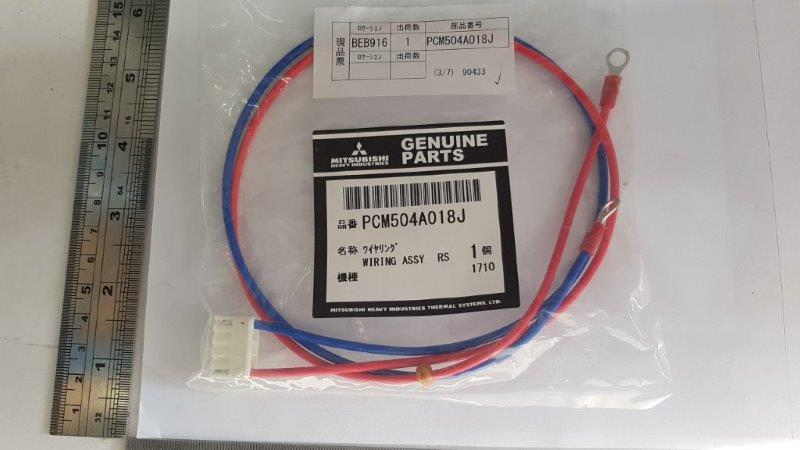

[58] In Stock

PCM504A018J

WIRING ASSY

Notes: C2 -,C2 +-PWB2-1 CAN Show Image

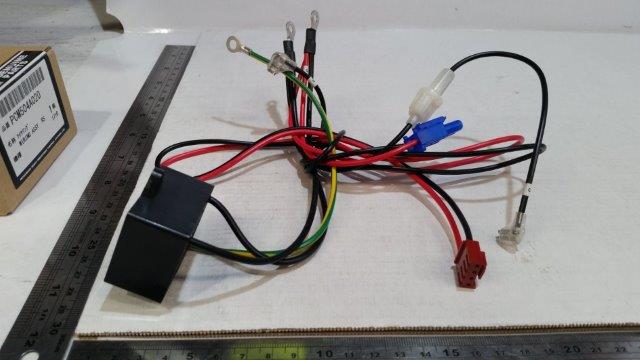

[59-61] In Stock

PCM504A020

WIRING ASSY

Notes: DHX 3,TB2 3,E,TB2 4- HEATER ASSY,PWB1 CNW2,DHX 5 Show Image

[60] In Stock

SSA564A139V

FUSE(CURRENT)

Notes: 4A

[61] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[62] In Stock

PCM504A008A

WIRING ASSY

Notes: DHX 7,DHX 8- CNDH, LENGTH 26CM Show Image

[63] Contact

PCM142A011

COVER

Contact

[64] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[65] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[66] Contact

PCM504A006AA

WIRING ASSY

Contact

Notes: CNS3

[67] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[68] In Stock

SSA554A526

TRANSFORMER

Show Image

[68-69] Contact

PCM554A001

TRANSFORMER ASSY

Contact

[69] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[70-72] Contact

PCM142A012F

COVER ASSY(CONTROL

Contact

[71] Contact

PCM011G001D

LABEL,WIRING

Contact

Notes: !SURFACE ATTACHMENT

[72] Contact

PCM011G001F

LABEL,WIRING

Contact

Notes: !BACK ATTACHMENT

[73] Contact

PCM011F012A

LABEL,MODEL NAME

Contact

SKU: ESA30E-25/B CONTROL AND PARTS SET Category: Uncategorised
