DXU34VF/1 CONTROL AND PARTS SET

Name: DXU34VF/1 CONTROL AND PARTS SET
SKU: DXU34VF/1 CONTROL AND PARTS SET
Availability: InStock

DXU34VF/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

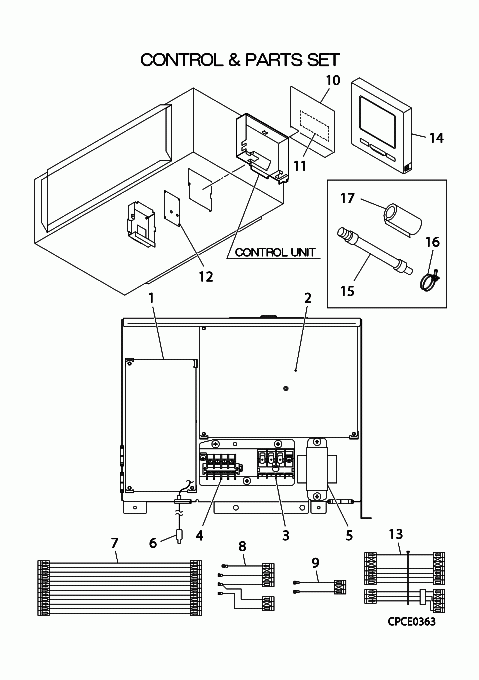

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228DJ

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS, CONFIRM SERVICE CODE BEFORE ORDERING - (CONTROL) LEFT OF TERMINAL BLOCK. CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image

[1-9] Contact

PJG501A003AN

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PJA505A235

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS, *****CONFIRM UNIT SERVICE CODE********(POWER) ABOVE TERMINAL BLOCK, DOES NOT PLUG INTO FAN MOTOR BUT POWERS PWB ASSY(MOTOR). THE PWB ASSY(MOTOR) PLUGS DIRECTLY INTO MOTOR Show Image

[3] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

SSA554B109

REACTOR

Show Image

[6] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[7] In Stock

PJG504A001B

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB, CNW2 PWB- CNW1 PWB/ LENGTH 16.5CM (12 white wires) Show Image

[8] In Stock

PJF504A036A

WIRING(TB,POWER)

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB Show Image

[9] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[10] In Stock

PJG142A015A

LID ASSY,CONTROL B

[11] Contact

PJG011G003A

LABEL,WIRING

Contact

Notes: !

[12] In Stock

PJA505A236

PWB ASSY(MOTOR)

Notes: ONLY FOR SUPPLY PARTS, COMES WITH SSA971F044 (GREASE) INSIDE BOX Show Image

[12-13] Contact

PJG501A004

CONTROL UNIT(DRIVE

Contact

Notes: NOT AVAILABLE

[13] In Stock

PJG504A008

WIRING(FM)

Notes: CNM2,CNFM2- CNM,CNFM Show Image

[14] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[15] In Stock

SSA423A101A

HOSE,DRAIN

Notes: SEE C: CONTROL & PARTS SET

[15-17] Contact

PJF008A001W

PARTS SET

Contact

[16] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[17] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[18] Contact

PJG011F004BL

LABEL,MODEL NAME

Contact

Notes: !
