DXK21ZTLA-WF HEAT EXCH. AND CONTROL

Name: DXK21ZTLA-WF HEAT EXCH. AND CONTROL
SKU: DXK21ZTLA-WF HEAT EXCH. AND CONTROL
Availability: InStock

DXK21ZTLA-WF HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-11] In Stock

RLH301A501

HEAT EXCH ASSY (AIR)

Notes: Indoor Heat exchanger coil assembly

[3] Contact

RSA315A005

DISTRIBUTOR

Contact

[3-9] In Stock

RLH315A500

DISTRIBUTOR ASSY

Show Image

[4] Contact

RLH321A514

PIPE ASSY

Contact

Notes: D3.0xD4.0 L100

[5] Contact

RLH315B501

CAPILLARY

Contact

Notes: D3.0xD4.0 L100

[6] Contact

RLH321A516

PIPE ASSY

Contact

Notes: D3.0xD4.0 L100

[7] Contact

RLH321A518

PIPE ASSY

Contact

Notes: D3.0xD4.0 L100

[8] Contact

RLH315B504

CAPILLARY

Contact

Notes: D3.0xD4.0 L100

[9] Contact

RLH321A520

PIPE ASSY

Contact

Notes: D3.0xD4.0 L100

[10] Contact

RLH315D500

HEADER ASSY

Contact

[11] Contact

RLH321A505

PIPE ASSY

Contact

[12-14] In Stock

RLH321A500

PIPE ASSY

[13] Contact

SSA323F091B

UNION (SLD)

Contact

Notes: FOR GAS

[14] Contact

SSA323F091A

UNION (SLD)

Contact

Notes: FOR LIQ.

[15] Contact

RLH129A501

PLATE, BAFFLE

Contact

[16] Contact

RLH129A502

SEAL (A)

Contact

[17] Contact

RLH129A503

SEAL (B)

Contact

[18] In Stock

RLH142A002

BOX, CONTROL

[19] Contact

RLH132A001

COVER, CONTROL

Contact

[20] Contact

RLH129A511

COVER, BEND

Contact

[21] In Stock

SSA551A223T

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image

[22] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HUMIDITY SENSOR Show Image

[23] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T1, T2 Show Image

[24] In Stock

SSA554D173

CORE,FERRITE

[25-27] In Stock

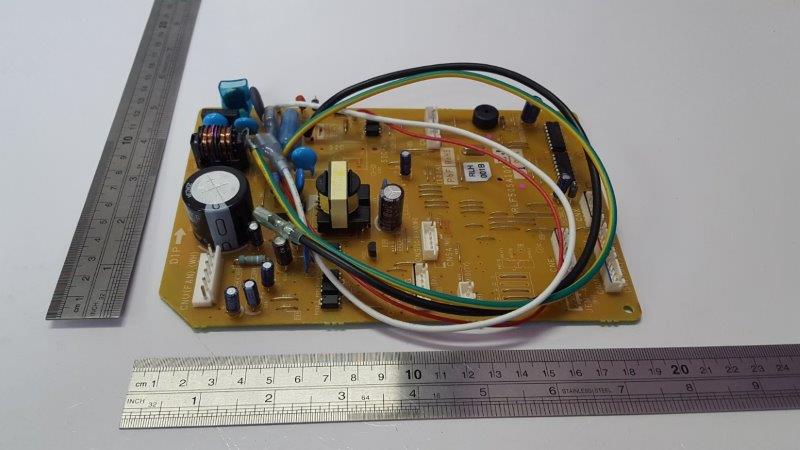

RLF505A102LJ

PWB ASSY

Show Image

[26] In Stock

SSA555B050C

VARISTOR

Notes: Z, Z1 Show Image

[27] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F 3.15A, 3.15A Show Image

[28] In Stock

RLH503A500

DISPLAY ASSY

Notes: Display/Receiver PCB with wiring harness and housing Show Image

[29] In Stock

RLH505A001

PWB ASSY (DISPLAY)

Show Image

[31] In Stock

RLH505A002

PWB ASSY (WIFI)

Notes: WIFI PWB. (NOT MAIN PWB). Show Image

[33] In Stock

PSA941F001

SPRING LEAF

Notes: 1pc ONLY Show Image

[36] In Stock

RLH129A019

COVER ASSY (TB)

Notes: Cover for Terminal block

[38] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image

[39] In Stock

RLH032A002

HOLDER (REMO-CON)

Notes: Holder for Remote Control

[40] In Stock

RLH502A001

REMOTE CONTROL

Notes: Holder = RLH032A002 Show Image
