DXK09ZMA-S HEAT EXCH. AND CONTROL

Name: DXK09ZMA-S HEAT EXCH. AND CONTROL
SKU: DXK09ZMA-S HEAT EXCH. AND CONTROL
Availability: InStock

DXK09ZMA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

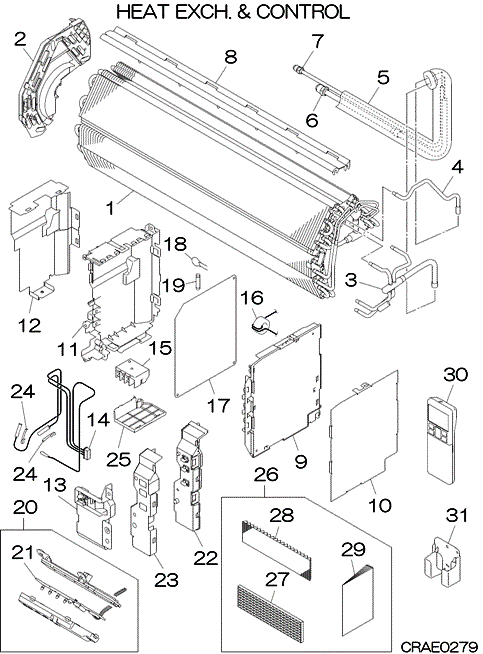

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RLA301A013S

HEAT EXCH ASSY (AIR)

Notes: Heat exchanger coil assembly

[2] In Stock

RLA129A004

BRACKET(L)

[3] Contact

RLA315D004

HEADER ASSY

Contact

[4] Contact

RLA321A058

PIPE

Contact

[5-7] Contact

RLA321A001

PIPE ASSY

Contact

[6] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[7] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[8] Contact

RLA129A005A

PLATE, BAFFLE

Contact

[9] In Stock

RLA142A003

BOX,CONTROL(R)

Show Image

[9-10] In Stock

RLA142A005

BOX ASSY,CONTROL (R )

Notes: Housing for PCB only. Does not include PCB Show Image

[10] Contact

RLA132A003

COVER,CONTROL(R)

Contact

[11] Contact

RLA142A004

BOX,CONTROL(L)

Contact

[11-12] In Stock

RLA142A006

BOX ASSY,CONTROL(L

Notes: LENGTH 34CM Show Image

[12] Contact

RLA132A004

COVER,CONTROL(L)

Contact

[13] Contact

RLA129A022

COVER,BEND

Contact

[14] In Stock

SSA551A223F

SENSOR ASSY

Notes: 3 sensors on same plug - Room temp & 2x Heat exchanger sensors Show Image

[15] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[16] Out of Stock

SSA554D183

KILLER,NOISE

Show Image

[17-19] In Stock

RLA505A001KC

PWB ASSY

Notes: INDOOR MAIN PC BOARD Show Image

[18] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[19] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[20] In Stock

RLA503A001

DISPLAY ASSY

Notes: COMES WITH BRACKET,BOARD,WIRING & FACIA Show Image

[21] In Stock

RLA505A003

PWB ASSY(DISPLAY)

Notes: PCB BOARD AND HARNESS ONLY

[22] In Stock

RLA132A007

LID,CONTROL

Show Image

[22-23] In Stock

RLA132A008

LID ASSY,CONTROL

[23] Out of Stock

RLA132A005

COVER,LID

[24] In Stock

RKJ941F001

SPRING LEAF

Show Image

[25] Out of Stock

RLA129A023

COVER ASSY(TB)

Show Image

[26] Contact

RLA008A004R

PARTS,STANDARD

Contact

[27] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[28] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: 1pc ONLY, ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image

[29] Contact

RLA012A021A

MANUAL,INSTRUCTION

Contact

[30] In Stock

RLA502A700R

REMOTE CONTROL

Notes: DOES NOT COME WITH HOLDER PART NUMBER - RLA032A700 Show Image

[31] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: REMOTE CONTROL HOLDER/CRADLE Show Image

[32] Contact

RLA011F004M

LABEL,MODEL NAME

Contact
