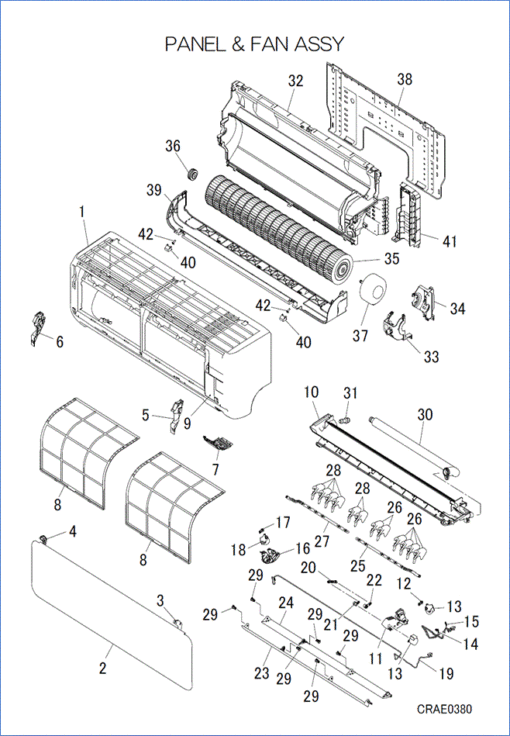

DXK07ZTLA-WF PANEL AND FAN ASSY

DXK07ZTLA-WF PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RLH122A001
PANEL, FRONT
[1-9] In Stock
RLH102A001
PANEL ASSY, FRONT
[2-4] In Stock
RLH435A003
PANEL ASSY, AIR IN
Notes: Air Inlet panel / Filter cover
[3] In Stock
RLH129A023
ARM, INLET (R)
Show Image
RLH129A023
[4] In Stock
RLH129A024
ARM, INLET (L)
[5] In Stock
RLH129A021
HOLDER, ARM (R)
[6] Contact
RLH129A022
HOLDER, ARM (L)
Contact
[7] Contact
RLH133A001
ORNAMENT ASSY
Contact
[8] In Stock
RLH437A001
FILTER, AIR
Notes: W315.5xH334.7(t2), Sold individually
[9] Contact
RSA011H056
LABEL,NOTICE
Contact
[10] In Stock
RLH435A001
GRILLE ASSY, AIR OUT
Notes: Includes drip/condensate tray, all louvers, louver motors, louver motor wiring harness, Drain hose & plug
[10-31] In Stock
RLH435A001
GRILLE ASSY, AIR OUT
Notes: Includes drip/condensate tray, all louvers, louver motors, louver motor wiring harness, Drain hose & plug
[11] Contact
RLH129A010
BRACKET, MOTOR (R)
Contact
[11-15] Contact
RLH129A009
BRACKET ASSY (R)
Contact
[12] In Stock
RLB144A005
CRANK(C)
Notes: LENGTH 2CM Show Image
RLB144A005
[13] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP,LOUVER(RIGHT), Louver/Flap/Stepping motor Show Image
SSA512T158
[14] In Stock
RSA504A034
HARNESS ASSY
Notes: FOR FLAP MOTOR Show Image
RSA504A034
[15] In Stock
RSA504A034A
HARNESS ASSY
Notes: FOR LOUVER MOTOR(RIGHT)
[16] Contact
RLH129A012
BRACKET, MOTOR (L)
Contact
[16-19] Contact
RLH129A011
BRACKET ASSY (L)
Contact
[17] In Stock
RLB144A005
CRANK(C)
Notes: LENGTH 2CM Show Image
RLB144A005
[18] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT), Louver/Flap/Stepping motor Show Image
SSA512T158
[19] In Stock
RSA504A034B
HARNESS ASSY
Notes: FOR LOUVER MOTOR(LEFT) Show Image
RSA504A034B
[20] In Stock
RLH144A501
LINK
Show Image
RLH144A501
[20-22] In Stock
RLH144A500
LINK ASSY
Show Image
RLH144A500
[21] In Stock
RLH144A502
CRANK (U)
Show Image
RLH144A502
[22] In Stock
RLH144A503
CRANK (L)
Show Image
RLH144A503
[23] In Stock
RLH436A001
FLAP (U)
Notes: Upper
[24] In Stock
RLH436A002
FLAP (L)
Notes: Lower
[25] In Stock
RLH129A013
PLATE, CONNECTING (R)
Show Image
RLH129A013
[25-26] In Stock
RLH436A003
LOUVER ASSY (R)
Notes: Right Side - Includes 6 Louver fins & Connecting rod Show Image
RLH436A003
[26] In Stock
RLH436A004
LOUVER
Show Image
RLH436A004
[27] In Stock
RLH129A014
PLATE, CONNECTING (L)
Show Image
RLH129A014
[27-28] In Stock
RLH436A005
LOUVER ASSY (L)
Notes: Left Side - Includes 6 Louver fins & Connecting rod
[28] In Stock
RLH436A004
LOUVER
Show Image
RLH436A004
[29] In Stock
RLG129A010
SHAFT
[30] In Stock
SSA423A114
HOSE,DRAIN
[31] In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray.
[32] Contact
RLH111A001
BASE ASSY
Contact
[33] In Stock
RLH129A001
CASE ASSY (U)
[34] In Stock
RLH129A003
CASE ASSY (L)
Show Image
RLH129A003
[35] In Stock
SSA431G061
IMPELLER
Notes: Fan Barrel
[36] In Stock
SSA923C136Z
BEARING, PLANE
Show Image
SSA923C136Z
[37] In Stock
SSA512T163
MOTOR, DC
Notes: FOR IMPELLER
[38] Contact
RLH032A001
PLATE, INSTALLATION
Contact
[39-40] In Stock
RLH132A003
PANEL ASSY, BOTTOM
[40] In Stock
RLH129A025
CAP
Notes: SOLD INDIVIDUALLY Show Image
RLH129A025
[41] In Stock
RLH116A001
BRACKET, CONTROL
[42] In Stock
SSA913A007
SCREW
Notes: 4x12, 1pc ONLY Show Image
SSA913A007
SKU: DXK07ZTLA-WF PANEL AND FAN ASSY Category:
