DXK06ZSA-W HEAT EXCH. AND CONTROL

DXK06ZSA-W HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] In Stock
RLF301A100S
HEAT EXCH ASSY
Notes: Indoor Heat exchanger coil assembly
[2] Contact
RLF321A008
PIPE
Contact
[3] Contact
RLF321A007
PIPE ASSY
Contact
[4] Contact
RLF129A119
BRACKET ASSY(L)
Contact
[5-7] Contact
RLF321A001
PIPE ASSY
Contact
[6] In Stock
SSA323F088
UNION(SLD)
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[7] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[8] In Stock
RLF129A105
PLATE,BAFFLE
[9] In Stock
RLF129A106
SEAL
[10] Contact
RLF142A101
BOX,CONTROL
Contact
[10-11] In Stock
RLF142A100
BOX ASSY CONTROL
Show Image
RLF142A100
[11] Contact
RLF132A100
COVER,CONTROL
Contact
[12] Contact
RLF129A107
COVER,BEND
Contact
[13-15] In Stock
RLF505A102AA
PWB ASSY
Notes: INDOOR MAIN PC BOARD Show Image
RLF505A102AA
[14] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[15] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[16] In Stock
SSA551A223P
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), 1x Room temp sensor, 2x Heat Exchanger sensors Show Image
SSA551A223P
[17] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[18] In Stock
RLF503A100
PWB, DISPLAY ASSY
Notes: COMES WITH HARNESS AND CASING Show Image
RLF503A100
[19] In Stock
RLF505A101
PWB, DISPLAY
Notes: BOARD ONLY - DOES NOT INCLUDE HARNESS - FOR HARNESS AND RECEVER = RLF503A100 Show Image
RLF505A101
[20] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[21] Contact
RLF132A104
LID,CONTROL
Contact
[21-23] In Stock
RLF142A103A
LID ASSY,CONTROL
[22] Contact
RLF142A105
LID,CONTROL
Contact
[23] Contact
RLF011G100D
LABEL,WIRING
Contact
[24] In Stock

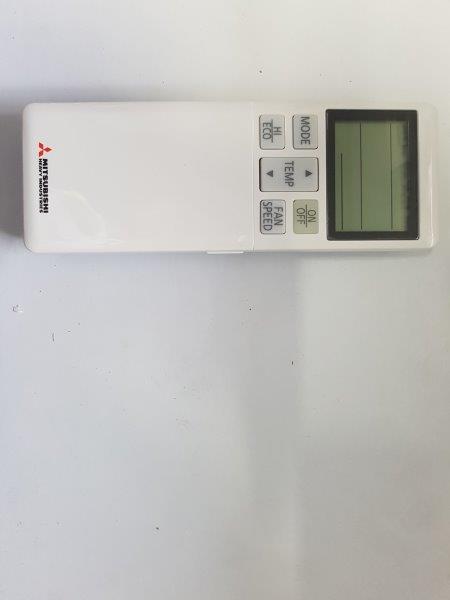

RLA502A720
REMOTE CONTROL
Notes: REMOTE CONTROL HOLDER IS PART NUMBER RLA032A700. Does not come with holder.
[25] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: REMOTE CONTROL HOLDER/CRADLE Show Image
RLA032A700
[26] Contact
RLF008A100D
PARTS,STANDARD
Contact
[27] In Stock
RKT437A005
FILTER,CLEAN
Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[28] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image
RKT437A801D
[29] Contact
RLF012A104A
MANUAL,INSTRUCTION
Contact
[30] Contact
RLF011F101Z
LABEL,MODEL NAME
Contact
SKU: DXK06ZSA-W HEAT EXCH. AND CONTROL Category:
