DXCA24VNX CONTROL AND PARTS SET

Name: DXCA24VNX CONTROL AND PARTS SET
SKU: DXCA24VNX CONTROL AND PARTS SET
Availability: InStock

DXCA24VNX CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

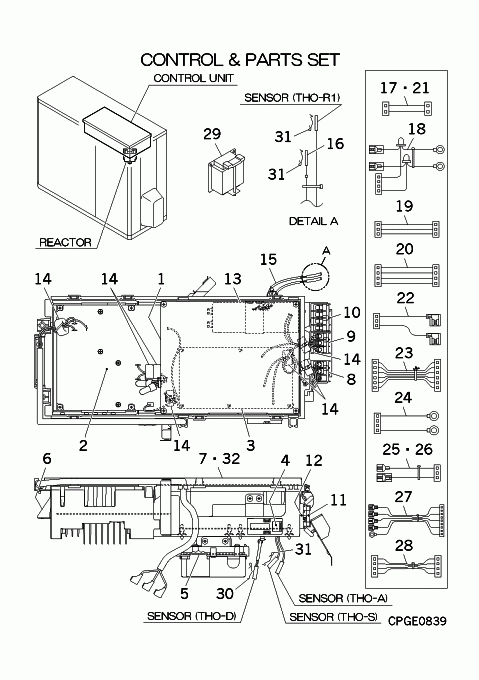

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A349A

PWB ASSY (CONTROL)

Notes: PWB1

[1-28] Contact

PCA501A195

CONTROL UNIT

Contact

Substitute: NOT AVAILABLE Notes: NOT AVAILABLE

[2] In Stock

PCA505A232A

PWB ASSY (INVERTER)

Notes: PWB2 INVERTER, ***CONFIRM SERVICE CODE*** Connects to Compressor. Comes with a (different looking) reactor - tech to read install instructions - (FACTORY PART PCA505A098G) Show Image

[3] In Stock

PCA505A096G

PWB ASSY (N.F)

Notes: PWB3, NOISE FILTER

[4] In Stock

PCA505A068C

PWB ASSY

Notes: DIP SWITCH PWB, BOARD HAS 7 DIP SWITCHES - DOES "NOT" HAVE PUSH BUTTON Show Image

[5] In Stock

PCA505A180

DRED

Notes: PWB, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[6] In Stock

RPC142A853

BOX,CONTROL(A)

Notes: BLACK PLASTIC FRAME

[7] Contact

PCA142A153C

LID ASSY,CONTROL

Contact

[8] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[9] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[10] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[11] In Stock

SSA564A117

FUSE(CURRENT)

Notes: 20A

[12] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[13] In Stock

SSA552F399C

CAPACITOR

Notes: CA, C1‚ - 450V 2000UF Show Image

[14] Out of Stock

SSA554D183

KILLER,NOISE

Show Image

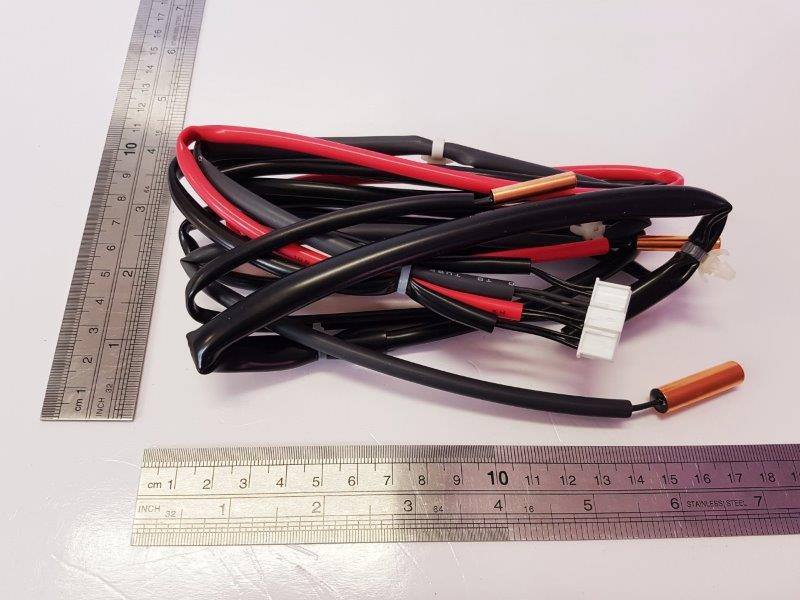

[15] In Stock

PCA551A032B

SENSOR ASSY

Notes: THO-A,S,D,R1

[16] In Stock

PCB551A029F

SENSOR

Notes: THO-R2

[17] In Stock

PCA504A251L

WIRING ASSY

Notes: PWB3 CNO2- PWB2 CNO1, PWB3 CNO2-PWB2 CNO1

[18] Contact

PCA504A251CN

WIRING ASSY

Contact

Notes: PWB2 T26,PWB2 T27,PWB1 CNA1- C1 +,C1 -

[19] Contact

PCA504A251Y

WIRING ASSY

Contact

Notes: PWB1 CNI3- PWB2 CNI4

[20] In Stock

PCA504A251Z

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2 Show Image

[21] In Stock

PCA504A251AA

WIRING ASSY

Notes: PWB1 CNG1- PWB2 CNG2, PWB1 CNG1-PWB2 CNG2 Show Image

[22] In Stock

PCA504A251AC

WIRING ASSY

Notes: PWB1 CNH- 63H1 1,63H1 2, PWB1 CNH-63H1 1,63H1 2 Show Image

[23] Contact

PCA504A251DK

WIRING ASSY

Contact

Notes: PWB1 CNQ2- PWB5 CNQ1

[24] Contact

PCA504A251CP

WIRING ASSY

Contact

Notes: PWB1 CNA2- C1 +,C1 -

[25] In Stock

PCA504A251AB

WIRING ASSY

Notes: TB1 2,TB1 3- PWB1 CNW2, TB1 2,TB1 3-PWB1 CNW2

[26] In Stock

PCA504A292AS

WIRING ASSY

Notes: TB1 N,TB1 L- PWB3 CNPOWER, TB1 N,TB1 L- PWB6 CNPOWER Show Image

[27] In Stock

PCA504A292K

WIRING ASSY

Notes: TB3 D1,TB3 D2,TB3 D3,TB3 C,TB3 E- PWB6 CNDRED Show Image

[28] Contact

PCA504A292F

WIRING ASSY

Contact

Notes: PWB1 CNDRM- PWB6 CNDRM

[29] In Stock

SSA554B079

REACTOR

Show Image

[30] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[31] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[32] Contact

PSC011G566B

LABEL,WIRING

Contact

[33] Contact

PSB011F161G

LABEL,MODEL NAME

Contact
