DXC33ZRA-W FAN AND COMPRESSOR

Name: DXC33ZRA-W FAN AND COMPRESSOR
SKU: DXC33ZRA-W FAN AND COMPRESSOR
Availability: InStock

DXC33ZRA-W FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR116A109

BASE,MOTOR

[2] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[3] In Stock

SSA512T076BN

MOTOR, DC

Notes: OUTDOOR FAN MOTOR

[4] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[5] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[6] In Stock

W200H06

WASHER

Notes: 1pc ONLY Show Image

[7] In Stock

SSA913D020

SCREW TAP

Notes: M5x10, 1pc ONLY Show Image

[8] Contact

RCR141A205

PLATE ASSY,BAFFLE

Contact

[9] In Stock

AHT201F264WB

COMPRESSOR ASSY

Notes: RMT5126SWE3, RMT5126SWE3 ***COMPRESSORS CANNOT BE RETURNED***

[10] In Stock

SSA941C246

CUSHION RUBBER

Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image

[11] In Stock

SSA914C033

NUT

Notes: 1pc

[12] In Stock

SSA932C009A

GASKET,COVER

Show Image

[13] In Stock

SSA947K026

COVER,TERMINAL

Show Image

[14] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[15] In Stock

RCR154D104A

INSULATION,COMP

Show Image

[16] In Stock

RCR154D105

INSULATION,COMP

[17] In Stock

RCR154D106

INSULATION,COMP

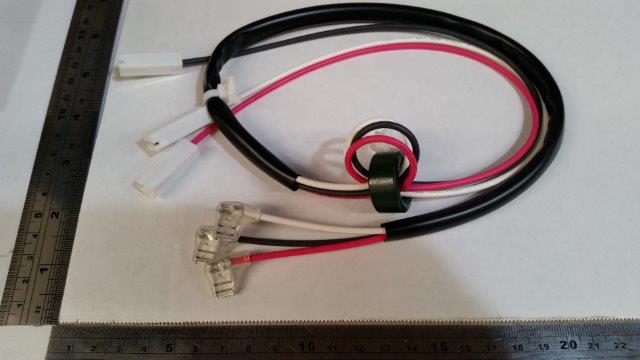

[18] In Stock

RCR504A048B

WIRING ASSY

Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR - RED, WHITE, BLACK Show Image

SKU: DXC33ZRA-W FAN AND COMPRESSOR Category: Uncategorised
