DXC21ZMA-S HEAT EXCH. AND CONTROL

Name: DXC21ZMA-S HEAT EXCH. AND CONTROL
SKU: DXC21ZMA-S HEAT EXCH. AND CONTROL
Availability: InStock

DXC21ZMA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

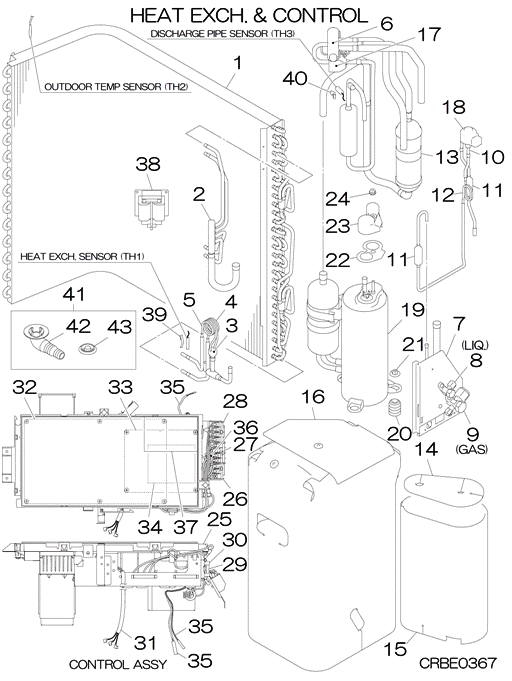

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] In Stock

RCR301A005B

HEAT EXCH ASSY(AIR)

Notes: CONDENSER HEAT EXCHANGER COIL ASSEMBLY

[2] Out of Stock

RCR315D004A

HEADER ASSY,GAS

Show Image

[3] Contact

RSA315A004B

DISTRIBUTOR

Contact

[3-5] In Stock

RCR315A002

DISTRIBUTOR ASSY

Show Image

[4] In Stock

RCR315B012

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300/ LENGTH 9CM Show Image

[5] Contact

RCR315B013

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[7] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[8] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[9] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[10] In Stock

SSA387F052

VALVE,BODY(EXP)

Notes: EEV, EEV‚ - Expansion Valve Body - Body only Show Image

[10-12] Out of Stock

RCR304A008B

PIPING ASSY(EXPAN)

[11] In Stock

SSA357A005A

STRAINER

Show Image

[12] Contact

RCT315B003

CAPILLARY

Contact

Notes: !D2.6XD4.0 L300

[13] In Stock

AHT351A001

ACCUMULATOR

Show Image

[14] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[15] In Stock

RPC154D904

INSULATION,COMP

Notes: COMP BODY

[16] Contact

RCR154D005

INSULATION

Contact

[17] In Stock

RPC382F900

COIL ASSY, SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[18] In Stock

RCM382F001G

COIL,SOLENOID(EEV)

Notes: FOR EEV, HAS HARNESS ATTACHED-WHITE PLUG, MULTI COLOR WIRES Show Image

[19] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[20] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[21] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[22] In Stock

RSA932C004

GASKET

Show Image

[23] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[24] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[25] In Stock

RPC142A902

BOX,CONTROL(A)

[26] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[27] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[28] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[29] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[30] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[31] In Stock

RPC504A912A

WIRING ASSY

Notes: FOR COMP. Show Image

[32] In Stock

RCT505A302HA

PWB ASSY(MAIN)

Notes: PWB1, LARGER BOARD, PLUGS INTO SENSORS, EEV, FAN MOTOR & COMPRESSOR Show Image

[33] In Stock

RCT505A004G

PWB ASSY(SUB)

Notes: PWB2, PWB2, Connects to Reversing Valve Coil ***KEEP HARNESS*** Show Image

[34] In Stock

RCT505A304

DRED

Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[35] In Stock

SSA551A233

SENSOR ASSY

Notes: TH1,TH2,TH3, . INCLUDES ALL SENSORS ON OUTDOOR UNIT - TH1,TH2,TH3 Show Image

[36] In Stock

SSA554D173

CORE,FERRITE

[37] Contact

RCR011G200

LABEL,WIRING

Contact

[38] In Stock

SSA554B113

REACTOR

Show Image

[39] In Stock

RKJ941F001

SPRING LEAF

Show Image

[40] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[41] In Stock

RPC008A601

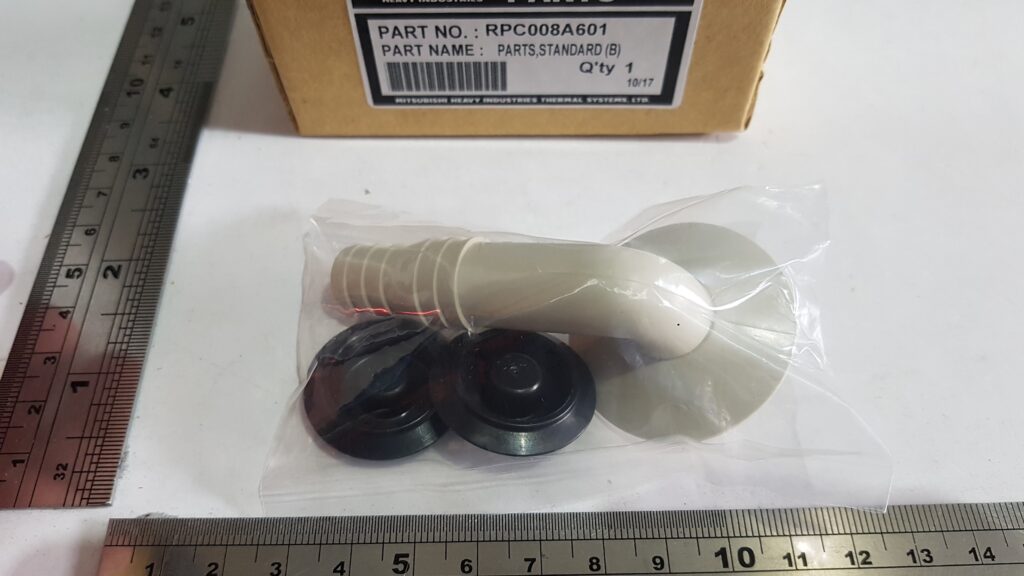

DRAIN KIT

Notes: ***CUSTOMER TO INFORM QUANTITY REQUIRED*** DRAIN KIT COMES WITH 1x ELBOW, 2x GROMMETS.

[42] In Stock

RPC008A601

DRAIN KIT

Notes: ***CUSTOMER TO INFORM QUANTITY REQUIRED*** DRAIN KIT COMES WITH 1x ELBOW, 2x GROMMETS.

[43] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[44] Contact

RCR011F005AD

LABEL,MODEL NAME

Contact
