DXC18ZSA-W HEAT EXCH. AND CONTROL

Name: DXC18ZSA-W HEAT EXCH. AND CONTROL
SKU: DXC18ZSA-W HEAT EXCH. AND CONTROL
Availability: InStock

DXC18ZSA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

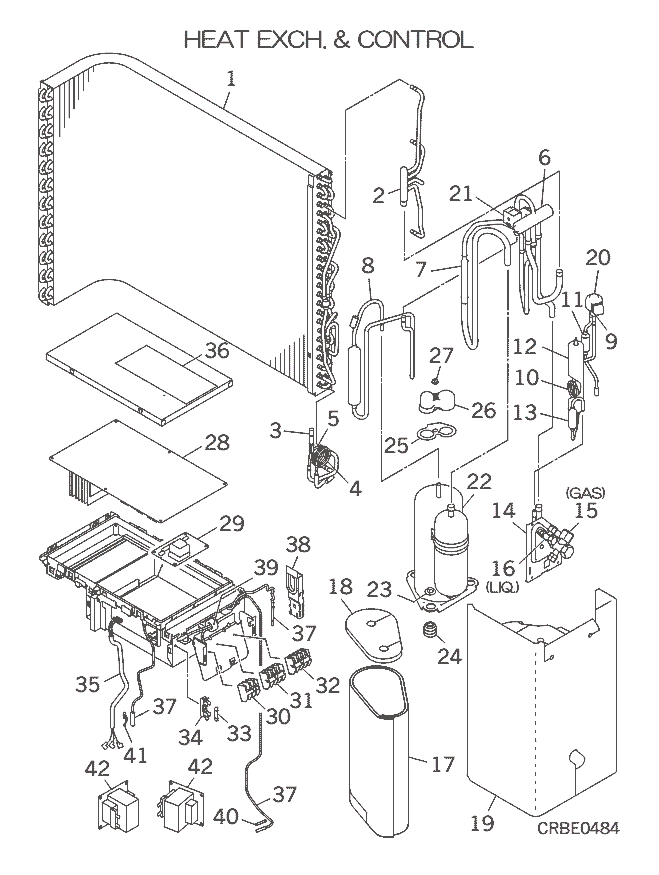

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] In Stock

RCT301A005C

HEAT EXCHANGE ASSY (AIR)

[2] Contact

RCT315D601

HEADER ASSY,GAS

Contact

[3-5] Contact

RCT321A060

PIPE ASSY

Contact

[4] Contact

RCS315B006

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RCT315B001

CAPILLARY

Contact

Notes: f2.6xf4.0 L200

[6] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[7] In Stock

RCT321A900A

PIPING ASSY(SUCTION)

[8] In Stock

RCT321A904

PIPING ASSY(DISCH)

[9] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[9-13] In Stock

RCT304A016

PIPING ASSY(EXPAN)

[10] In Stock

RCT315B002

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image

[11] In Stock

RCN325A700

PIPE,SHELL

Show Image

[12] Contact

RCM325A300D

PIPE,SHELL

Contact

[13] In Stock

SSA357A005A

STRAINER

Show Image

[14] In Stock

RCS116A004

BRACKET,VALVE

[15] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[16] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[17] Contact

RCT154D004

INSULATION,COMP

Contact

[18] Out of Stock

RCV154D003

INSULATION,COMP

[19] Contact

RCT154D201

INSULATION

Contact

[20] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[21] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[22] In Stock

RSA201A045

COMPRESSOR

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[23] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[24] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[25] In Stock

RSA932C004

GASKET

Show Image

[26] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[27] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[28] In Stock

RCR505A100F

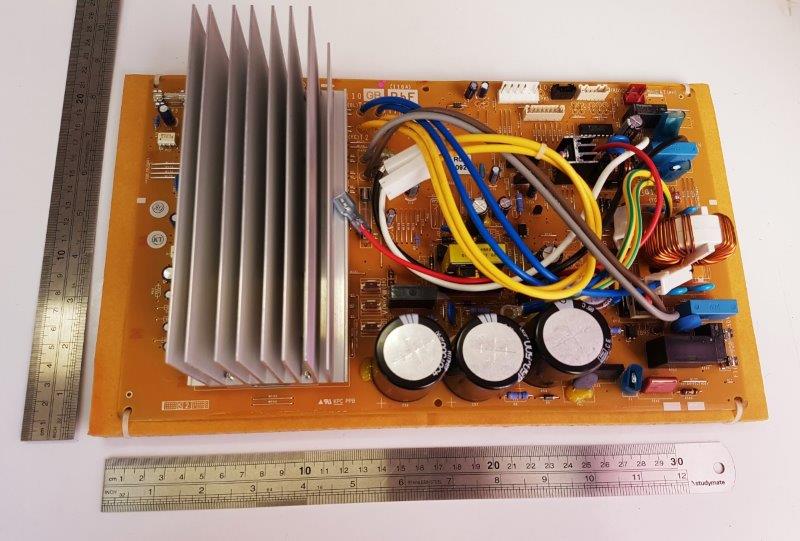

PWB ASSY

Notes: PWB1, PWB1 - MAIN PCB Show Image

[29] In Stock

RCT505A304B

DRED

Notes: PWB2, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT

[30] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[31] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[32] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[33] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[34] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[35] In Stock

RCT504A020B

WIRING ASSY

Notes: FOR COMP., Red. White, Black Show Image

[36] Contact

RCR011G201

LABEL,WIRING

Contact

[37] In Stock

SSA551A245

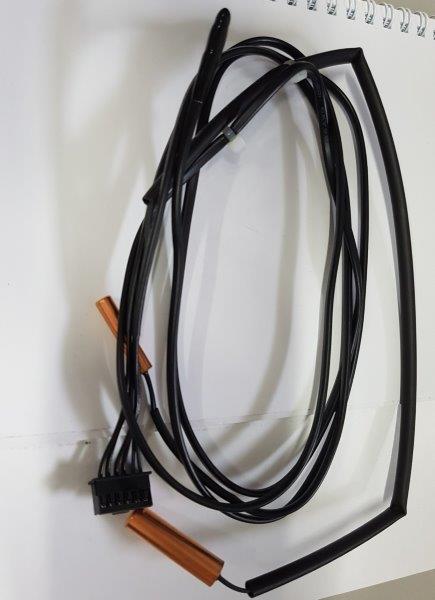

SENSOR ASSY

Notes: TH1,2,3, TH1,2,3 - Plugs into CNTH - 3 sensors off 1 plug Show Image

[38] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[39] In Stock

SSA554D173

CORE,FERRITE

[40] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[41] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[42] In Stock

SSA554B114

REACTOR

Notes: *** 1 PIECE ONLY. SOLD INDIVIDUALLY *** Show Image

[43] Contact

RWC011F032H

LABEL,MODEL NAME

Contact

SKU: DXC18ZSA-W HEAT EXCH. AND CONTROL Category: Uncategorised
