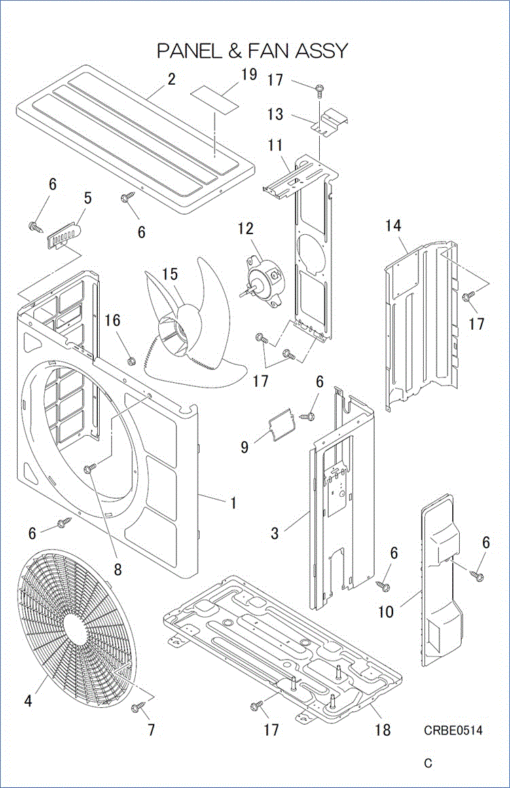

DXC12ZTLA-W PANEL AND FAN ASSY

DXC12ZTLA-W PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCW122A002
PANEL, FRONT
[2] In Stock
RCW124A004
PANEL ASSY, TOP
[3] In Stock
RCW123A003
PANEL ASSY SIDE (R)
[4] In Stock
RCW435A002
GRILLE AIR OUTLET
Notes: FAN GUARD/FAN GRILLE
[5] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[6] In Stock
SSA913A034K
SCREW,TAP
Notes: 4x8 Show Image
SSA913A034K
[7] In Stock
SSA913A034L
SCREW,TAP
Notes: 4x12, 1pc ONLY
[8] In Stock
SSA913A008F
SCREW,TAP
Notes: 4x10, 1pc ONLY, 4X10
[9] In Stock
RCW142A007
COVER(TB)
[10] In Stock
RCW132A002
COVER ASSY,SERVICE
[11] In Stock
RCW116A401
BRACKET ASSY, MOTOR
[12] In Stock
SSA512T169
MOTOR, DC
[13] Contact
RCW116A007A
BRACKET ASSY
Contact
[14] Contact
RCW141A001A
PLATE,BAFFLE
Contact
[15] In Stock
SSA431B258
PROPELLER
[16] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[17] In Stock
W011D04X008
TAP SCREW
Notes: 4x8, 1pc ONLY Show Image
W011D04X008
[18] In Stock
RCW111A003C
BASE ASSY
[19] In Stock
RSA011H036B
LABEL,NOTICE
Notes: LENGTH 16.5CM Show Image
RSA011H036B
SKU: DXC12ZTLA-W PANEL AND FAN ASSY Category:
