DXC06ZM-S HEAT EXCH. AND CONTROL

Name: DXC06ZM-S HEAT EXCH. AND CONTROL
SKU: DXC06ZM-S HEAT EXCH. AND CONTROL
Availability: InStock

DXC06ZM-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

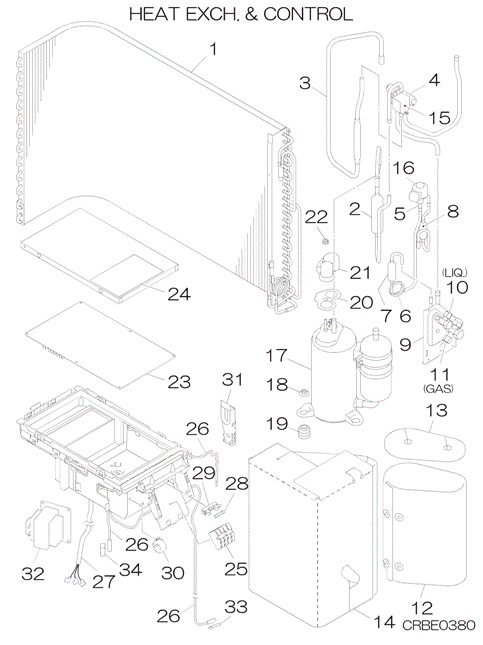

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCV301A001C

HEAT EXCH ASSY(AIR

Notes: ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***

[2] In Stock

RCV321A200A

PIPING ASSY(DISCH)

[3] In Stock

RCV321A202A

PIPING ASSY(SUCTION)

[4] In Stock

SSA382C097

4 WAY VALVE

Notes: 20S, Reversing Valve Body - Body only

[5] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[5-8] In Stock

RCV304A009

PIPING ASSY(EXPAN)

Show Image

[6] In Stock

RCV315B001

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image

[7] In Stock

SSA357A005A

STRAINER

Show Image

[8] In Stock

RCN325A700

PIPE,SHELL

Show Image

[9] In Stock

RCS116A004

BRACKET,VALVE

[10] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[11] In Stock

RCV381A001A

SERVICE VALVE

Notes: GAS, (3/8") GAS Show Image

[12] In Stock

RCS154D012

INSULATION,COMP

Notes: SIDE

[13] In Stock

RCS154D009

INSULATION,COMP

Notes: UPPER

[14] In Stock

RCV154D007A

INSULATION

[15] In Stock

RSA382F013AK

COIL ASSY,S

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[16] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[17] In Stock

AHT201A864DR

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[18] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[19] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[20] In Stock

RSA932C004

GASKET

Show Image

[21] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[22] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[23] In Stock

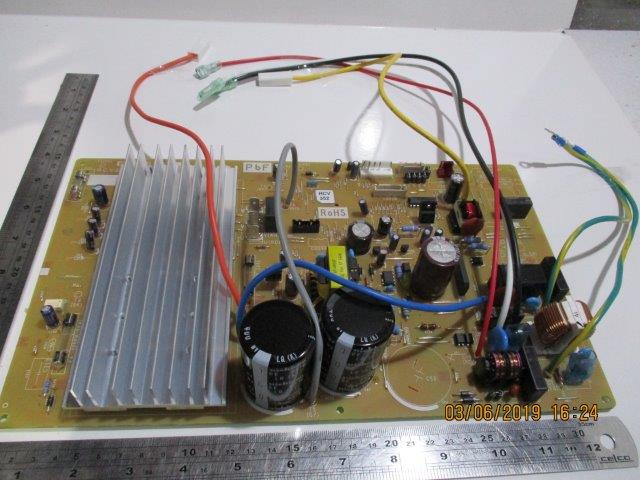

RCV505A351C

PWB

Notes: OUTDOOR PC BOARD Show Image

[24] Contact

RCV011G004A

LABEL.WIRING

Contact

[25] In Stock

SSA561B723

BLOCK,TERMINAL

Show Image

[26] In Stock

SSA551A239A

SENSOR ASSY

Notes: TH2,3,4, SENSOR ASSEMBLY Show Image

[27] In Stock

RCV504A001

WIRING ASSY

Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image

[28] In Stock

SSA564A136

FUSE

Notes: 15A

[29] In Stock

SSA564B088

FUSE HOLDER

Show Image

[30] In Stock

SSA554D173

CORE,FERRITE

[31] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[32] In Stock

SSA554B099A

REACTOR

Notes: AKA TRANSFORMER Show Image

[33] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[34] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[35] Contact

RWC011F016FD

LABEL,MODEL NAME

Contact
