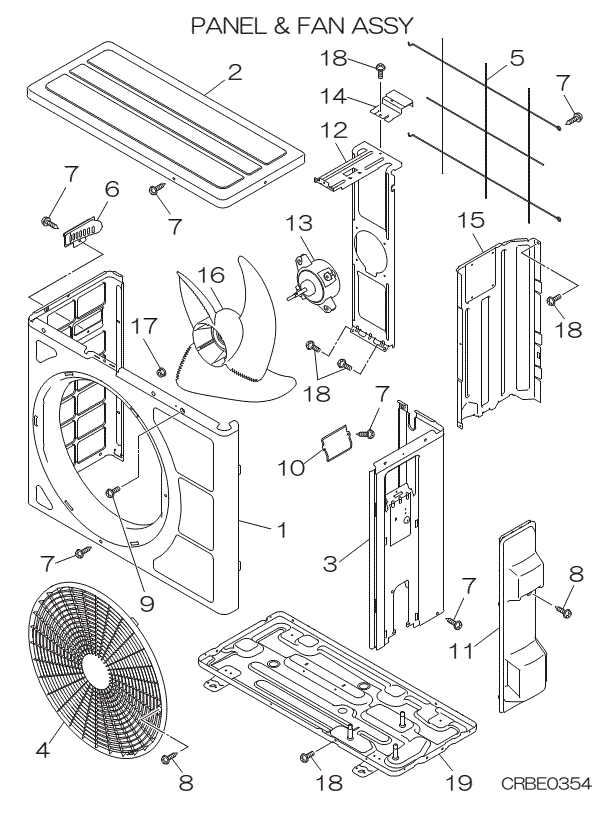

DXC05Z5-S PANEL AND FAN ASSY

DXC05Z5-S PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCW122A002
PANEL, FRONT
[2] In Stock
RCW124A002
PANEL,TOP
Show Image
RCW124A002
[3] In Stock
RCW123A003
PANEL ASSY SIDE (R)
[4] In Stock
RCW435A002
GRILLE AIR OUTLET
Notes: FAN GUARD/FAN GRILLE
[5] In Stock
RCW131A001
GUARD,FIN
[6] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[7] In Stock
SSA913A034F
SCREW,TAP
Notes: 4X8, 1pc ONLY, 4X8 Show Image
SSA913A034F
[8] In Stock
SSA913A034L
SCREW,TAP
Notes: 4X12, 1pc ONLY
[9] In Stock
SSA913A008F
SCREW,TAP
Notes: 4X10, 1pc ONLY, 4X10
[10] In Stock
RCW142A007
COVER(TB)
[11] In Stock
RCW132A002
COVER ASSY,SERVICE
[12] In Stock
RCW116A008
BRACKET ASSY MOTOR
[13] In Stock
SSA512T094
MOTOR,DC
Notes: CONDENSER FAN MOTOR. HAS WIRING HARNESS ATTACHED.
[14] Contact
RCW116A007
BRACKET ASSY
Contact
[15] Contact
RCW141A001A
PLATE,BAFFLE
Contact
[16] In Stock
SSA431B258
PROPELLER
[17] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[18] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[19] In Stock
RCW111A003
BASE ASSY
SKU: DXC05Z5-S PANEL AND FAN ASSY Category:
